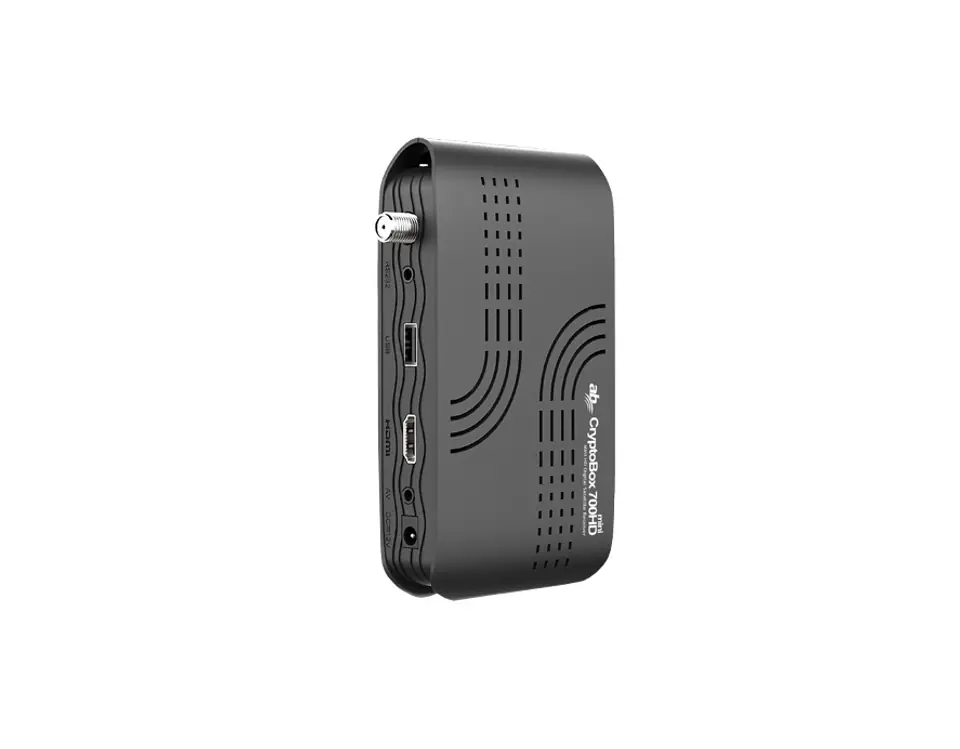

CryptoBox AB 700HD MINI DVB-S2 H.265

€62.67
Shipping from warehouse: ⁨D3⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ab-com
Product code:
8588005998642


The successor of the most successful satellite receivers from the manufacturer AB CryptoBox model 600HD mini.
A combination of a digital satellite receiver and a 1080p Full HD media player.
Ability to watch HD programs, IPTV function, live TV streaming to hardware with iOS and Android software.
Live real-time recording function, programming recording via EPG guide or Timeshift.
Multimedia features: games, FTP downloader, weather forecast, RSS news, stock indices and much more.
FTP Downloader for backup, restore and transfer files from USB or from USB to FTP (settings, software, video, music ...)
The decoder purchased from us has uploaded the latest soft mcas with Internet multimedia along with a list of nc + Decoder channels works very well with cards: nc + (cameleon c+ card), TNK, Smart HD, MTV, XXX cards, all universal cards not paired with other equipment, proven operation with all card splitters available in our offer.
G-MScreen application for Android and iOS devices using the application we can watch live TV, control the receiver, manage the recording of your favorite program. Technical specification:
- Dual-core Chipset: Ali M3521
- Fast DDRIII 256 MB memory
- Flash memory: 8 MB
- IPTV - Internet TV stream
- Android app (for transmisi TV for mobile devices)
- FullHD 1080p resolution
- 1x DVB-S / DVB-S2 Tuner
- 1x CX Card Reader

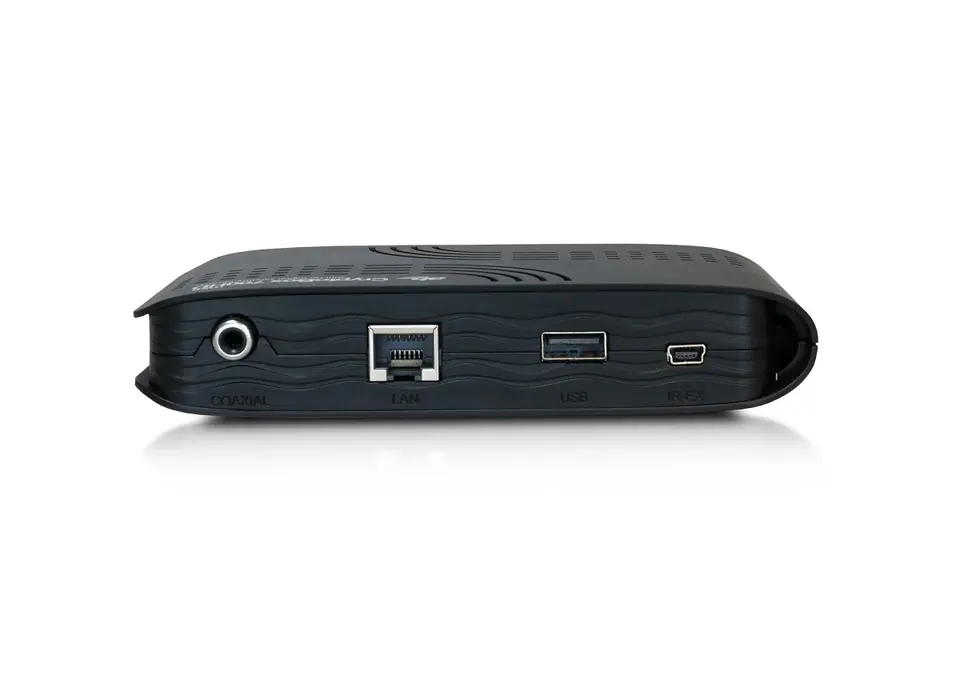

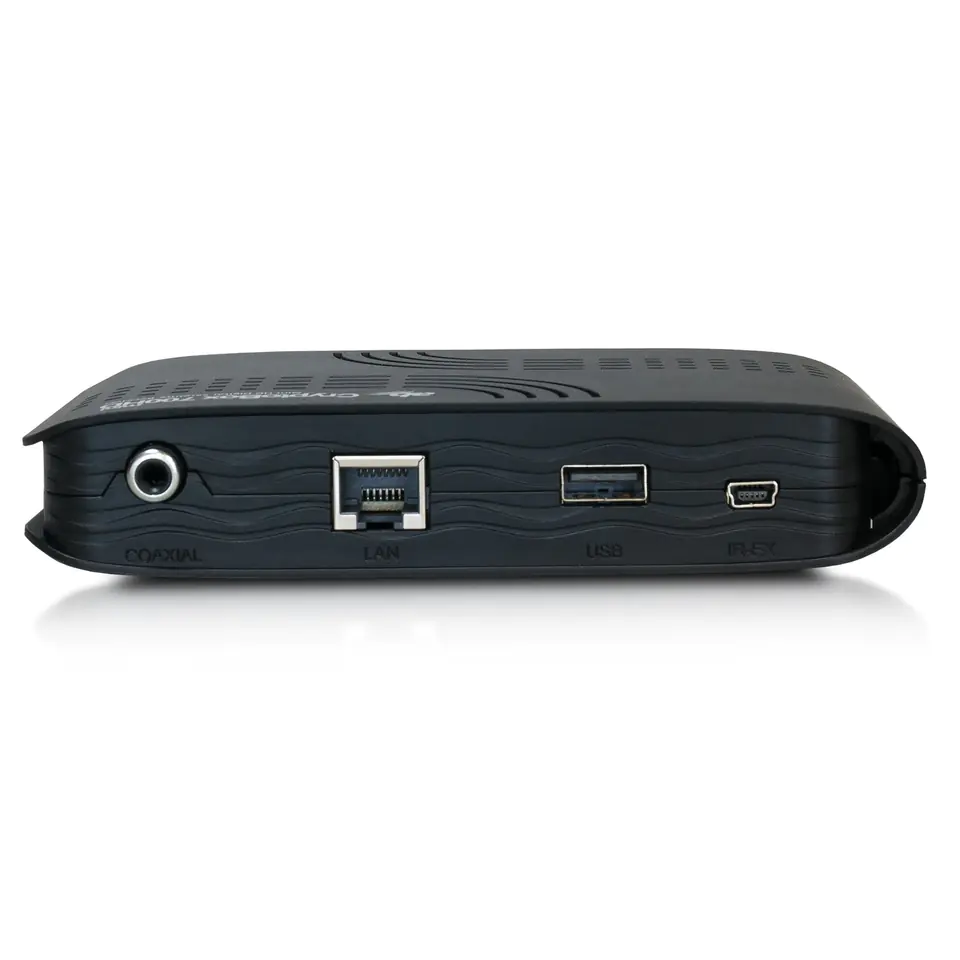

- 1x HDMI port
- 1x RS232
- 2x USB 2.0
- 1x LAN RJ 45
- Signal level -65 to -25 dBm
- LNB power and polarization
- Vertical: + 13 V / + 14 V,
- Levels: + 18V / + 19V
- Power max. 10 watts
- Frequency range 950 MHz to 2150 MHz
- Video resolution 1080i/p, 720p, 576i/p, 480i/p
- DiseqC 1.0 / 1.1 / 1.2 / 1.3 USALS 13V / 18V, 0 / 22K

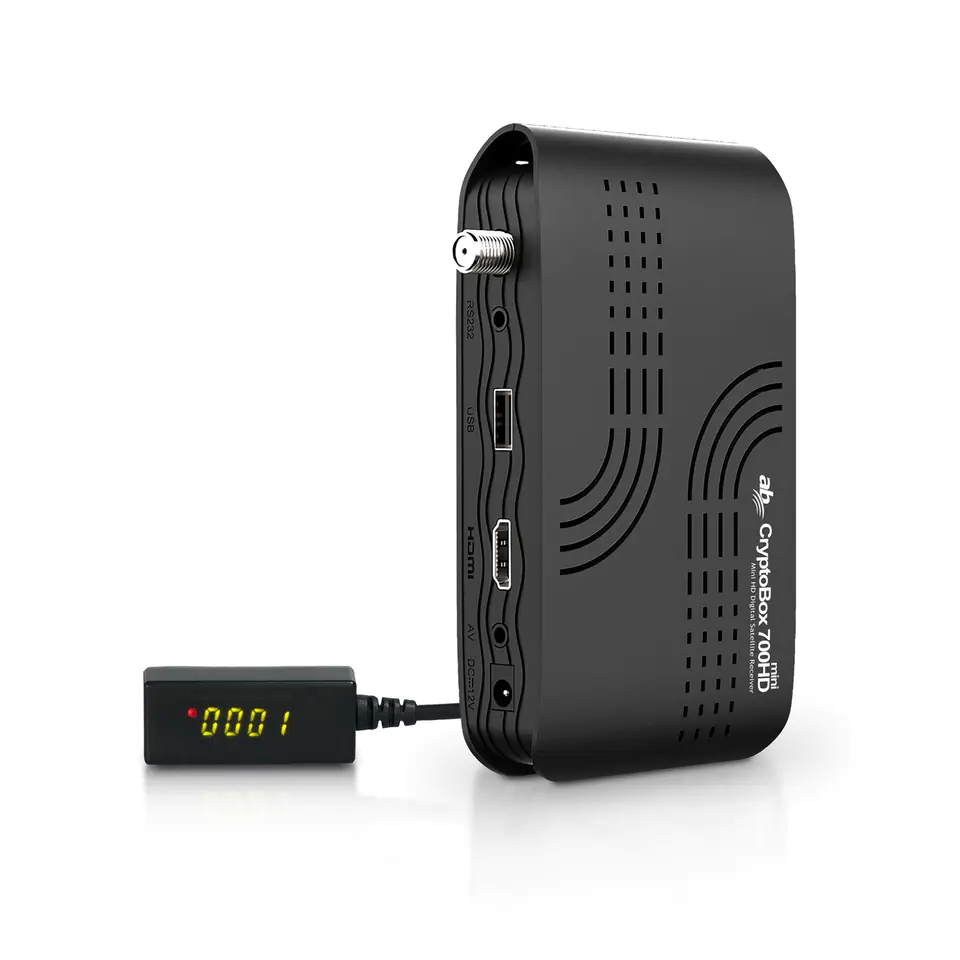

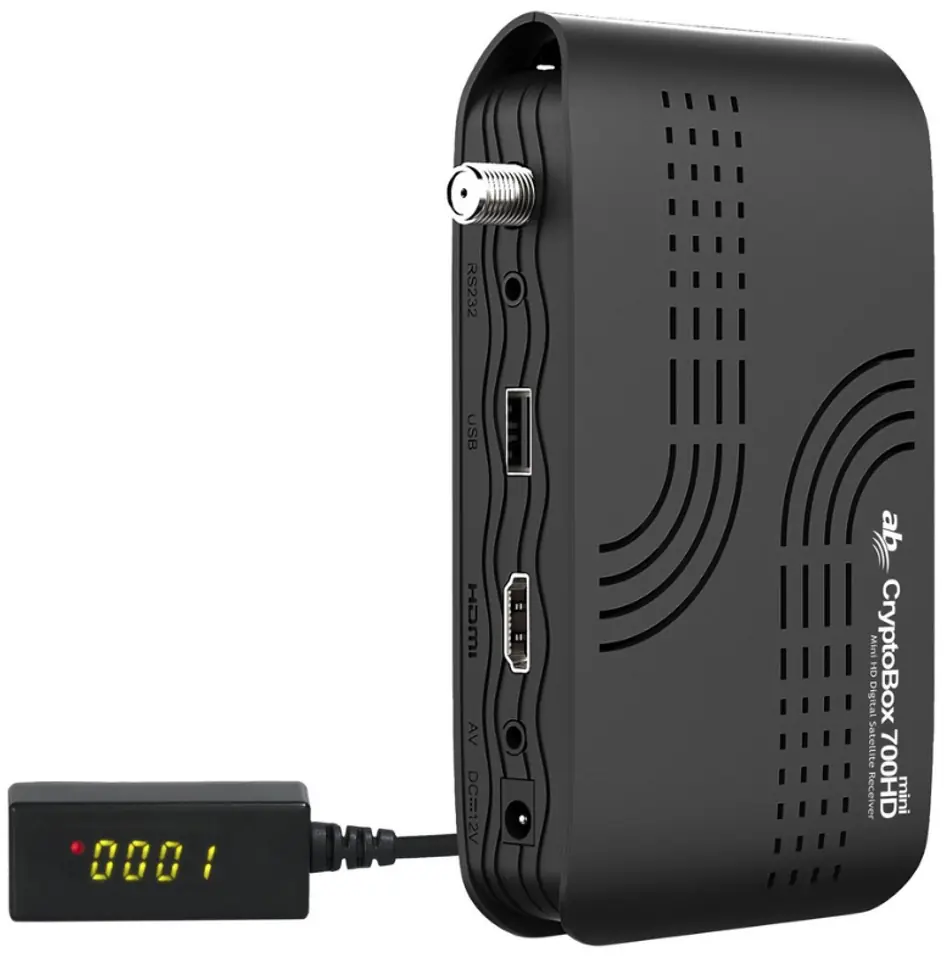

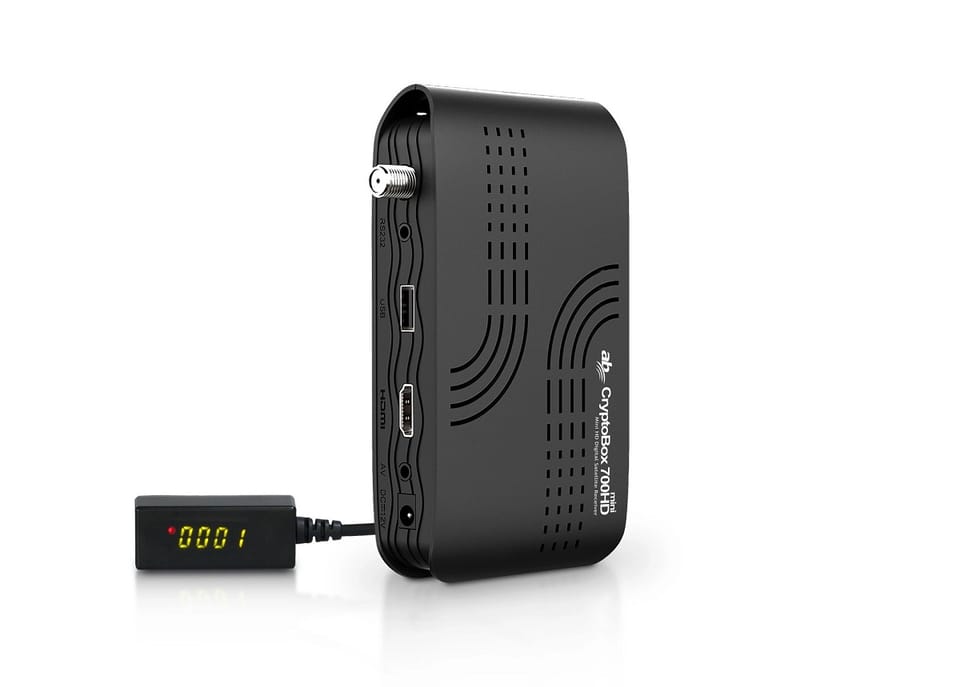

- 7-segment display
- 7-day electronic EPG guide
- Quick scan
- Recording with Time Shift and PVR function
- PIG (Picture in Graphic)
- FTP manager, games, weather, stock market information, network capabilities and much more...
- Automatic PAL/NTSC conversion
- Memory of 8000 TV/radio stations
- 26 favorite TV groups
- FAT32 and NTFS support
- Media player: audio MP3, OGG, FLAC video AVI, MKV, TS, TP, TRP, MPG, MP4 image JPG, BMP, GIF, PNG

DVB-S/S2 tuner:
- Input frequency 950~2150MHz
- Input level -65~-25dBm
- Input impedance 75Ω
- LNB polarization 13V/ 18V / OFF, Imax = 400mA
- Switching LNB 22KHz DiSEq C 1.0 / 1.2
- QPSK demodulation, 8PSK
- FEC 1/2, 2/3, 3/4, 5/6, 7/8
- DVB Standard DVB-S/S2

Other:

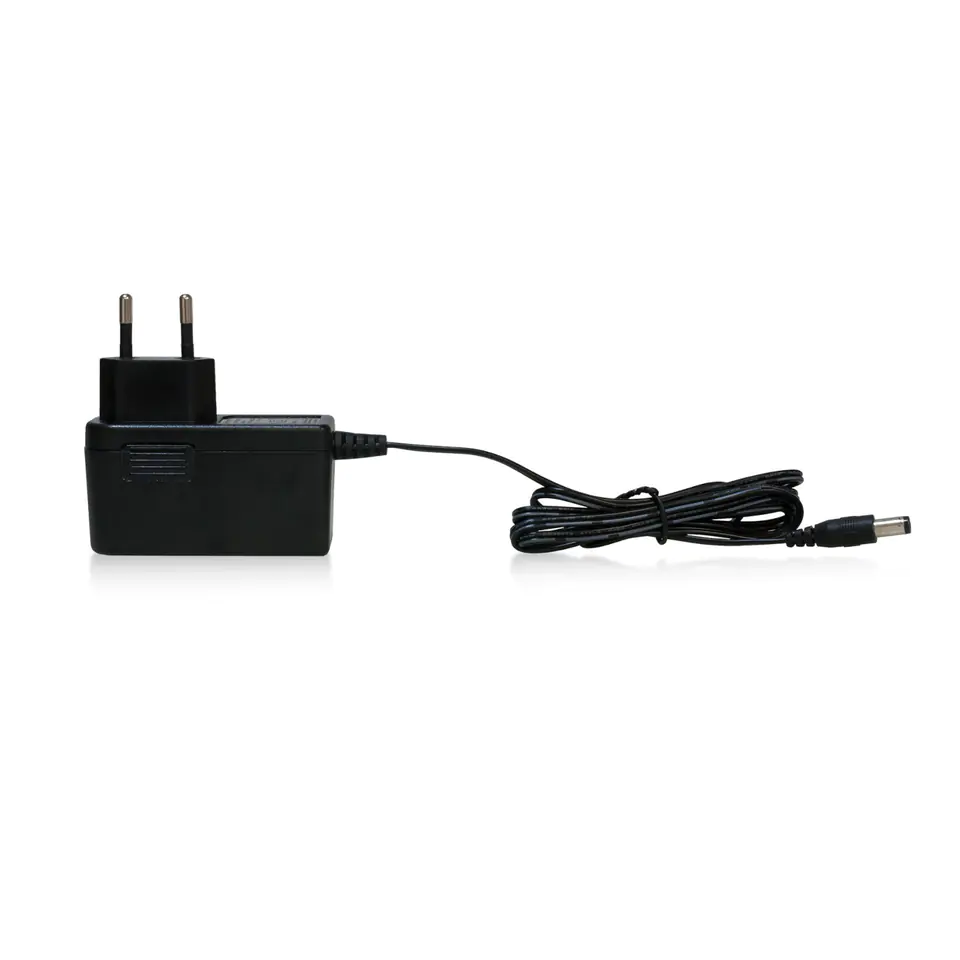

- AC adapter 100 ~ 240V 50/60Hz - 12V
- Power consumption max. 10W
- Operating temperature 0~40°C
 -Dimensions: 142 * 81 * 27mm
- Package dimensions: 245 * 174 * 62mm
- CE, RoHs, EuP LPC,

CryptoBox AB 700HD MINI DVB-S2 H.265

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
