CROSSOVER ZA-106AMS AMS

€13.60

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: ZA-106AMS / 5902887073816

Specification

Case:	Metal - Shielded + Plastic
Dc transition:	.max. 24 V / 250 mA
Dimensions:	90 x 54 x 34 mm
Entrance:	FM: 87 ... 110 MHz - Socket F, VHF/UHF: 174 ... 694 MHz + DC - F socket
Impedance:	75 Ω
Mount:	To the mast
Pass-through attenuation:	1 dB
Producer / brand:	AMS
Scales:	0.09 kg
Selected features:	Built-in >700 MHz filter
Stop damping:	≥ 40 dB
Warranty:	3 years

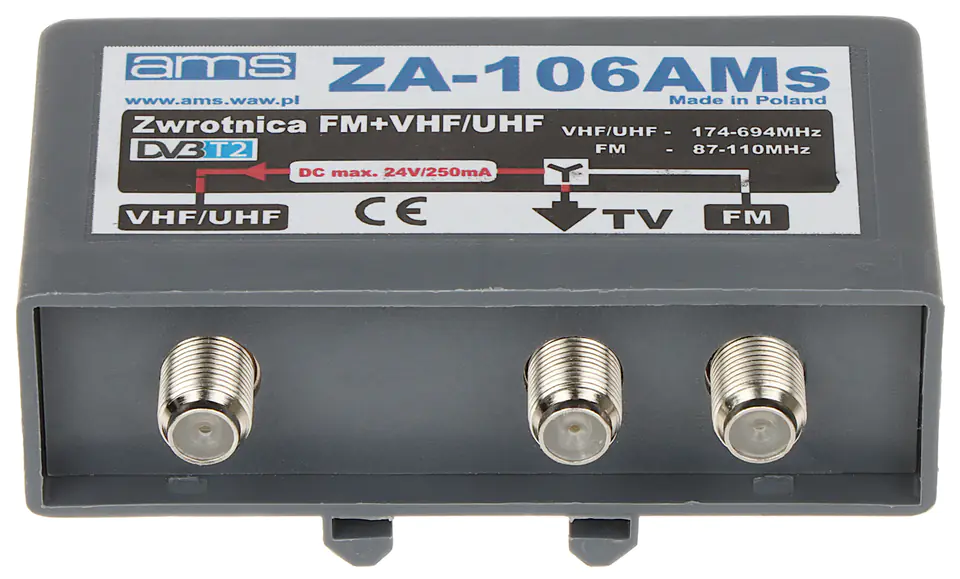

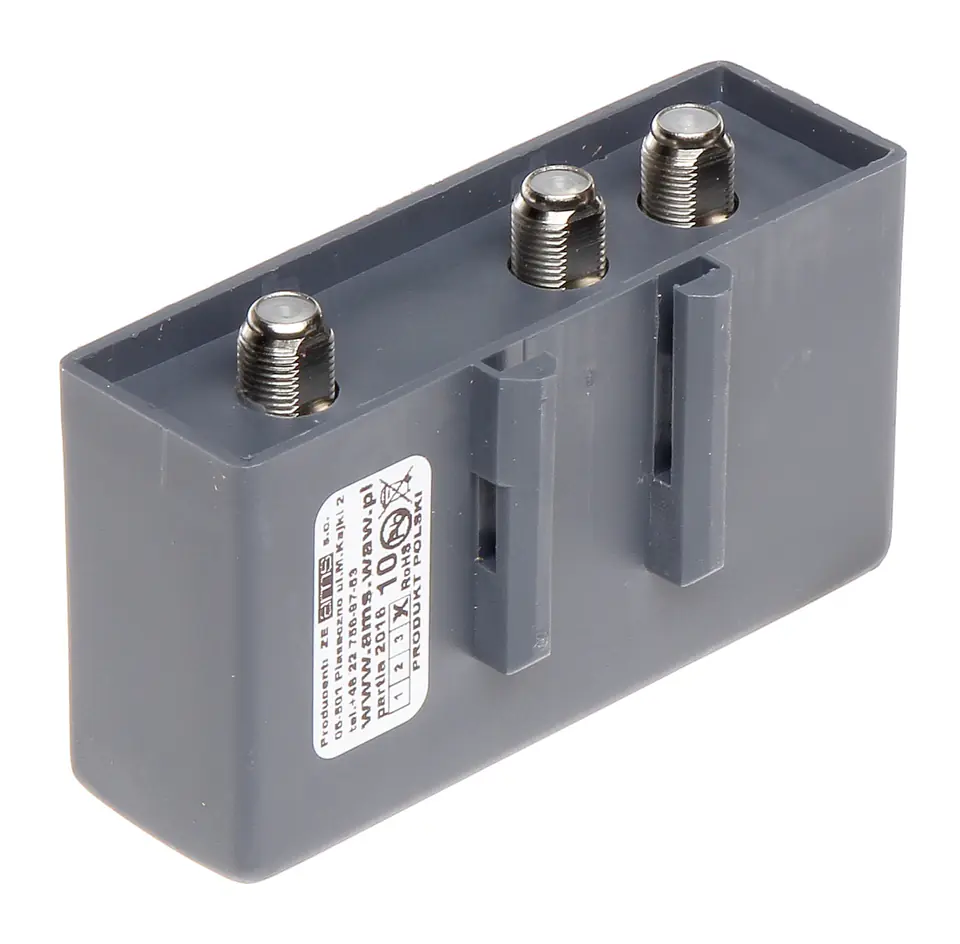

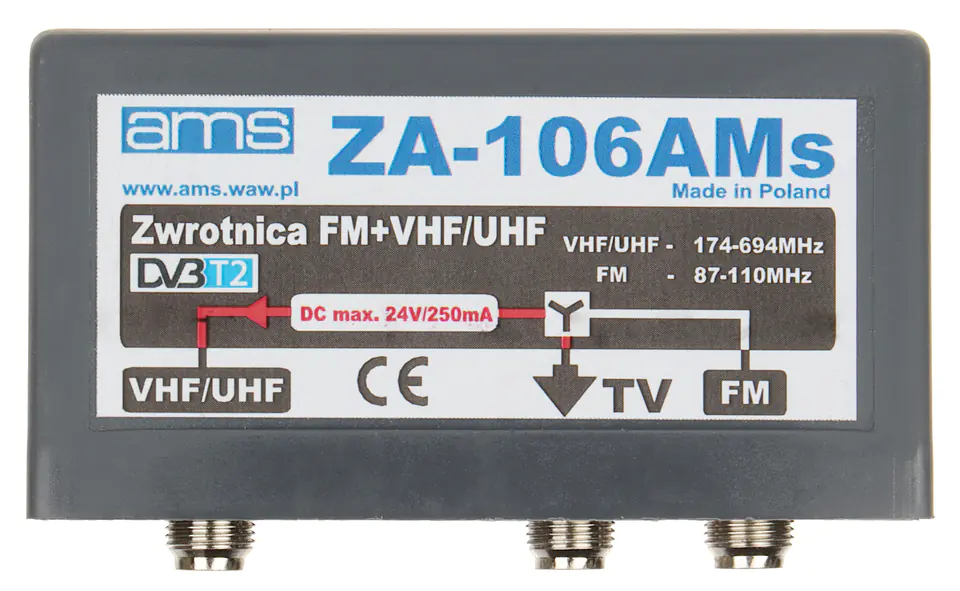

The ZA-106AMS antenna diplexer with 2 inputs is used as an element combining signals from 2 antennas (FM band signals (87...110 MHz) and VHF+UHF band signals (174...694 MHz)), mounted on an antenna mast, near the antenna set

The diplexer is designed to receive local radio and television stations, also in the DVB-T2 systemIt has an additional filter limiting the UHF band above 700 MHz

ZA-106AMS allows you to transmit DC power max. 24V/250mA to power the amplifier mounted in the antenna box (power supply is possible in the VHF/UHF branch)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
