Crossover VHF/UHF ZWR-210DC TELMOR

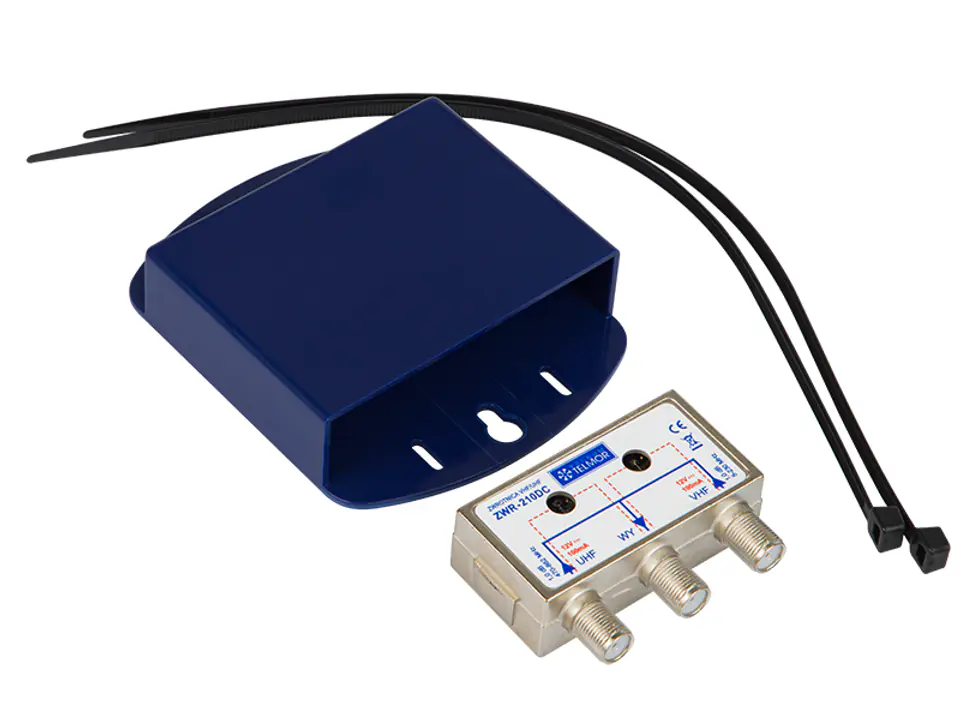

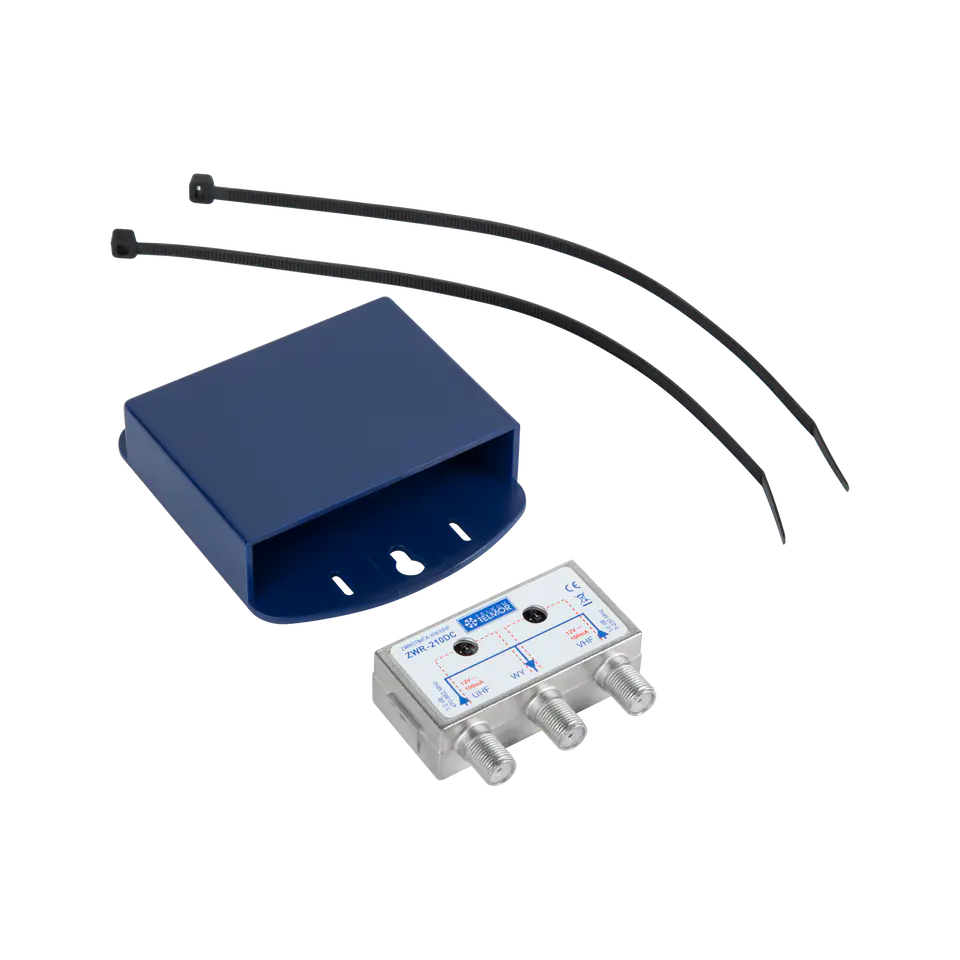

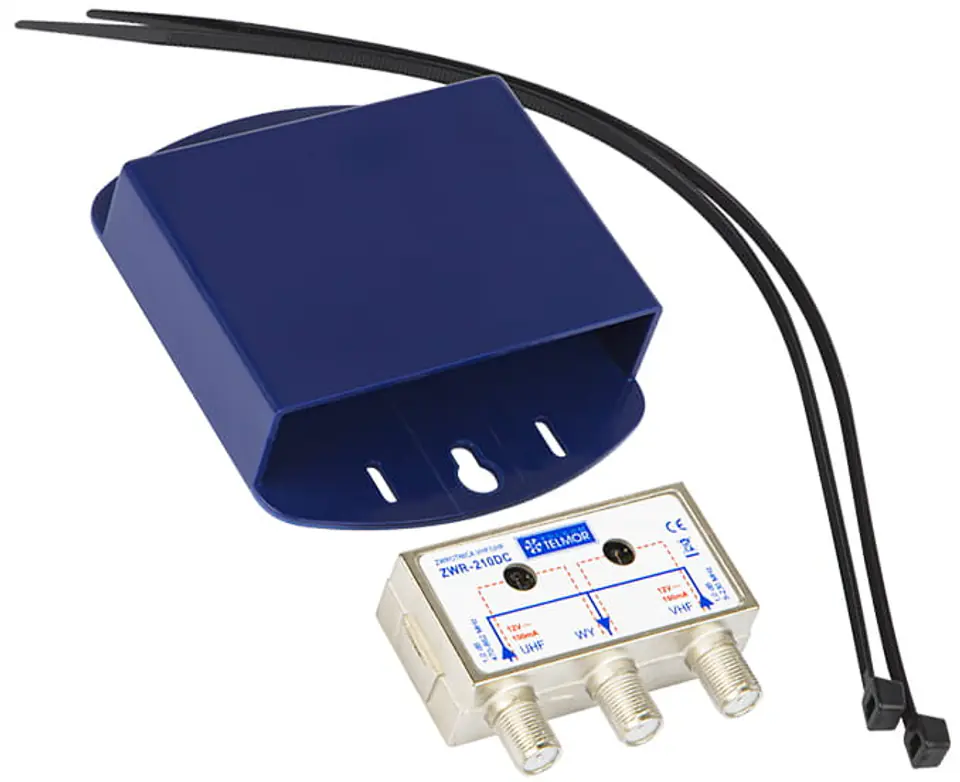

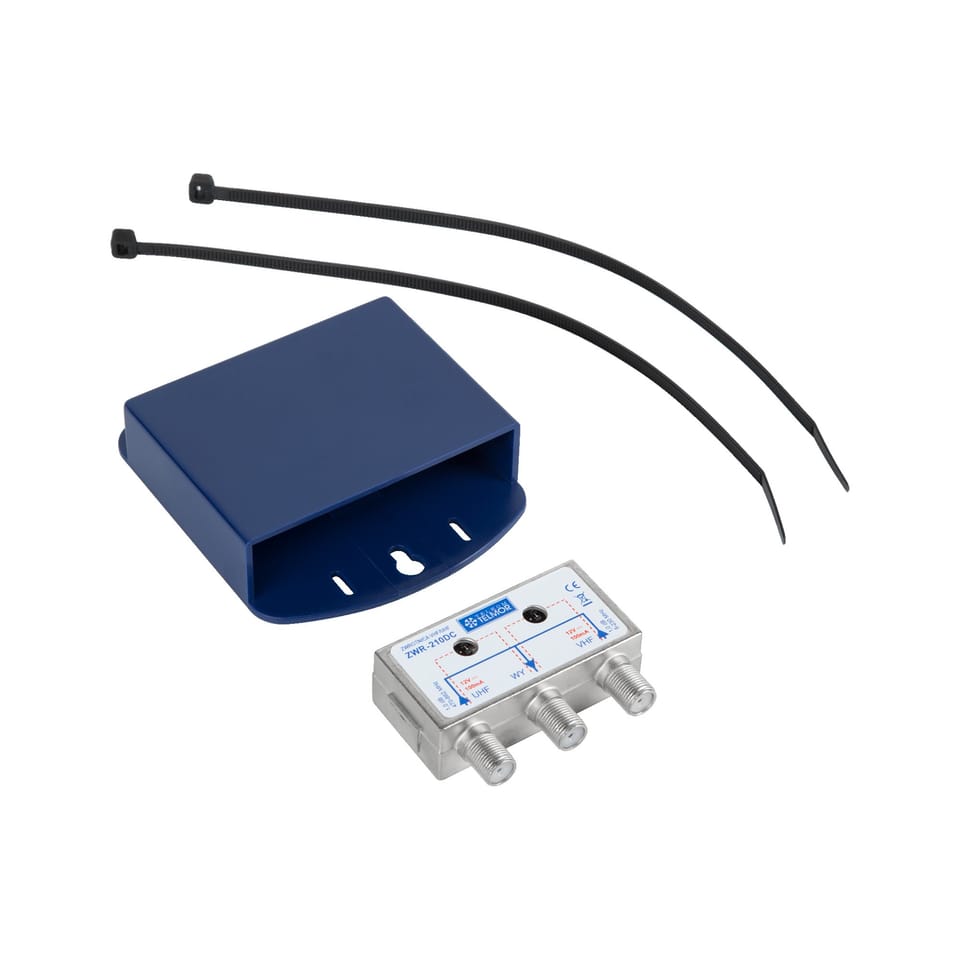

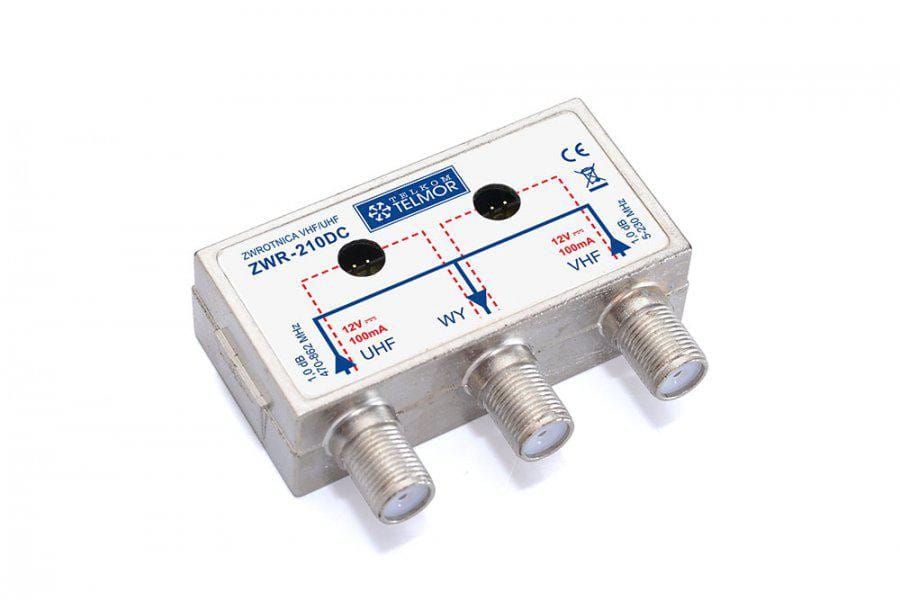

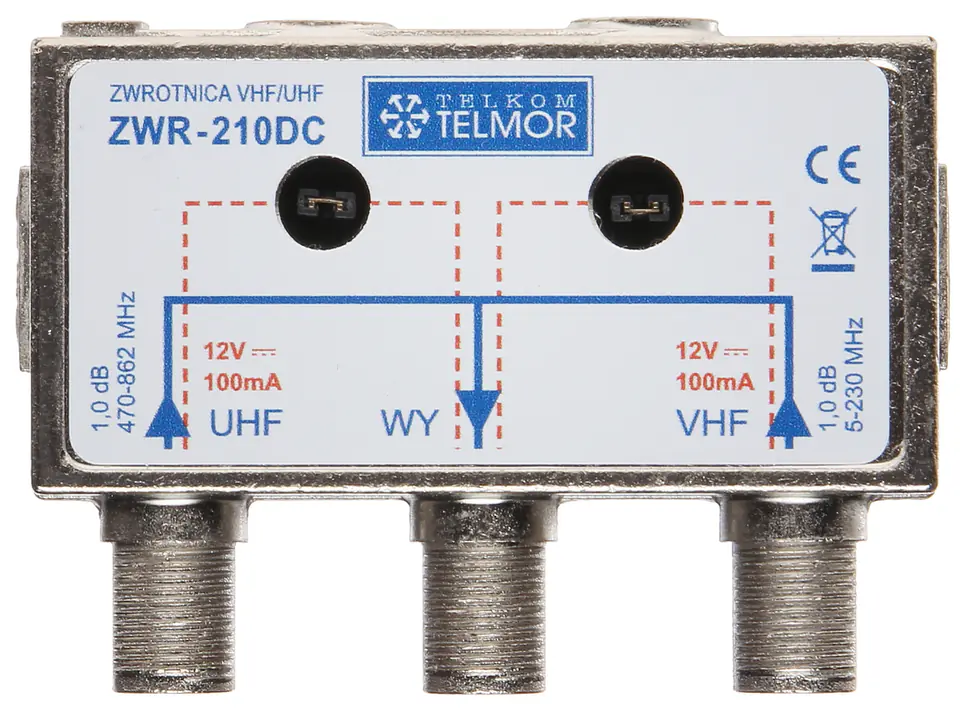

----------Features----------Bandband and operating frequency: FM/VHF (47-230 MHz), UHF (470-790 MHz)Transmission of supply voltage independently to each antenna input and the ability to turn it offVery robust mechanical designCandable on an antenna mast after being placed in a splash-proof housing----------Deal data----------Operating band: FM, VHF, UHFOperating frequency range: 47-230 MHz, 470-790 MHz Input count: 1 (VHF+FM), 1 UHFID outputs: 1DC passes: yesDevice transition shutdown: yesProduct dimensions: 60 x 58 x 19 mm Mast housing dimensions: 85 x 105 x 26 mmNet weight with mast housing: 0.14 kgZWR-210DC is an antenna crossover with two inputs: VHF and UHF and one output. The device is used to sum signals from VHF and UHF TV antennas. The crossover provides the transfer of supply voltage from the input to the VHF and UHF outputs, allowing power to the antenna preamplifiers. To do this, a jumper should be placed in the correct pin strip, accessible through one of the holes in the housing. If the crossover works with passive antennas, the armatures should be completely removed from the contact strips. The ZWR-210DC crossover can be mounted on the antenna mast after it has been placed in an MSA type housing (splash-proof cover in the photo next to it).
