CROSS LASER GLL 3-80

Specifications:

Laser diode: Line: 630 - 650 nm, < 10 mW
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range: up to 30 m
Operating range with receiver: up to 120 m
Operating range without receiver, value: up to 30 m
Levelling accuracy: +/– 0.3 mm/m*/** (*at four intersection points **plus additional deviation depending on application)
Auto-leveling range: ± 4°
Levelling time: 4 s
Protection against dust and water: IP 54
Power supply: 4 x 1.5V LR6 (AA) batteries
Max. runtime: 4 h in 3-line mode
Tripod thread: 1/4", 5/8"
Weight, Approx.: 0.82 kg
Laser beam color: red
Projection: 3 360° lines
Compatible laser receivers: LR 6+7
Mailing recipient segment: Metal, Stone, Wood.



Cross laser GLL 3-80

The new standard of visibility: 3 x 360° lines
Powerful LEDs for excellent visibility
3 x 360° lines allow simultaneous horizontal and vertical applications to increase work efficiency

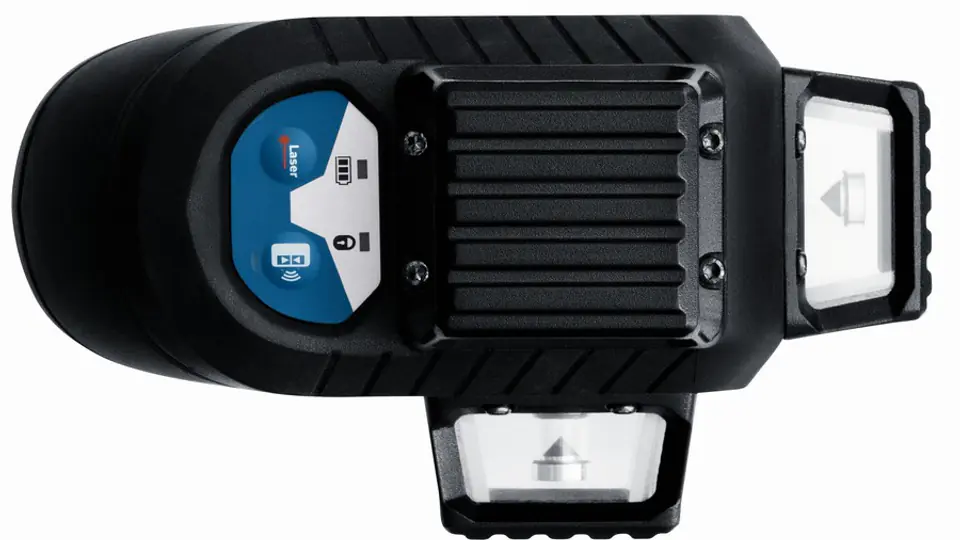

The intuitive user interface offers easy operation.

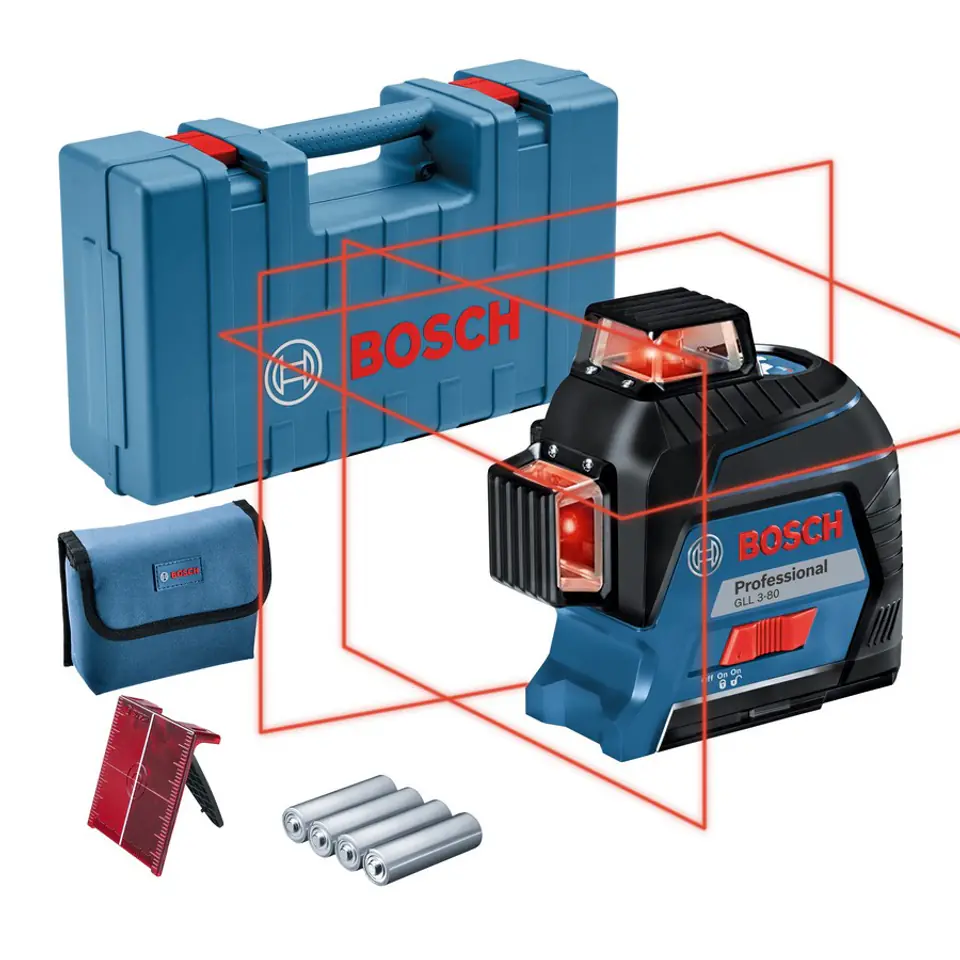

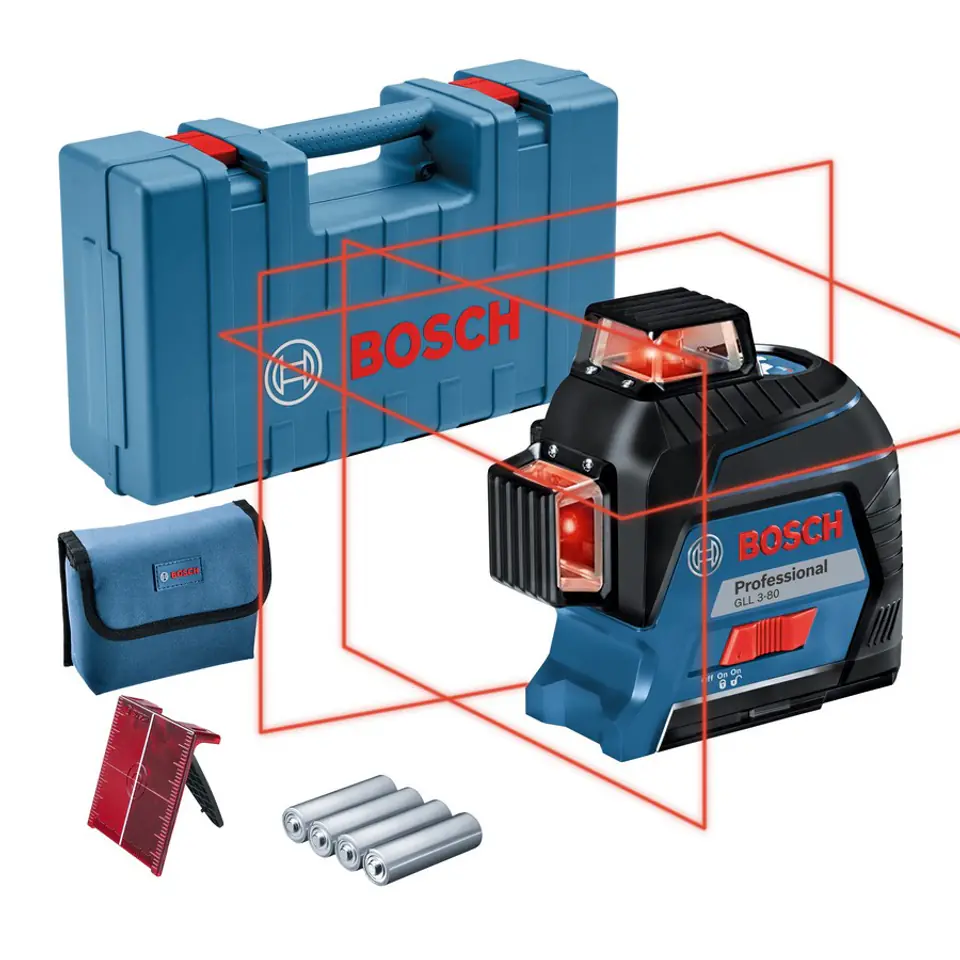

4 x 1.5V LR6 (AA) batteries
Laser sight board
Handbag
Tool case

**

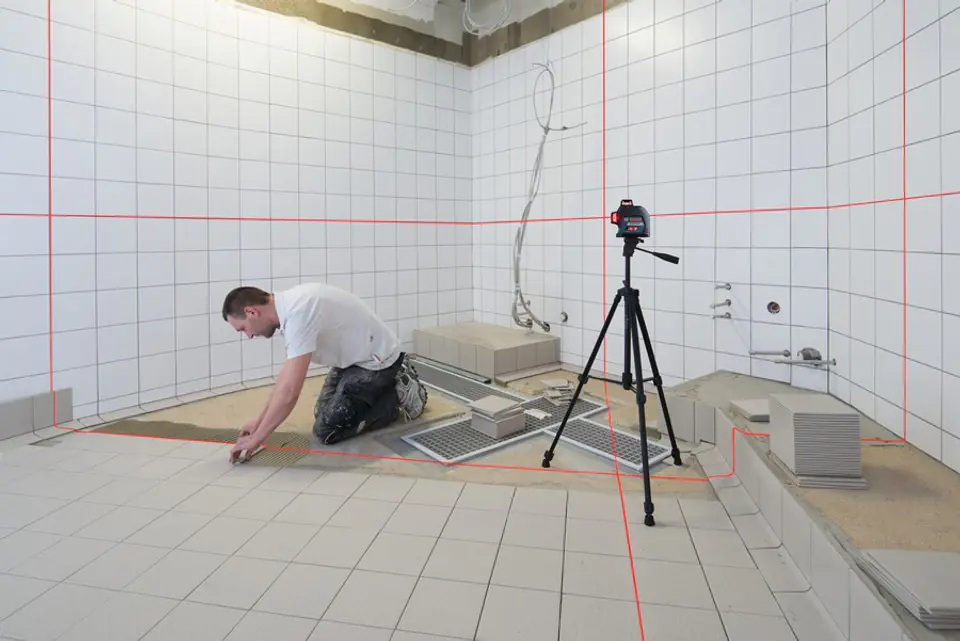

Illustrative photos
