Specifications
Laser diode630 – 650 nm, < 1mW
Operating temperature-10 – 50 °C
Storage temperature-20 – 70 °C
Laser class2
Working range10 m
Leveling accuracy± 0.3 mm/m
Operating range, crossed lines10 m
Automatic leveling range± 4°
Leveling time4 s
Protection against dust and waterIP 54
Power supply3 LR6 (AA) 1.5V batteries
Max. operating time6 h in cross and point mode
8 h in cross mode
12 h in linear and point mode
16 h in linear mode
22 h in point mode
Tripod thread1/4", 5/8"
Weight, approx. 0.49 kg
Length130 mm
Width83 mm
Height162 mm
Color of the laser beamred

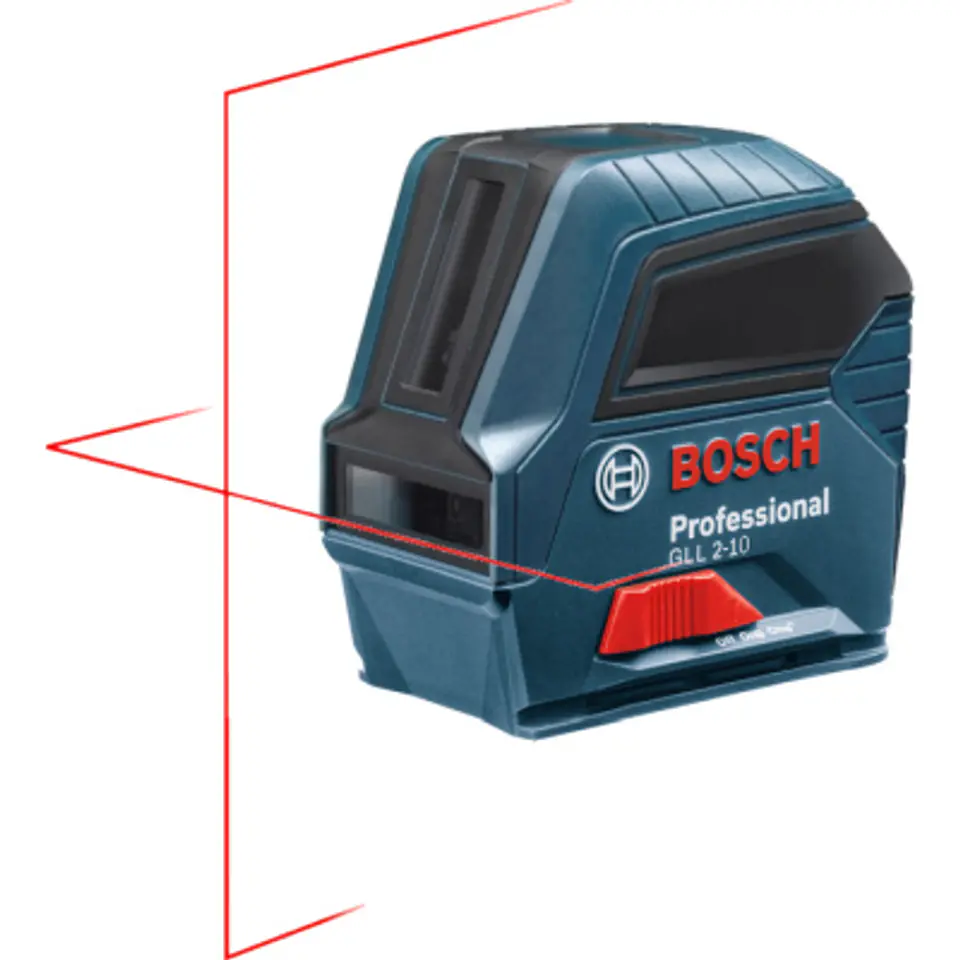

Projection2 lines
Laser lines horizontally and vertically
Durability thanks to protection class IP 54
Flexible use thanks to the RM 1 Professional swivel multifunction mount for laser line positioning and multiple attachment positions
Pendulum mechanism lock for safety during transport
Easy one-handed operation and intuitive user interface
Tripod thread 1/4" and 5/8"
Automatic horizontal and vertical levelling in the range of ±4°
Equipment:
3 X LR6AA batteries
Manufacturer's certificate
Cover
