Specifications
Laser diode630 – 650 nm, < 1mW
Operating temperature-10 – 50 °C
Storage temperature-20 – 70 °C
Laser class2
Working range15 m
Leveling accuracy± 0.3 mm/m
Max. working range of laser points10 m (top)
10 m (bottom)
Automatic leveling range± 4°
Leveling time4 s
Protection against dust and waterIP 54
Power supply3 LR6 (AA) 1.5V batteries
Max. operating time6 h in cross and point mode
8 h in cross mode
12 h in linear and point mode
16 h in linear mode
22 h in point mode
Tripod thread1/4", 5/8"
Weight, approx. 0.33 kg
Length130 mm
Width83 mm
Height162 mm
Color of the laser beamred
Projection2 lines / 2 points
Accuracy of perpendicular points± 0.7 mm/m
Horizontal and vertical laser lines and two centered vertical points for optimal visibility
Ability to position laser lines around centered vertical points
Flexible use thanks to the RM 1 Professional swivel multifunction mount for laser line positioning and multiple attachment positions
Other advantagesLocking of the pendulum mechanism ensures safety during transport
Easy one-handed operation and intuitive user interface
Selectable linear or point mode
Automatic horizontal and vertical levelling in the range of ±4°

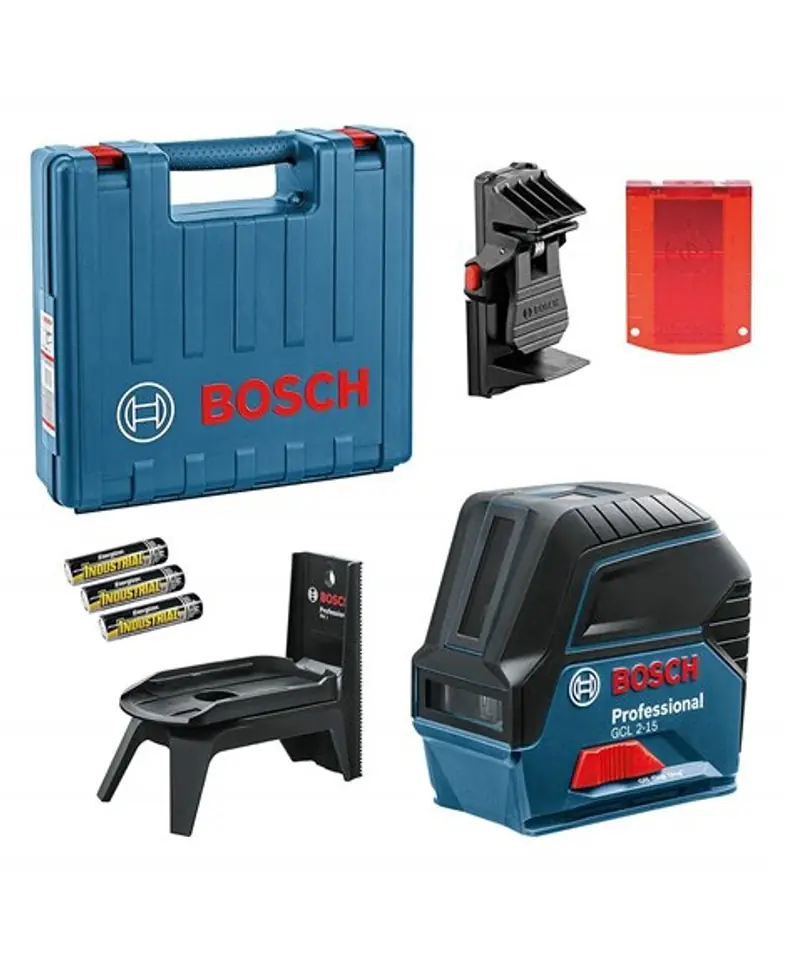

Equipment:
3 x 1.5V LR6AA batteries
Cover
RM 1 Professional0 601 092 600
Sight shield
Tool case1 608 M00 C1R
Filling1 608 M00 C1S
Ceiling clamp
