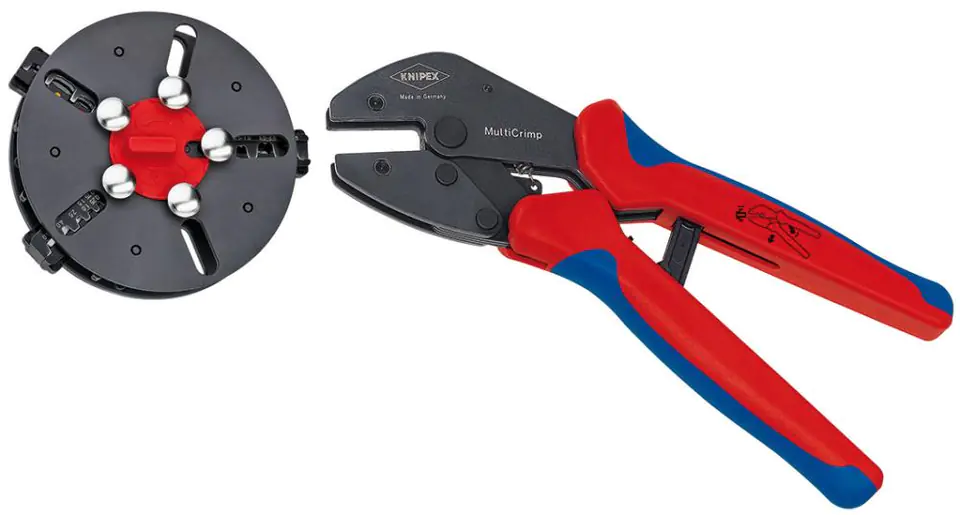

Crimping pliers with MultiCrimp® interchangeable magazine, with three crumple profiles
Execution: all parts subjected to loads are made of electrotechnical chrome-vanadium steel of special quality, oil-hardened and tempered. Head oxidized. Multi-component plastic handle for one- or two-handed operation. Reliable and contamination-free storage of spare parts in a special magazine with a belt clip. High quality clamping terminals thanks to precise profiles and forced locking. Replacement of clamping profiles does not require the use of tools. Precisely set crimping pressure. Side processing.
Application: pliers and quick change magazine for typical crimping pliers requirements with different profiles. Versions with 3 or 5 crimping profiles to choose from.
Wire cross-section:

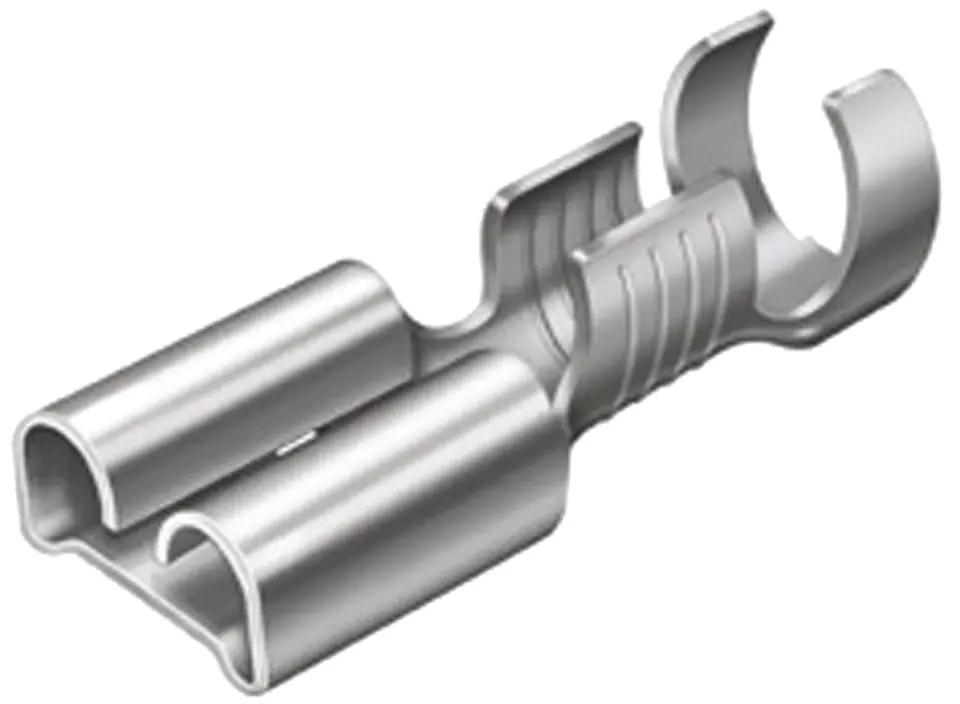

0.50 to 6.0 mm2, non-insulated, open plug connectors

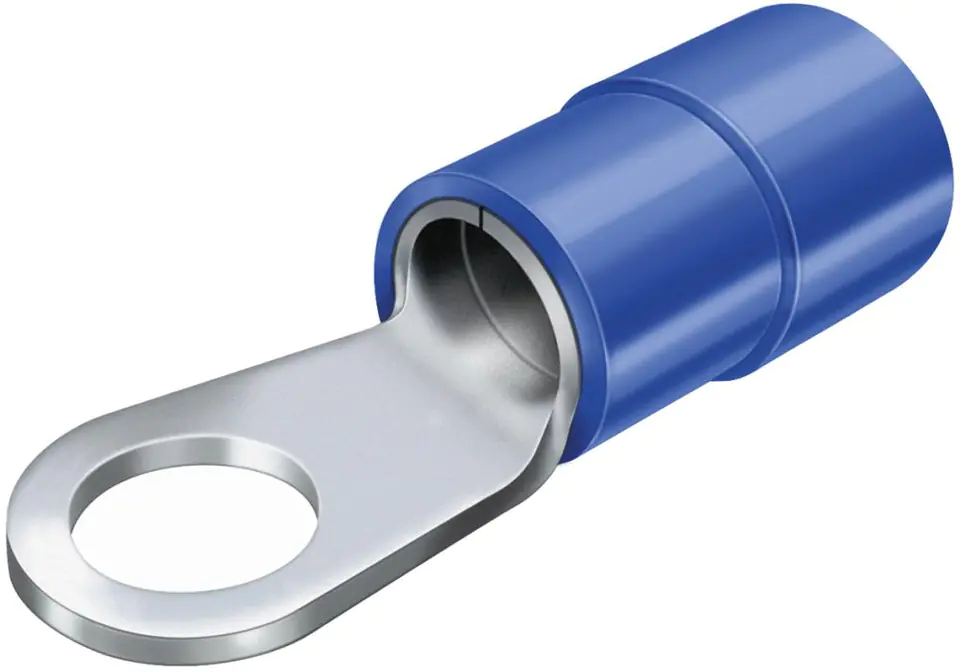

0,50 - 6,0 mm2, insulated cable terminals and plug-in fittings and sleeve cable fittings

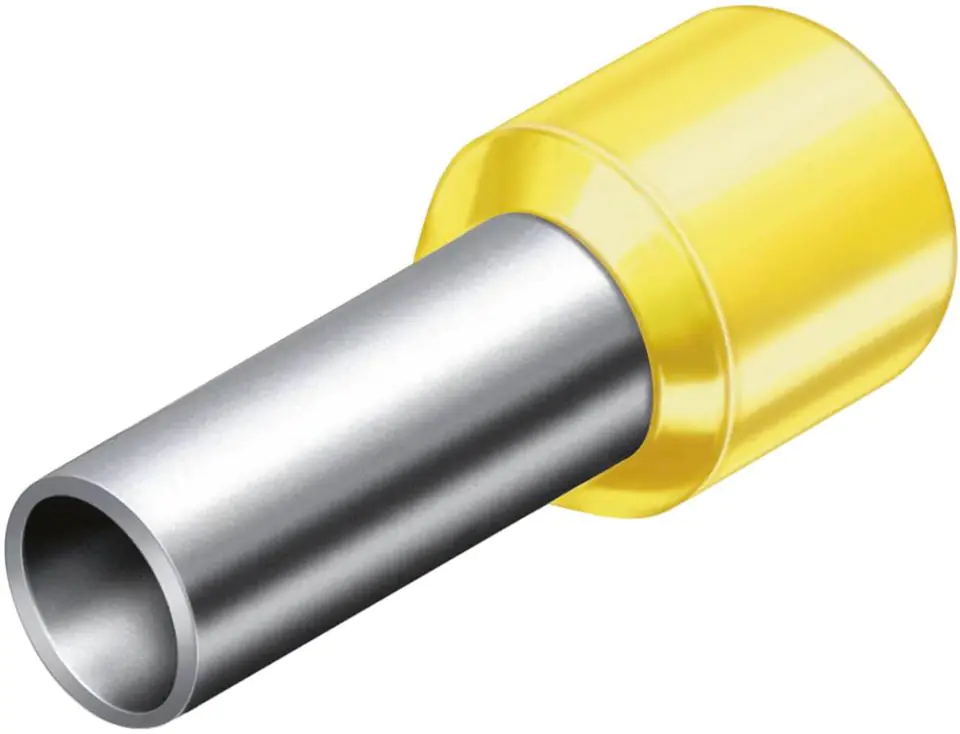

0,25 - 6,0 mm2, cable sleeves Wire cross-section:
0.50 to 6.0 mm2, non-insulated, open plug connectors
0,50 - 6,0 mm2, insulated cable terminals and plug-in fittings and sleeve cable fittings
0,25 - 6,0 mm2, cable sleeves
