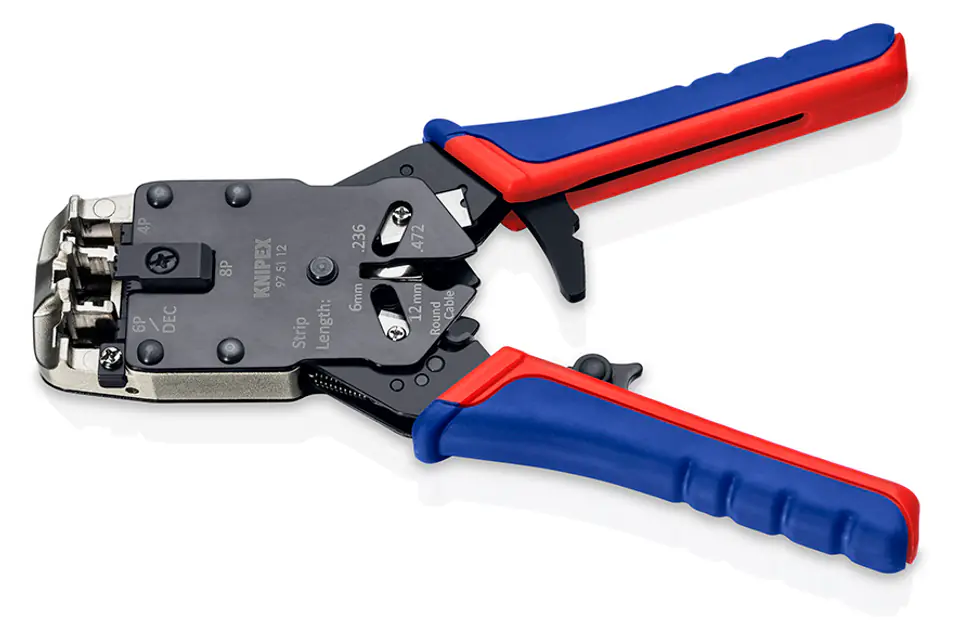

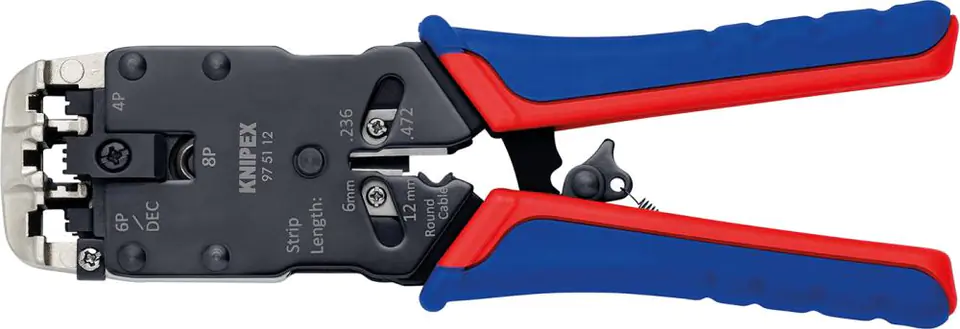

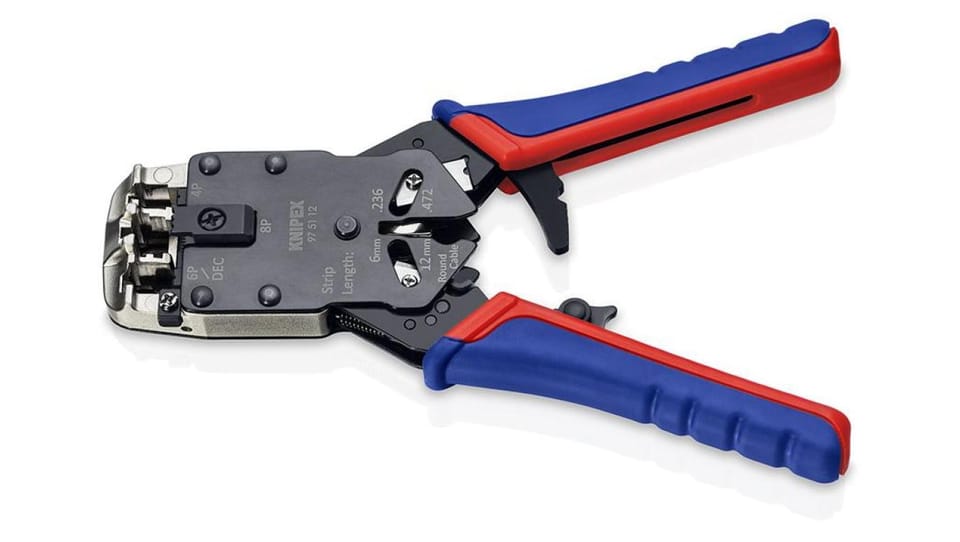

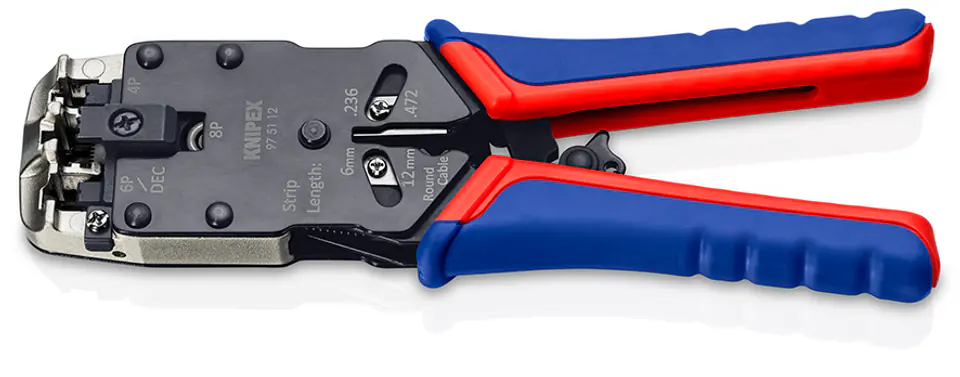

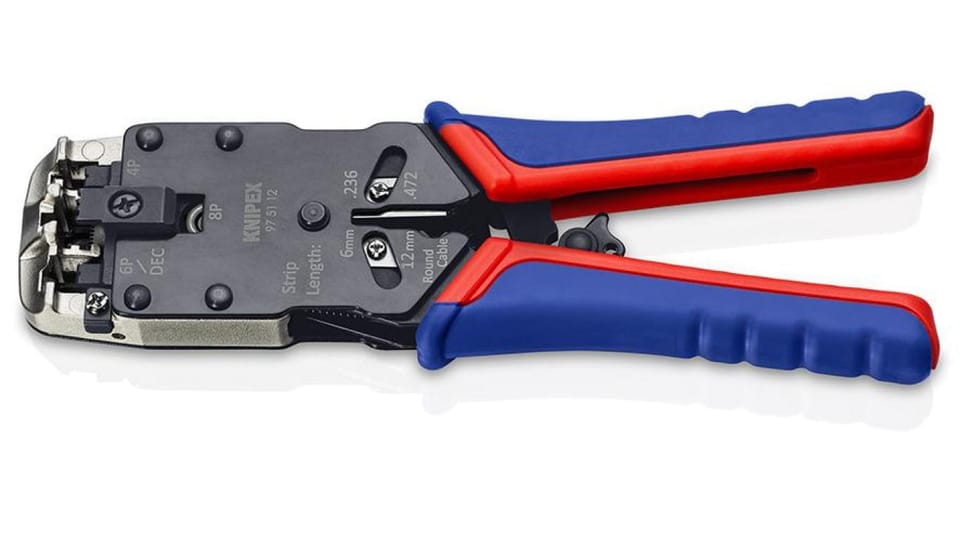

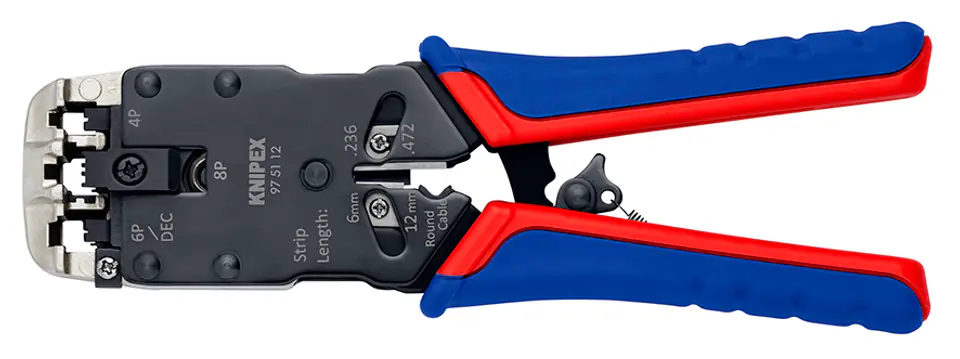

CRIMPING PLIERS FOR RJ 10/11/12/45 PLUGS

Specifications:

Article number: 97 51 12
EAN: 4003773043188
Pliers: oxidized
Handles: with multi-component handles
Weight: 533 g
Dimensions: 200 x 63 x 18 mm
Reach: No
RohS: No
Capacity: RJ 10 (4-pole) 7.65mm RJ 11/12 (6-pole) 9.65mm RJ 45 (8-pole) 11.68mm
Number of clamping positions: 3
Application range: Western plugs



Improved opening mechanism: the proven pliers now clamp even better!
Improved opening mechanism, optimized design, less weight

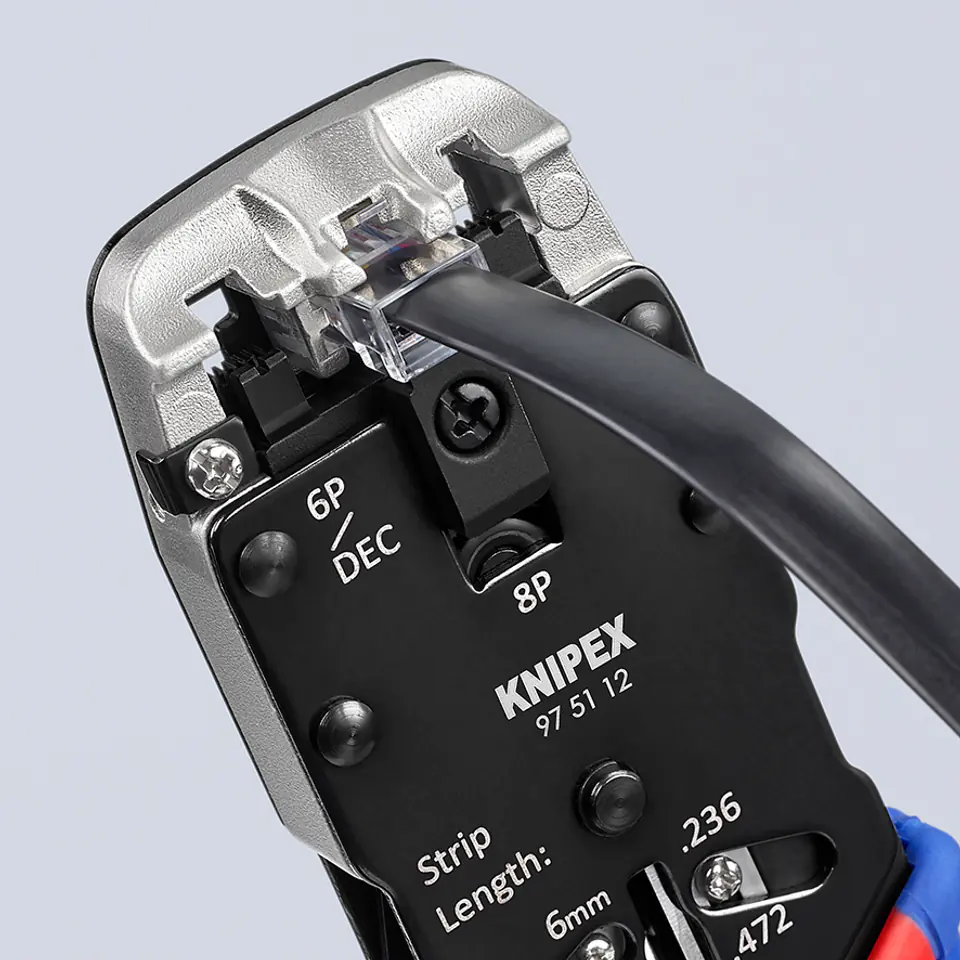

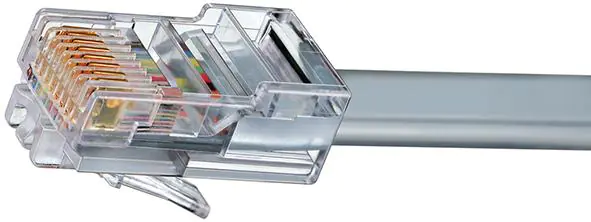

Can be used for crimping 4-, 6- and 8-pin western plugs

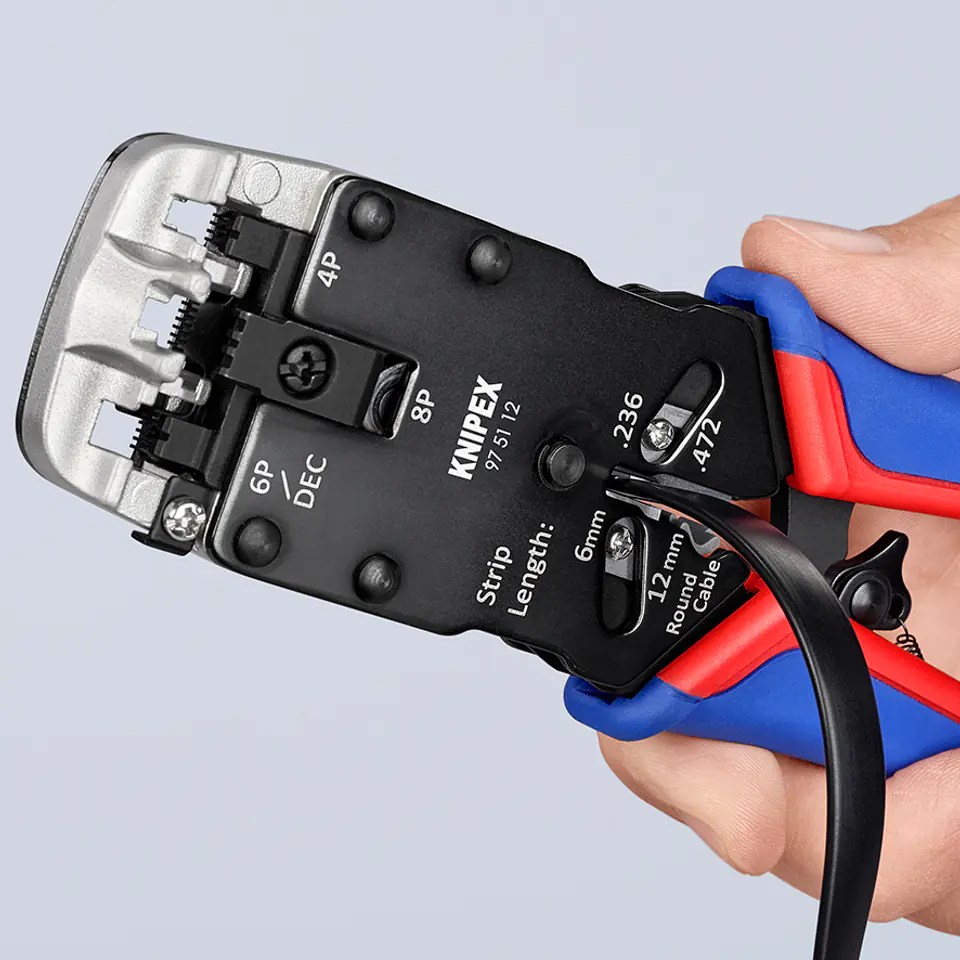

For cutting and stripping unshielded telephone ribbon cables
Precise clamping process due to parallel clamping
Repeatable, high clamping quality thanks to integrated lock (self-releasing mechanism)
Optimal power transfer thanks to leverage to reduce fatigue
For Western RJ 10 (width 7.65 mm), RJ 11/12 (width 9.65 mm) and RJ 45 (width 11.68 mm) plugs

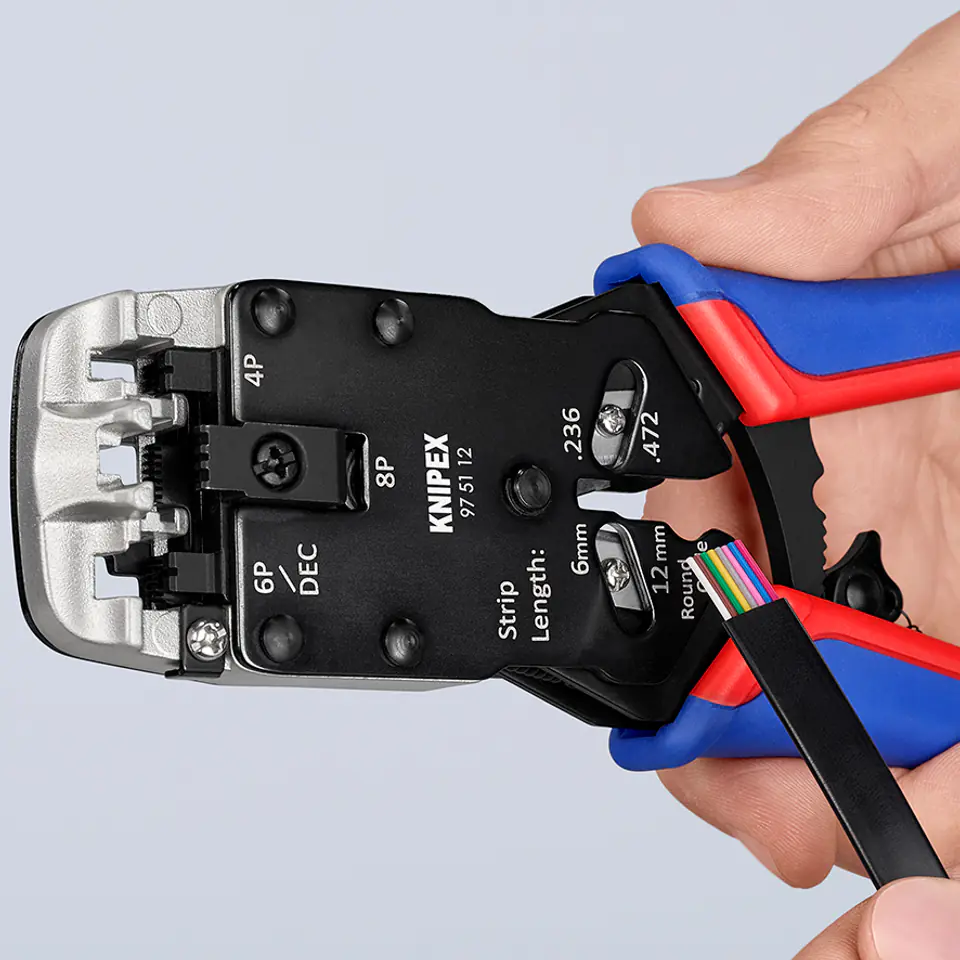

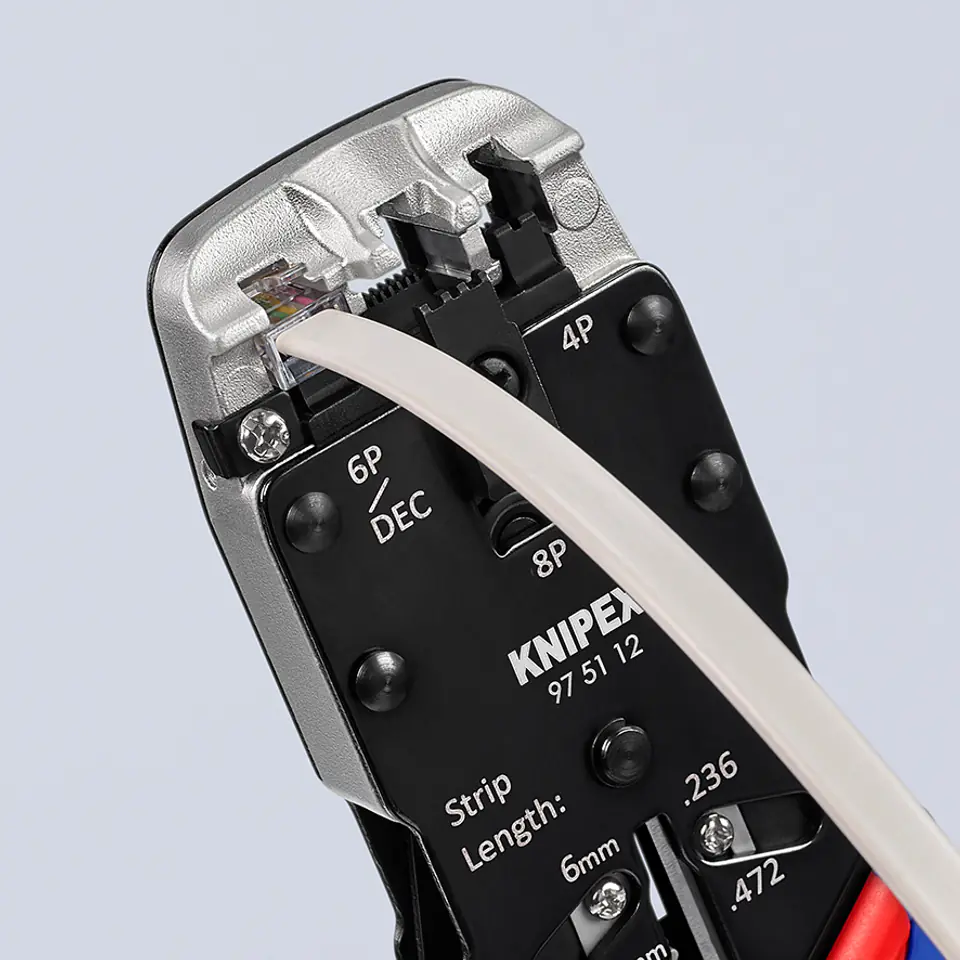

With length cutter and stripping knife for 6 and 12mm cables
Blackened head, handles with two-colour multi-component caps

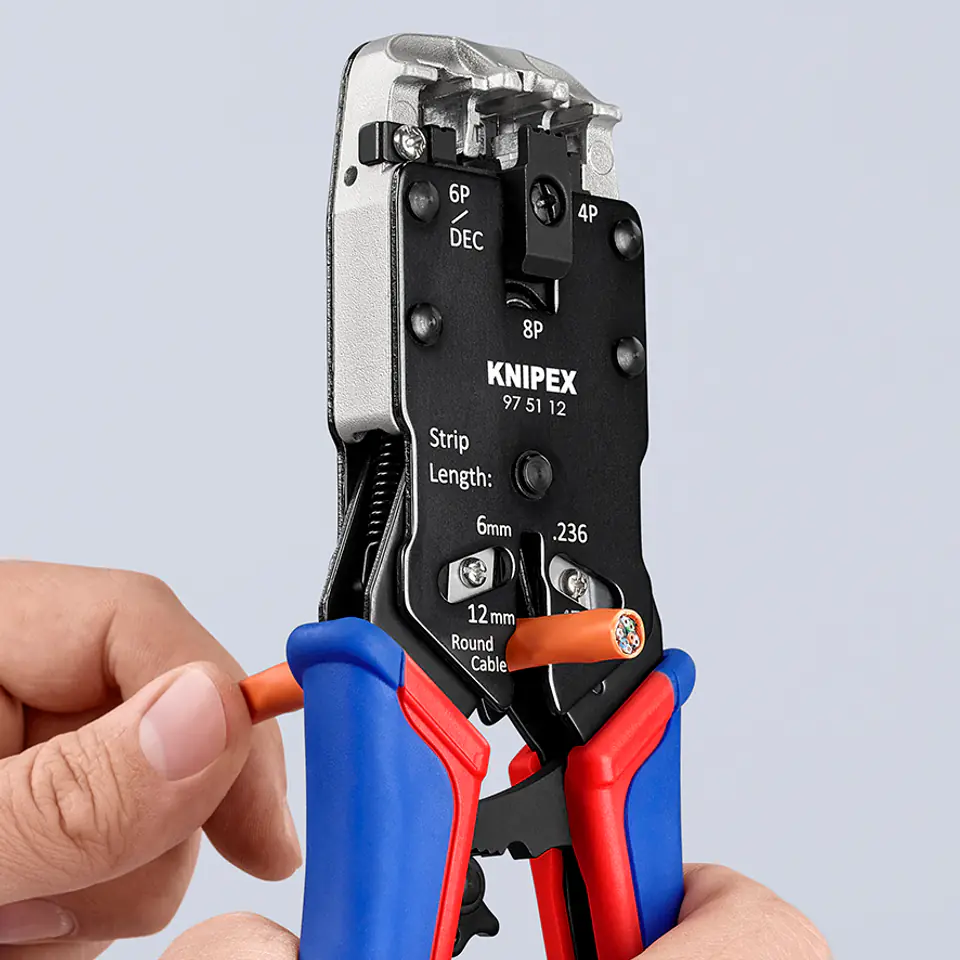

With additional device for stripping insulation from round cables
Special quality chrome vanadium electric steel, oil hardened

**

Photos are for illustrative purposes.
