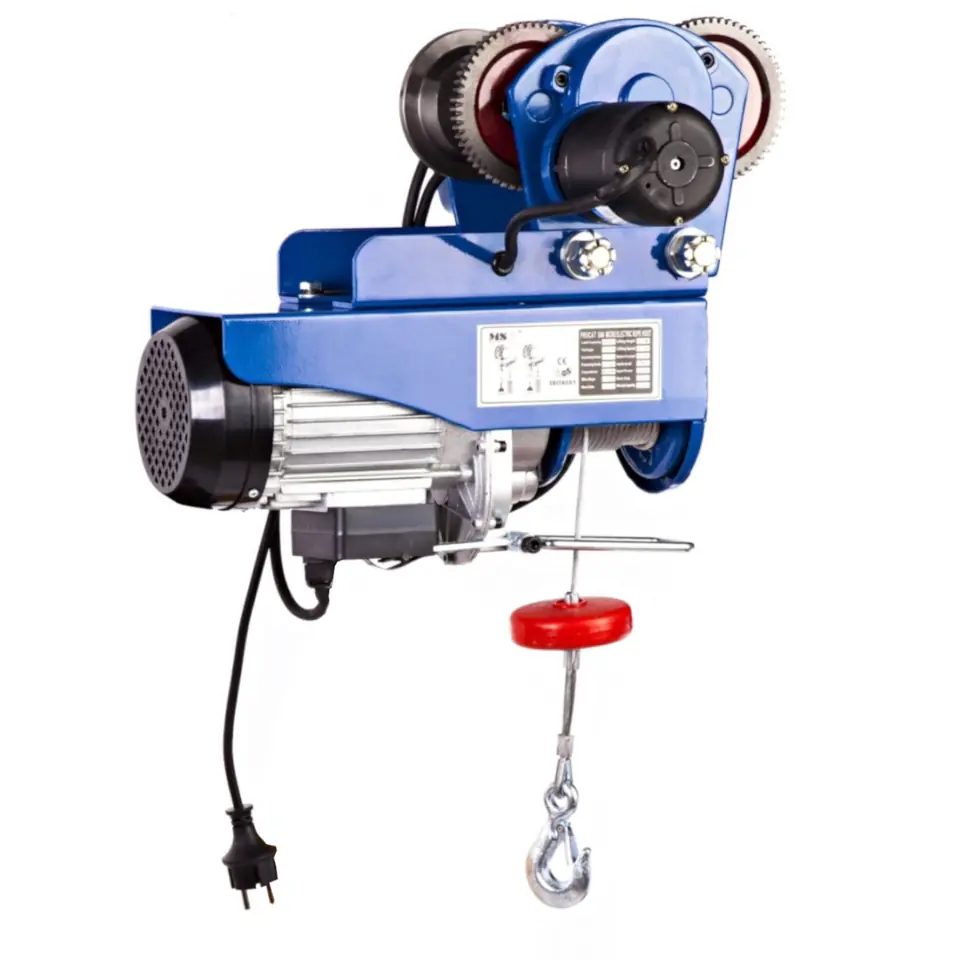

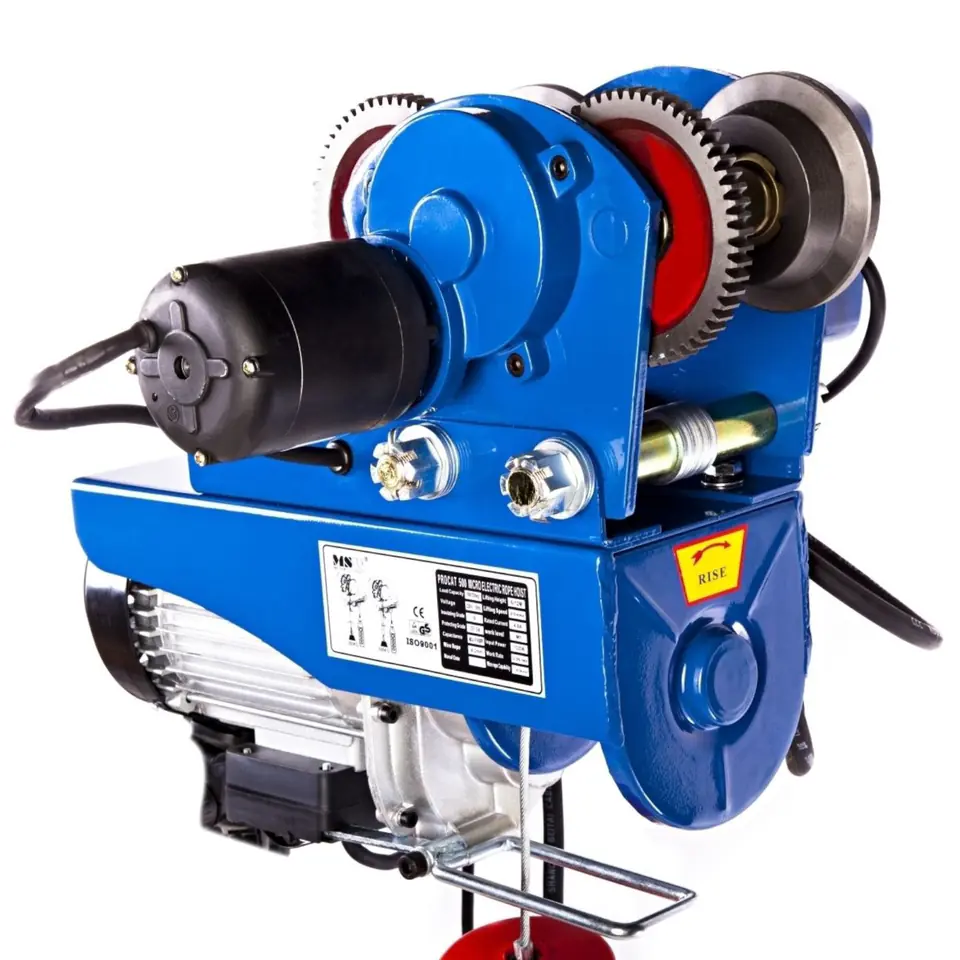

Manufacturer's name: MSW 10060014 (6014) The winch crane of the German brand MSW is a device designed for lifting, moving and lowering heavy loads in factories, warehouses, car workshops or on construction sites. The Procat 500 model is characterized not only by efficiency, but also by reliability, which is especially important in the case of large production halls. The powerful 1020 W motor allows you to comfortably carry objects without much effort on the part of the operator. The winch is able to lift a weight of up to 250 kg even to a height of 12 meters. The powerful hook rotates by 360 and is equipped with a safety latch, making it easy to attach to the load. Functional cables allow you to increase the load capacity of the crane up to 500 kg (the maximum height of the weight lifted is 6 meters). Solid construction and durable steel cable ensure safety even when working with heavy weights. As well as the non-slip clutch, which provides continuous stress control and protects against overload, electromagnetic braking system and protection that interrupts work when the extreme values of the rope tension are reached. The Procat 500 crane also enables horizontal transport (after suspension on a rail) at a speed of up to 13 m/min. The trolley can move both in turns (with a minimum turning radius of 1 meter) and in a straight line. The guide in the form of a T-bar or I-beam should be at least 110 mm high and 68-94 mm wide. The convenience of working with the device has been increased with the help of an intuitive remote control. Thanks to it, we can control the winch up, down, left and right and use the safety switch. Features and functions:
- - Efficiency - the motor with a power of 1020 W allows you to lift objects weighing up to 500 kg to a height of 12 (above 250 kg only for 6 m),
- - Efficiency - speed in the range of 4-8 m / s vertically and reaching 13 m / min horizontally,
- - Convenience - removable blockage, rotating hook and safety latch,
- - Safety - slipper clutch with stress control and overload protection and power-free electromagnetic braking system,

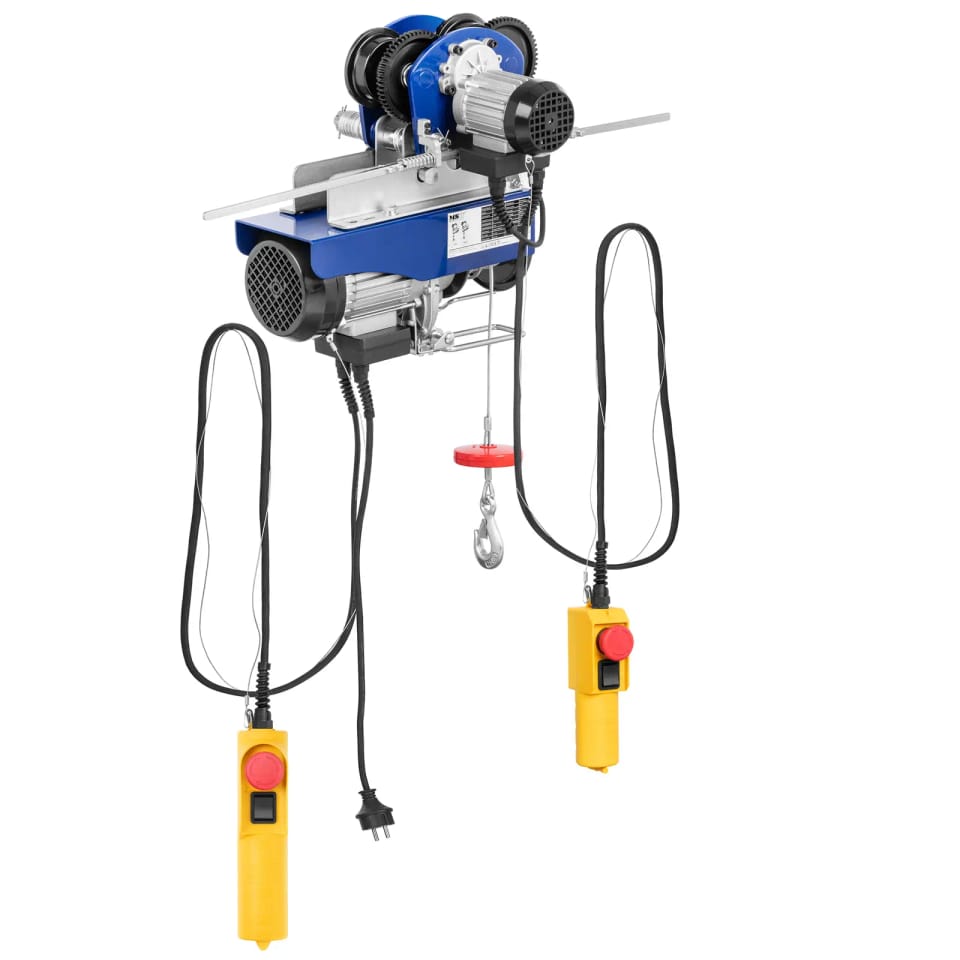

- - Intuitiveness - functional remote control included .
- - Model - PROCAT 500
- - Catalogue number - 6014
- - Article status - New
- - Power supply - 230 V / 50 Hz
- - Rated power - 1020 W
- - Crane motor power - 540 W
- - Max. load capacity with block - 500 kg
- - Max. lifting capacity without blob - 250 kg
- - Max. height with shower - 6 m
- - Max. height without glaze - 12 m
- - Pulling speed with block - 5 m/min
- - Retracting speed without blob - 10 m/min
- - Travel speed - 13 m/min
- - Rope - CK 45
- - Rope diameter - 4.2 mm
- - Minimum turning radius - 1 m
- - Duty cycle - 20%/10 min
- - Remote Control - Yes
- - Length cable from the remote control - 2.4 m
- - Length power cord - 0,7 m
- - Rope strength - Up to 1600 kg
- - Gear material - CK 40
- - Grease type - EP
- - Safety class - IP54
- - Dimensions (LxWxH) - 45 x 41 x 34 cm
- - Weight - 32.4 kg
- - Shipping dimensions (LxWxH) - 54 x 48 x 49 cm
- - Shipping weight - 34.8 kg
- - Rope winch with crane
- - Zblocze
- - Work gloves
- - Manual EN
