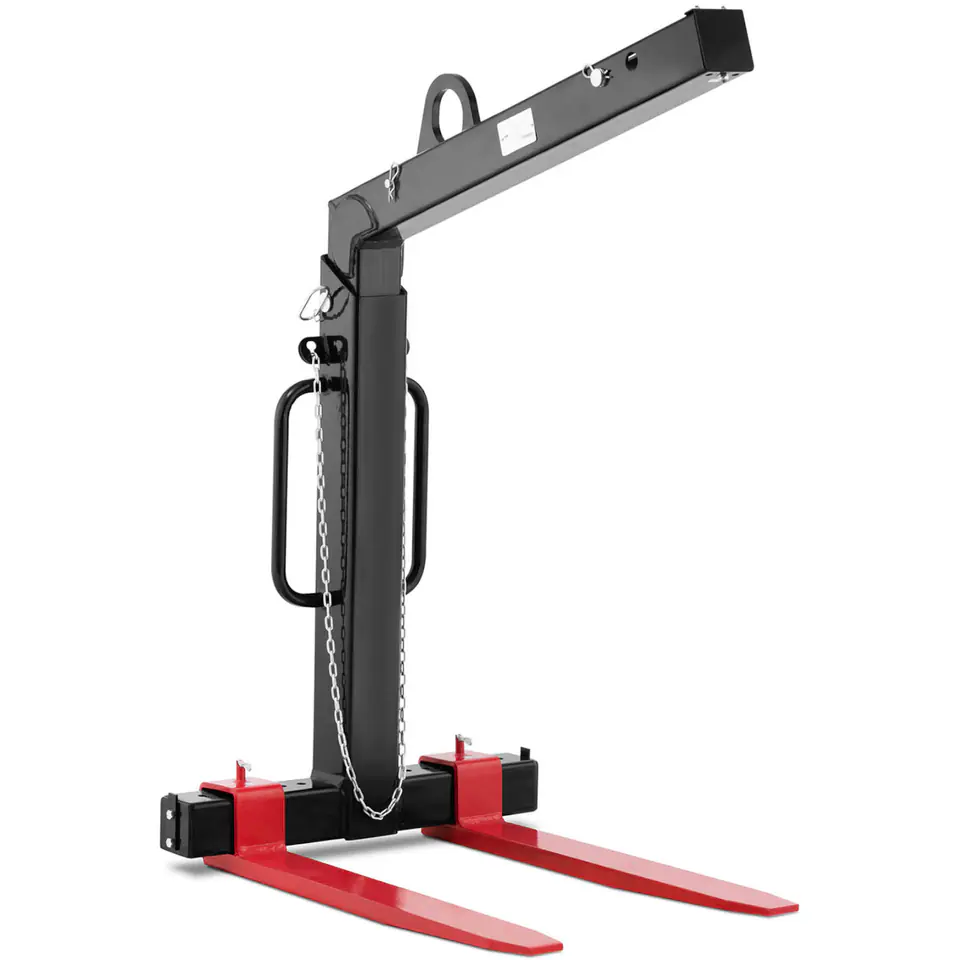

Manufacturer's code: 10030729Steinberg Systems pallet forks are perfect as accessories for hoists, for working with the movement of loads on europallets, in construction as well as for industrial and agricultural goods.
Loading forks can be easily and quickly connected to the lift. They are suitable for mounting on cranes with and without a rotating arm and cranes with HDS grippers. The equipment automatically adapts to the weight of the load, so that the pallet is laid exactly parallel to the floor. The automatic weight compensation of 400 kg ensures that it always remains in balance and thus enables stable transport. The height of the forks can be adjusted in the range of 1300-2000 mm. Euro pallets can be stacked along and across. With the help of a carriage for forks and springs, the HDS fork adapts to the center of gravity, thus ensuring an even distribution of weight on both arms. They can also be adjusted. The forks are made of durable steel. The durability of the material can be further strengthened by storing it in a place that will protect it from the weather. Equipment should be cleaned regularly with appropriate cleaning agents.
Product features:
- - Easy operation - pallet forks are quickly mounted on the crane,
- - Flexibility - load up to 2000 kg suitable for large loads,
- - Safety - automatic weight compensation ensures safe holding of transported goods,
- - Changing settings - height adjustment adjusted to the transported load,
- - Durability - made of durable steel.
- - Model - SBS-CF-2000
- - Manufacturer code - 10030729
- - Product condition - New
- - Material - Carbon Steel, Steel
- - Height [mm] - 1655 - 2355
- - Fork length [mm] - 1000
- - Lifting height [mm] - 1300 - 2000
- - Material - Q345 steel, 45# steel
- - Fork cross section [mm] - 120 x 40
- - Tooth range [mm] - 400 - 900
- - Automatic weight compensation [kg] - 400
- - Load capacity [kg] - 2000
- - Dimensions (LxWxH) [cm] - 115.5 x 93 x 243.5
- - Weight [kg] - 204
- - Shipping dimensions (LxWxH) [cm] - 210 x 139 x 20
- - Shipping weight [kg] - 220
- - Pallet forks
- -Manual
