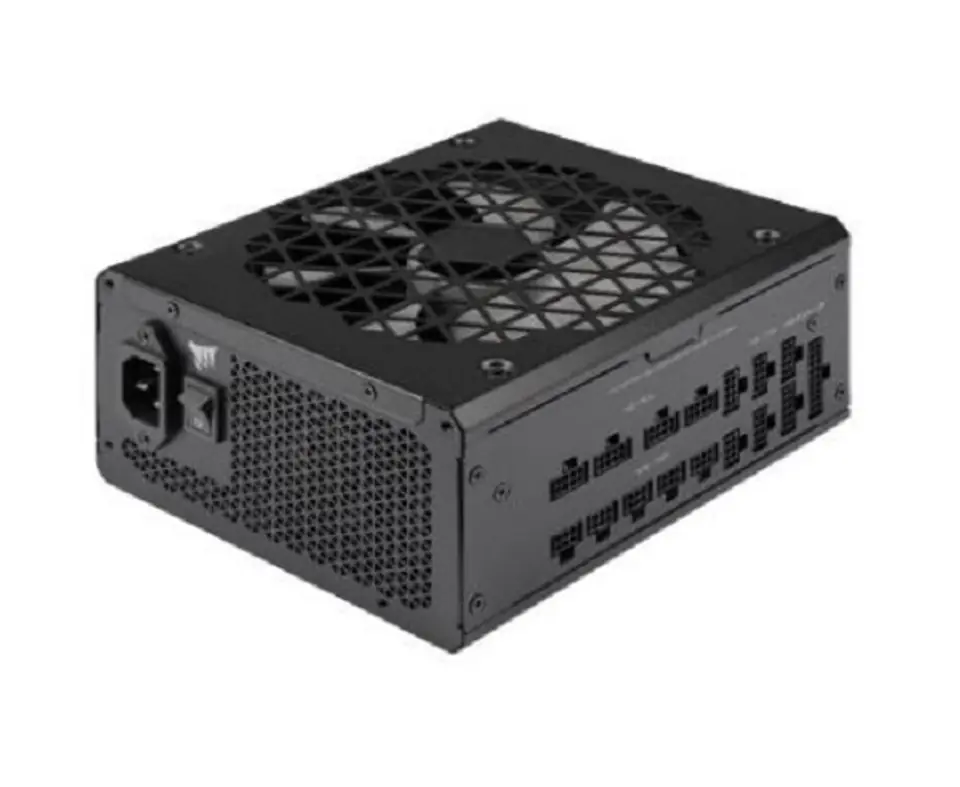

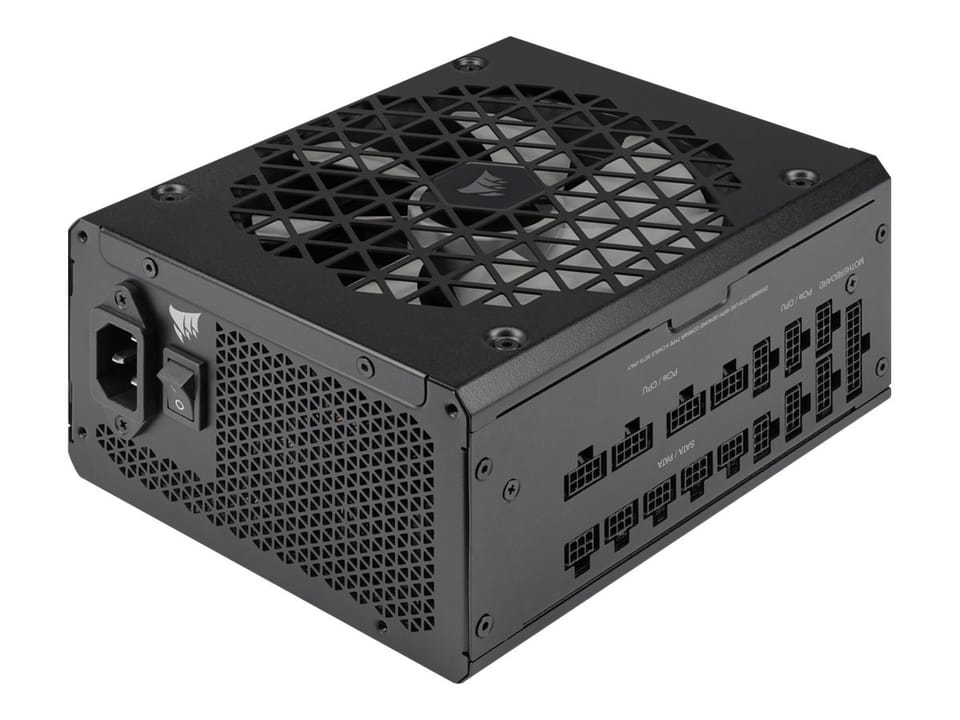

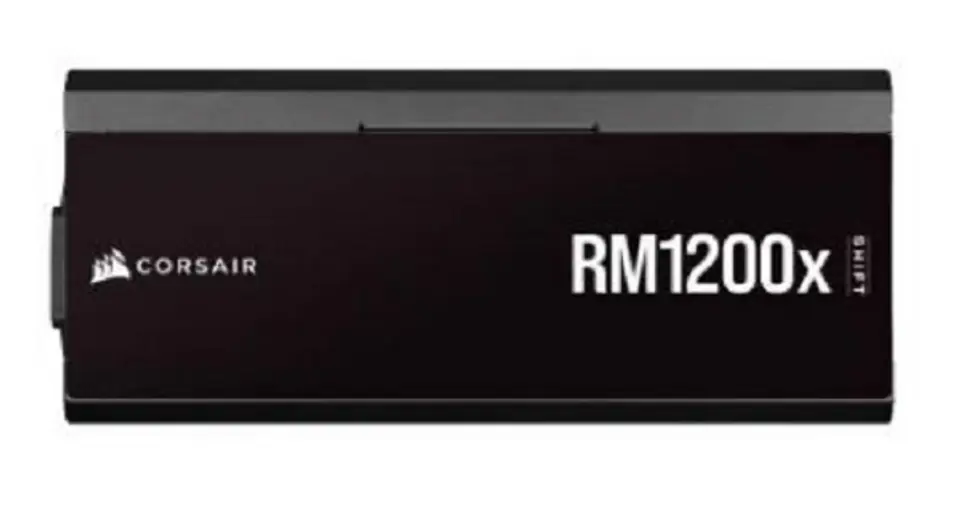

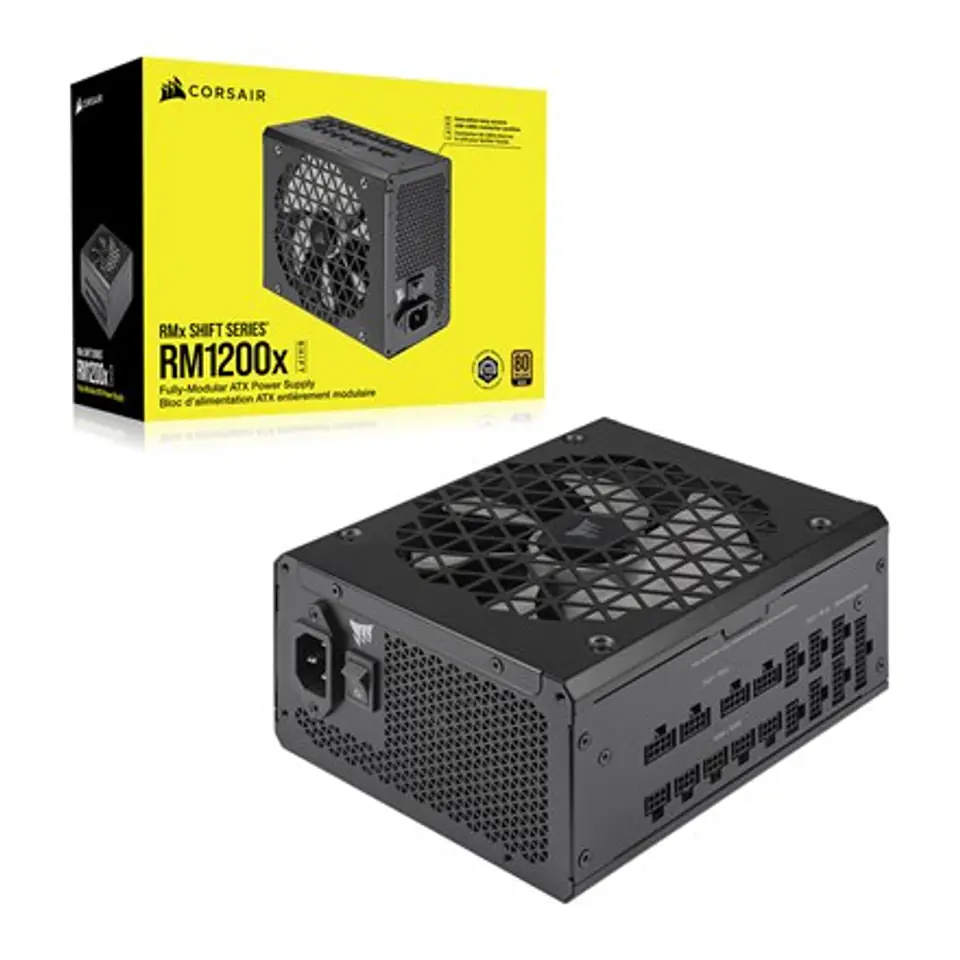

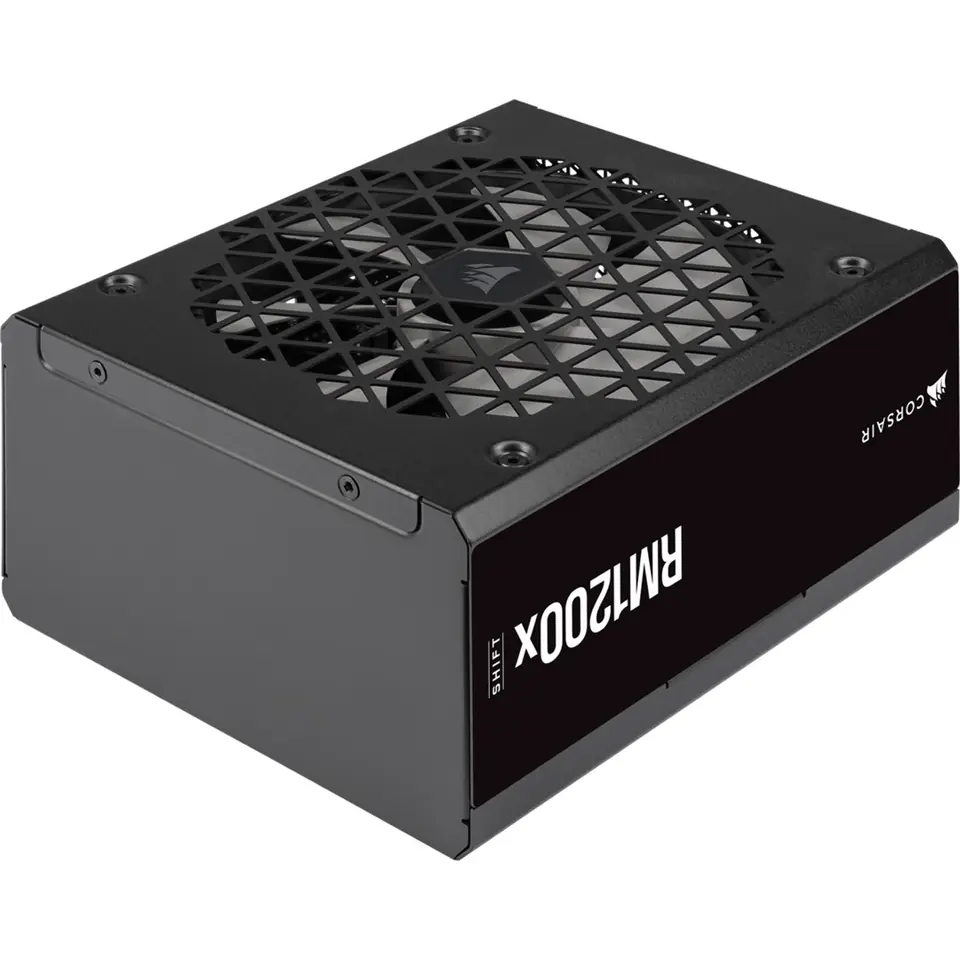

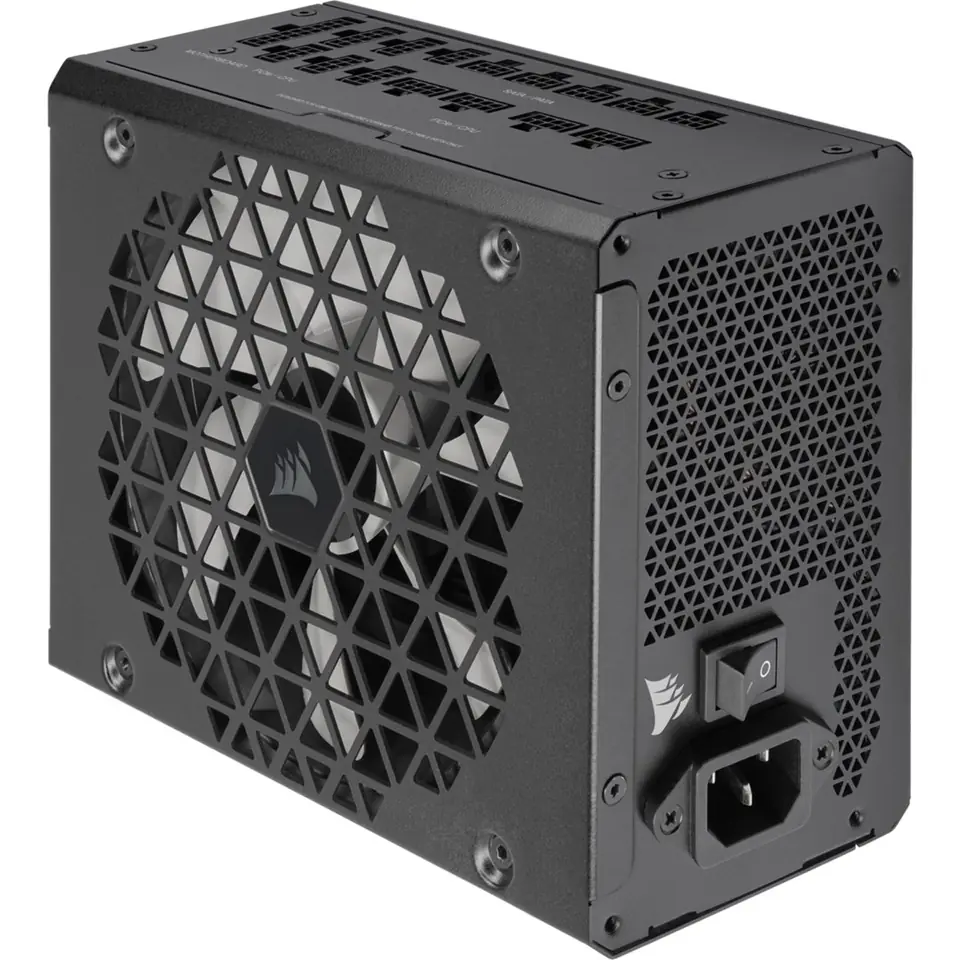

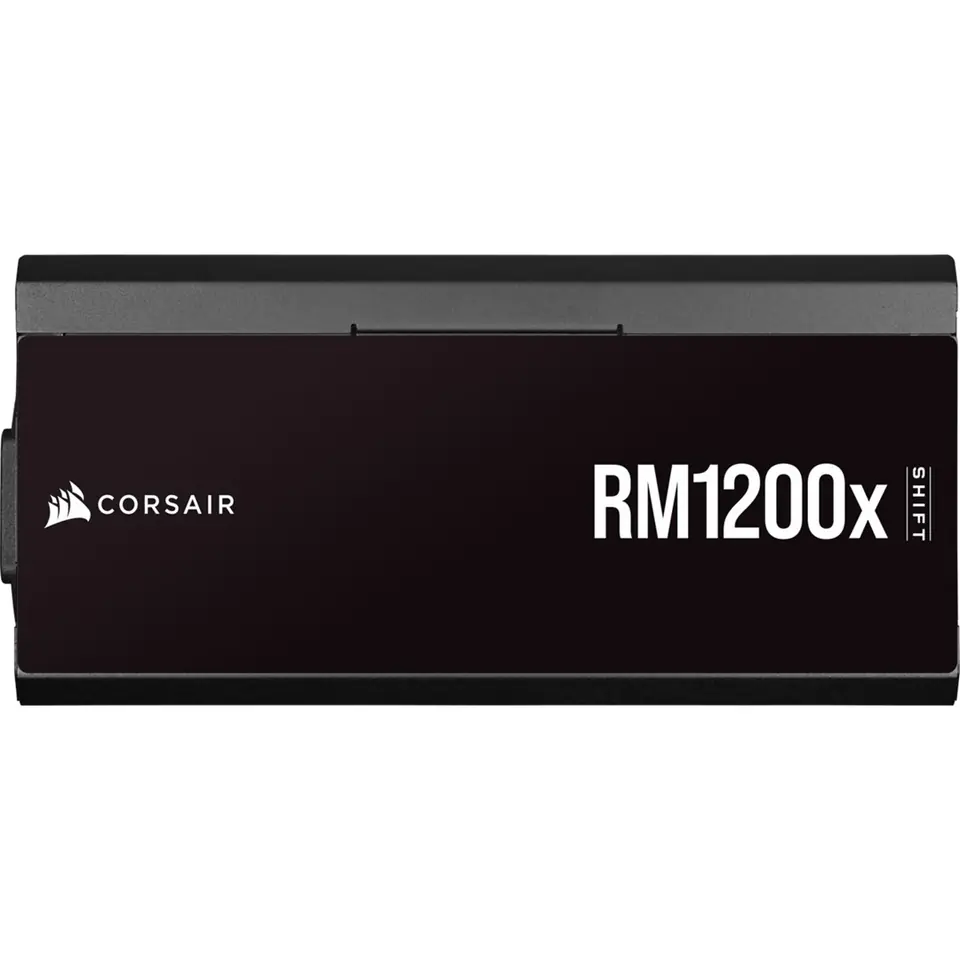

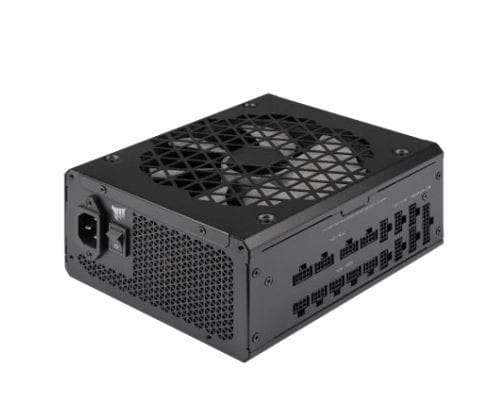

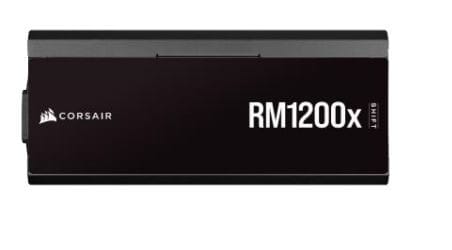

Corsair RM1200x SHIFT power supply unit 1200 W 24-pin ATX ATX Black

€296.80
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Corsair
Product code:
CP-9020254-EU / 0840006654049

Specification

80 plus certification:80 PLUS Gold
Ac input frequency:47 - 63 Hz
Ac input voltage:100 - 240 V
Atx version:3.0
Bearing technology:FDB
Cable tie(s) included:Yes
Cables included:AC, DC
Cabling type:Fully-Modular
Combined power (+12v):1200 W
Combined power (+3.3v):150 W
Combined power (+5v):150 W
Combined power (+5vsb):15 W
Compliance certificates:UKCA, Low Voltage Directive (LVD), RoHS
Cooling type:Active
Depth:180 mm
Efficiency:90%
Eps cable length:65 cm
Eps power connector (4+4 pin):Yes
Eps version:2.92

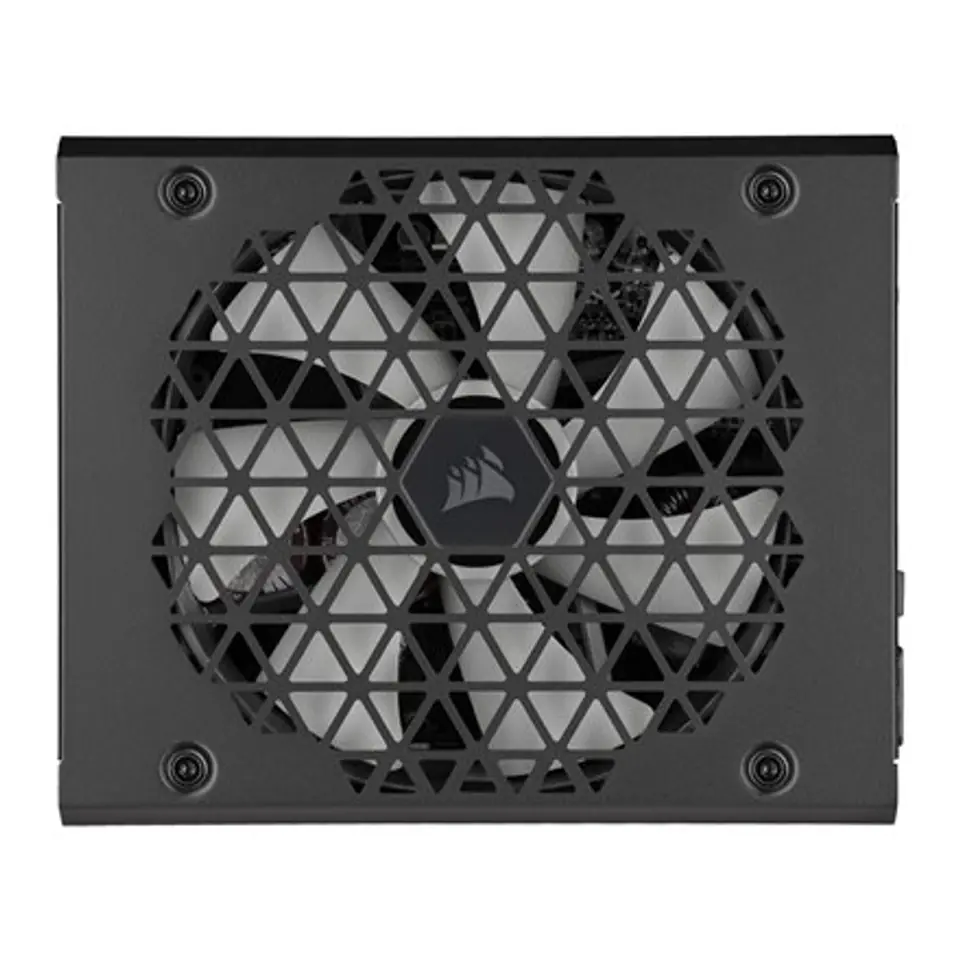

Fan diameter:14 cm
Height:86 mm
Input current:7.5 - 15 A
Max output current (+12v):100 A
Max output current (+3.3v):20 A
Max output current (+5v):20 A
Max output current (+5vsb):3 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:61 cm
Motherboard power connector:24-pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:16

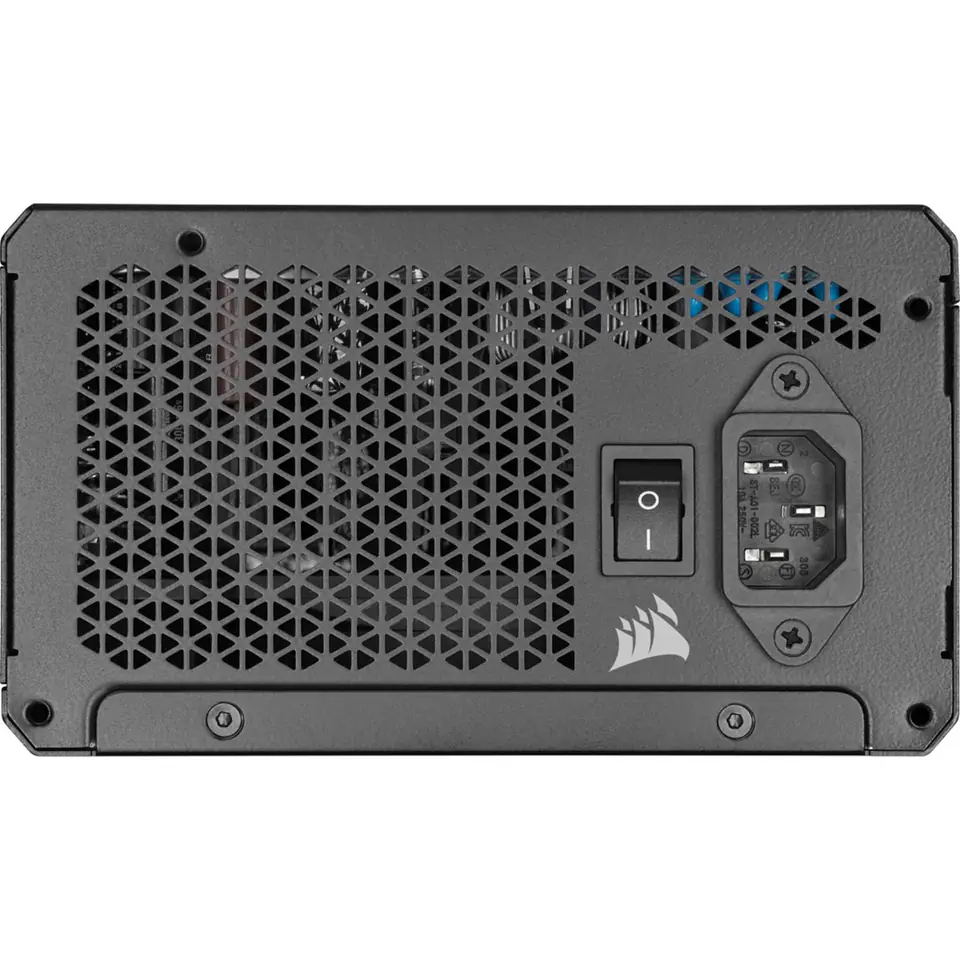

On/off switch:Yes
Pci express power cable length:75 cm
Pci express power connectors (16-pin):1
Pci express power connectors (6+2 pin):8
Peripheral (molex) power cable length:550, 650, 750 mm, 450 mm
Peripheral (molex) power connectors (4-pin):8
Power protection features:Over power, Overheating, Over current, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Black
Purpose:PC/Server
Sata power cable length:800 mm, 570, 455, 685
Screws included:Yes
Sustainability certificates:UKCA, Low Voltage Directive (LVD), RoHS
Sustainability compliance:Yes
Total power:1200 W
Weight:2 kg
Width:150 mm

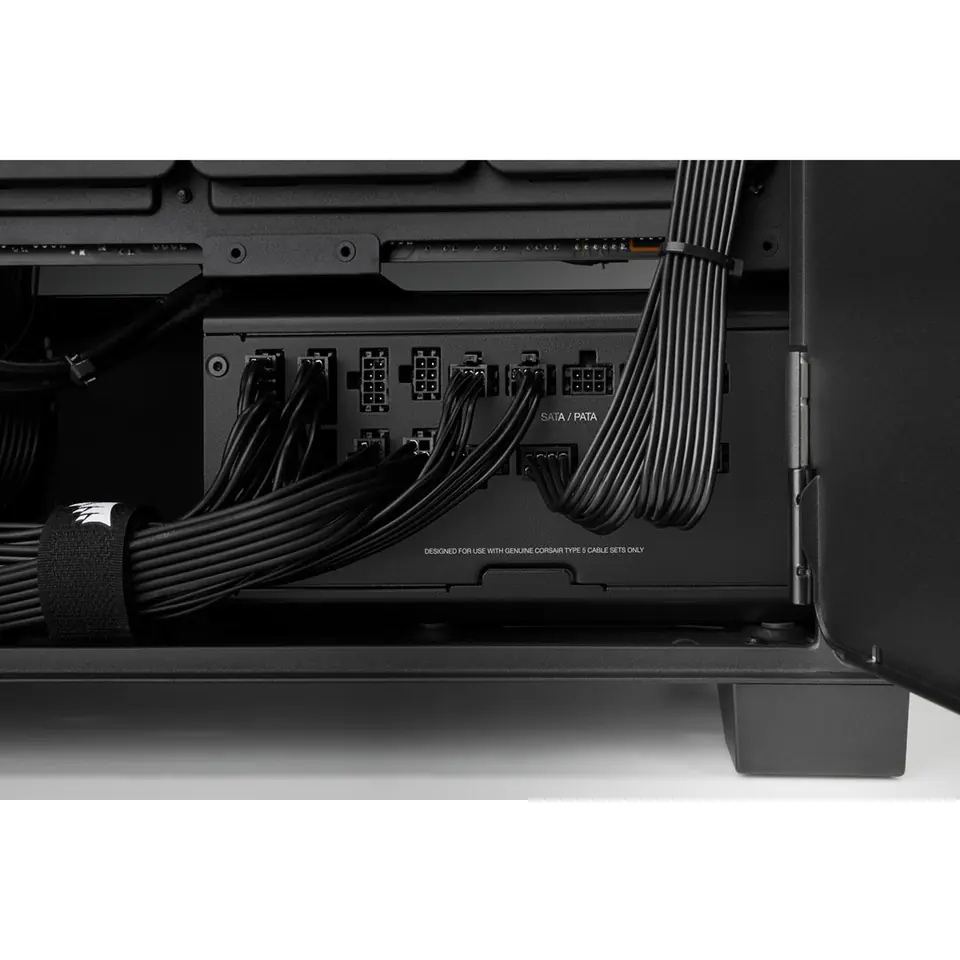

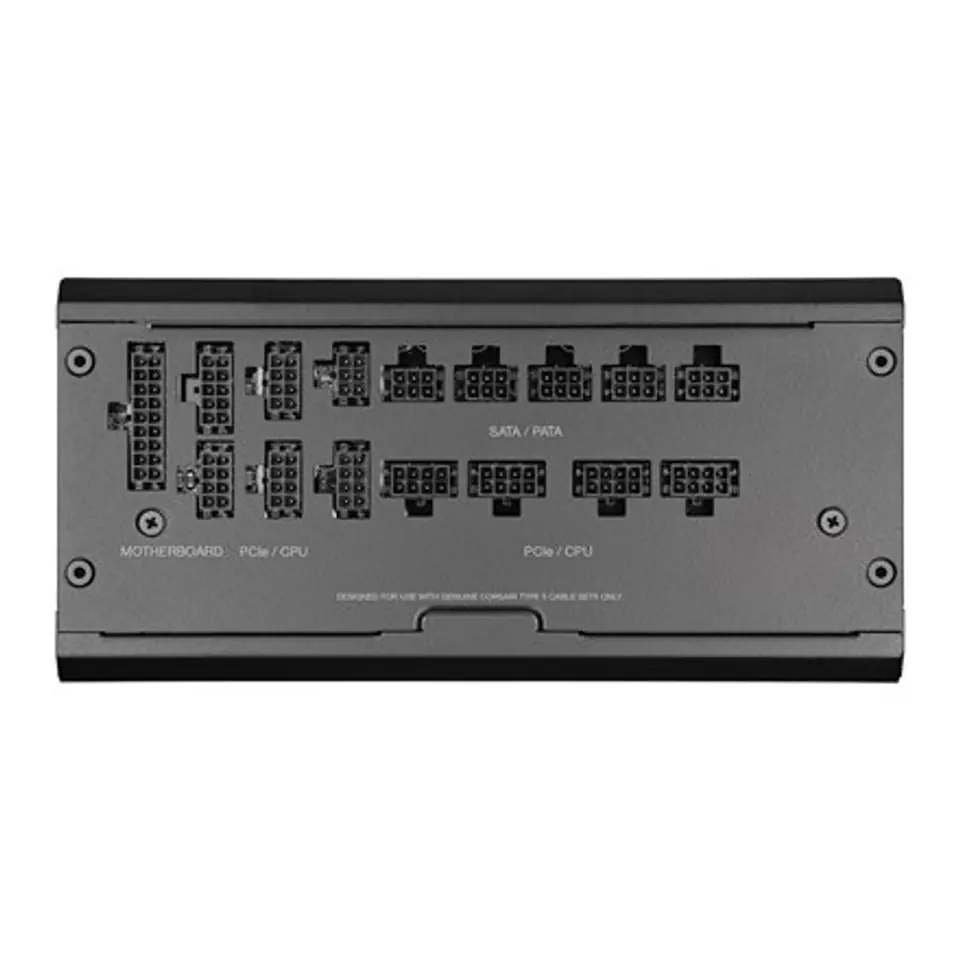

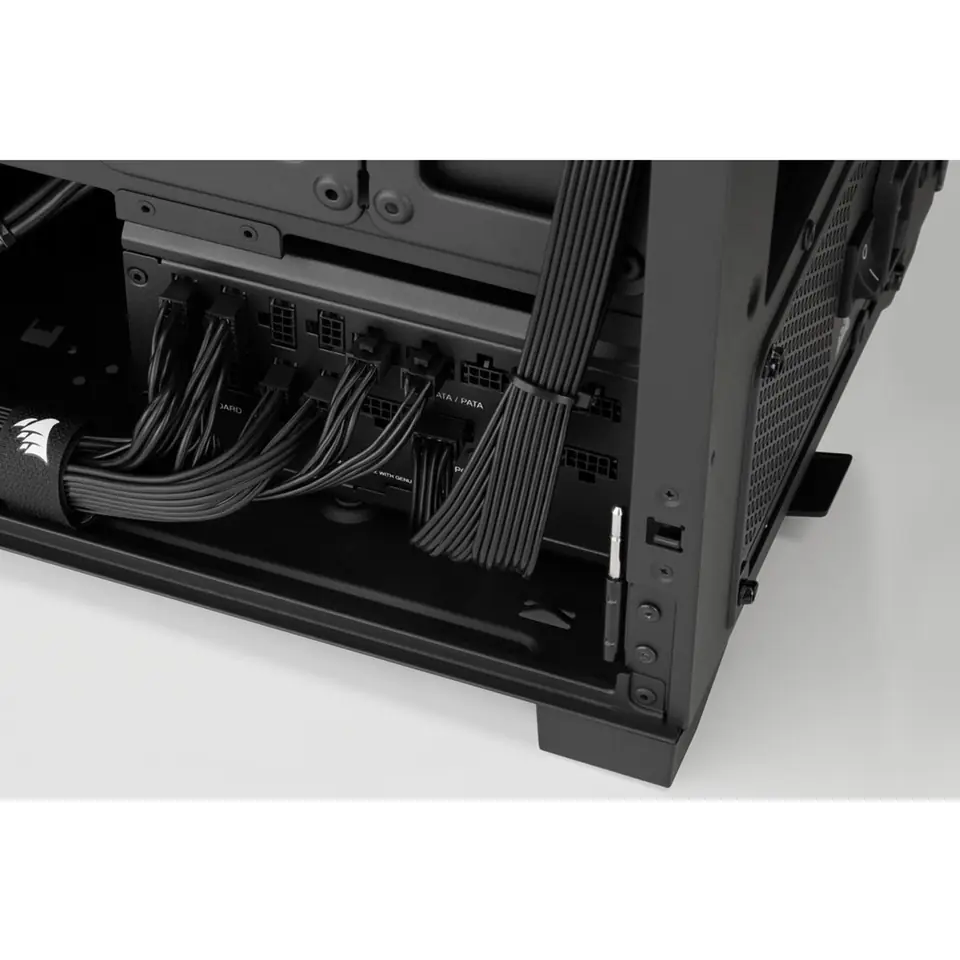

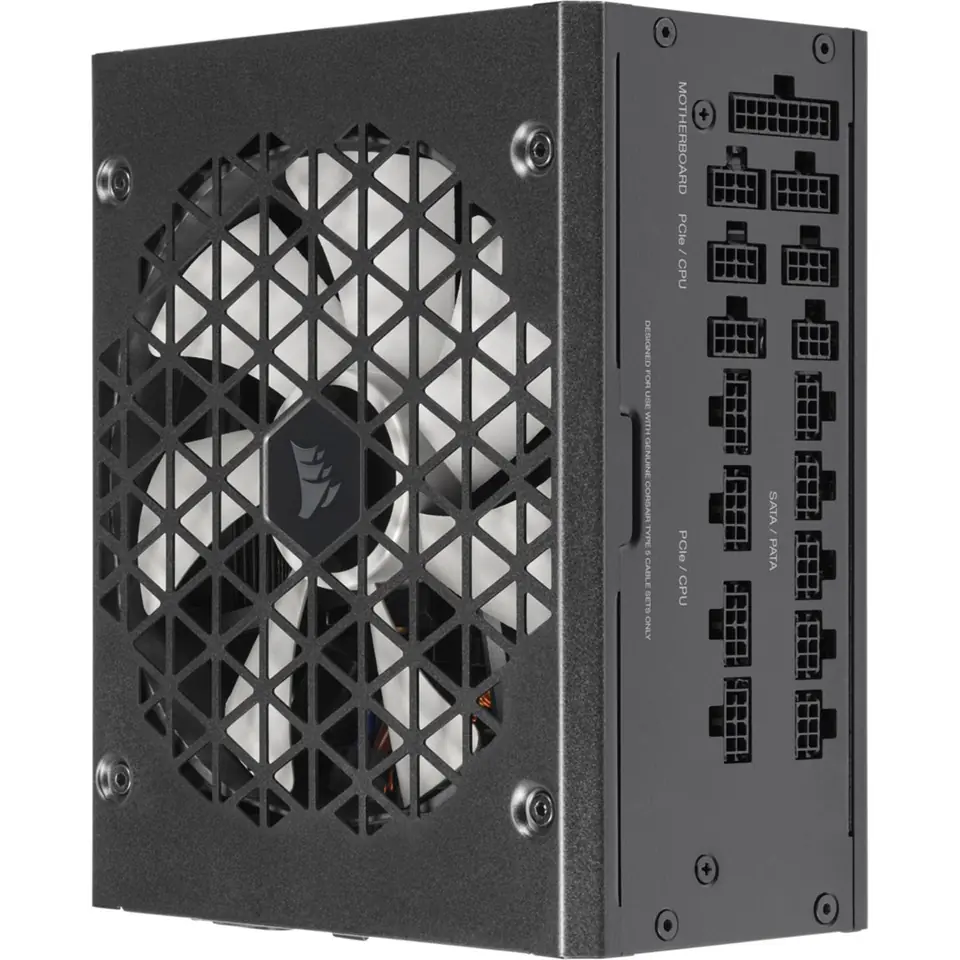

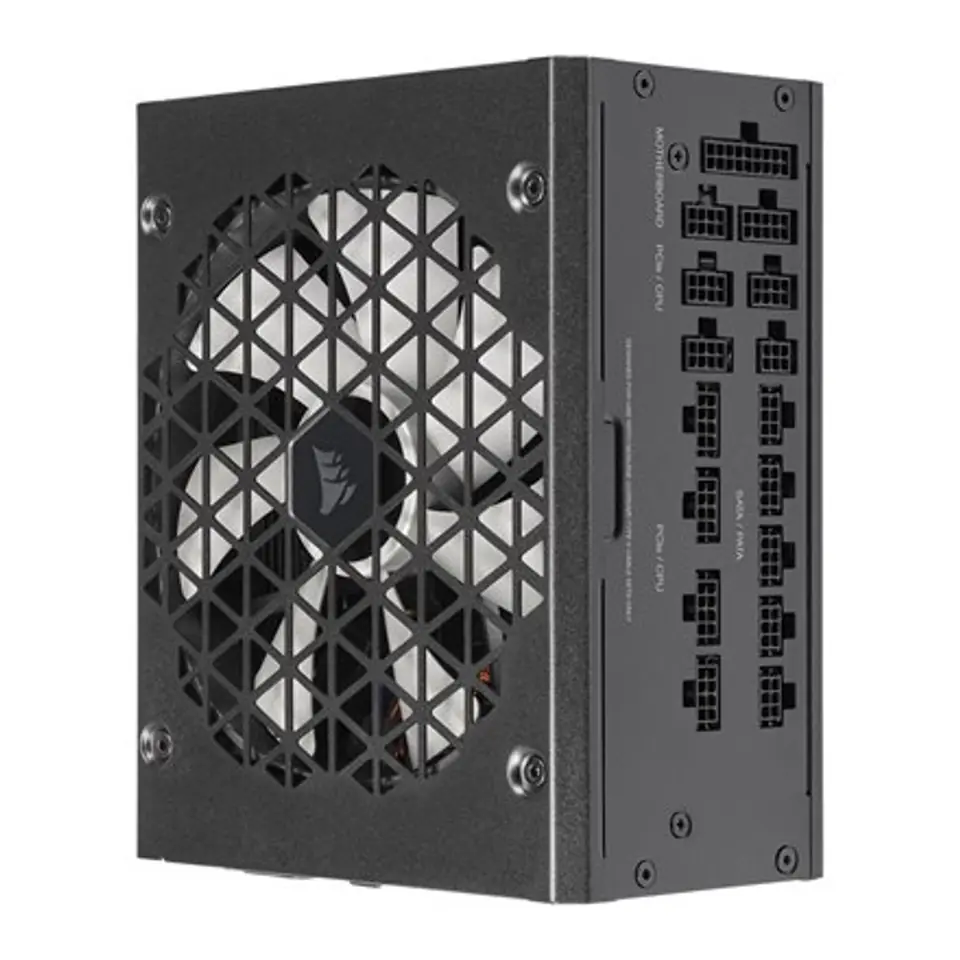

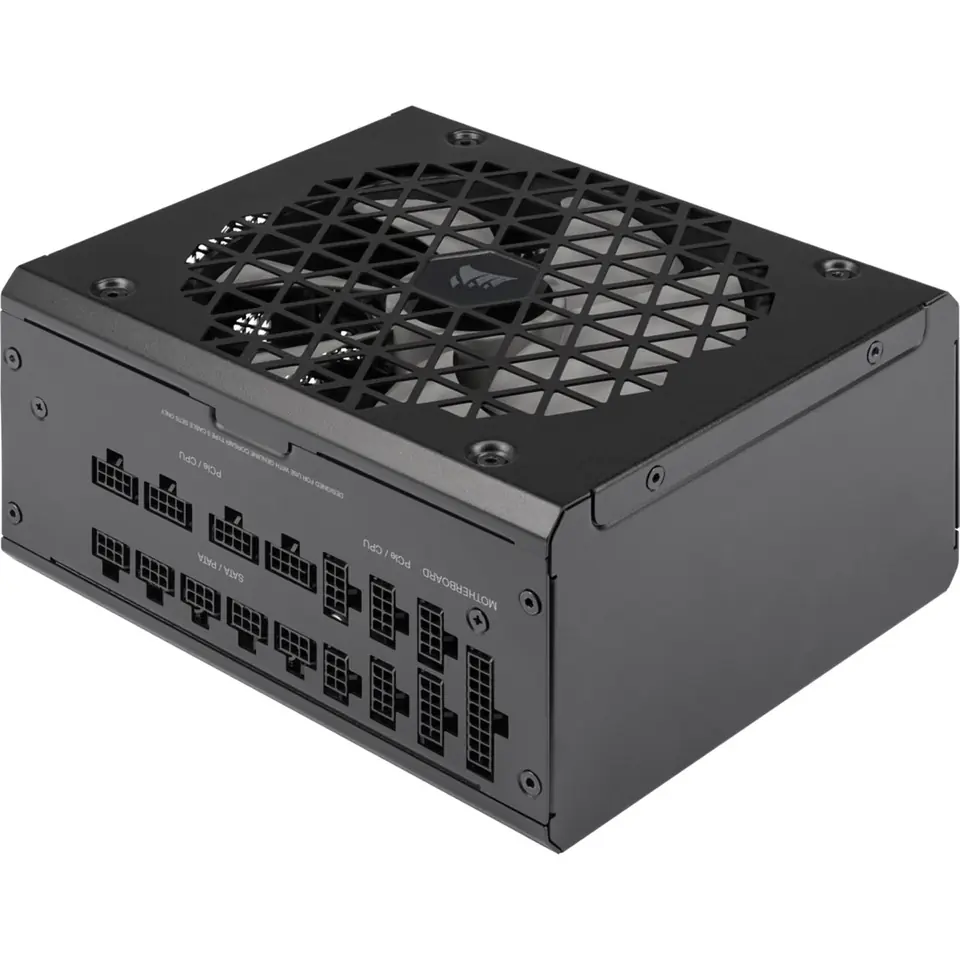

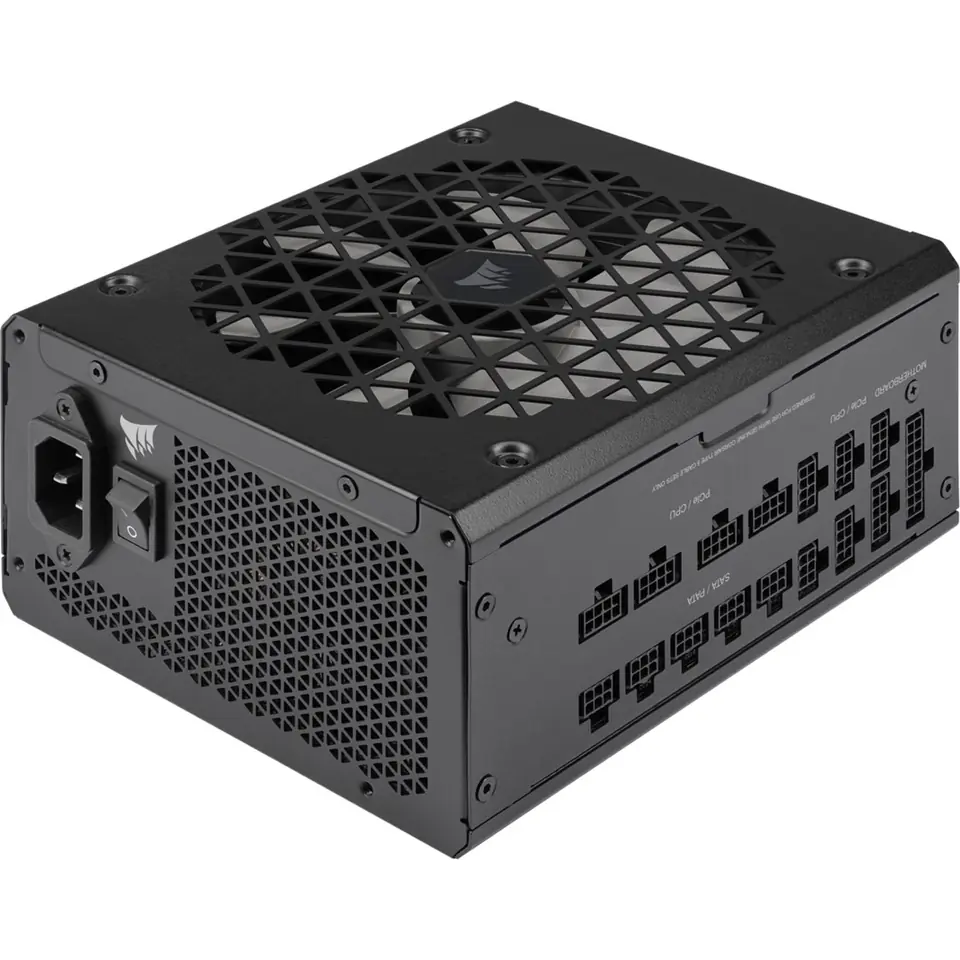

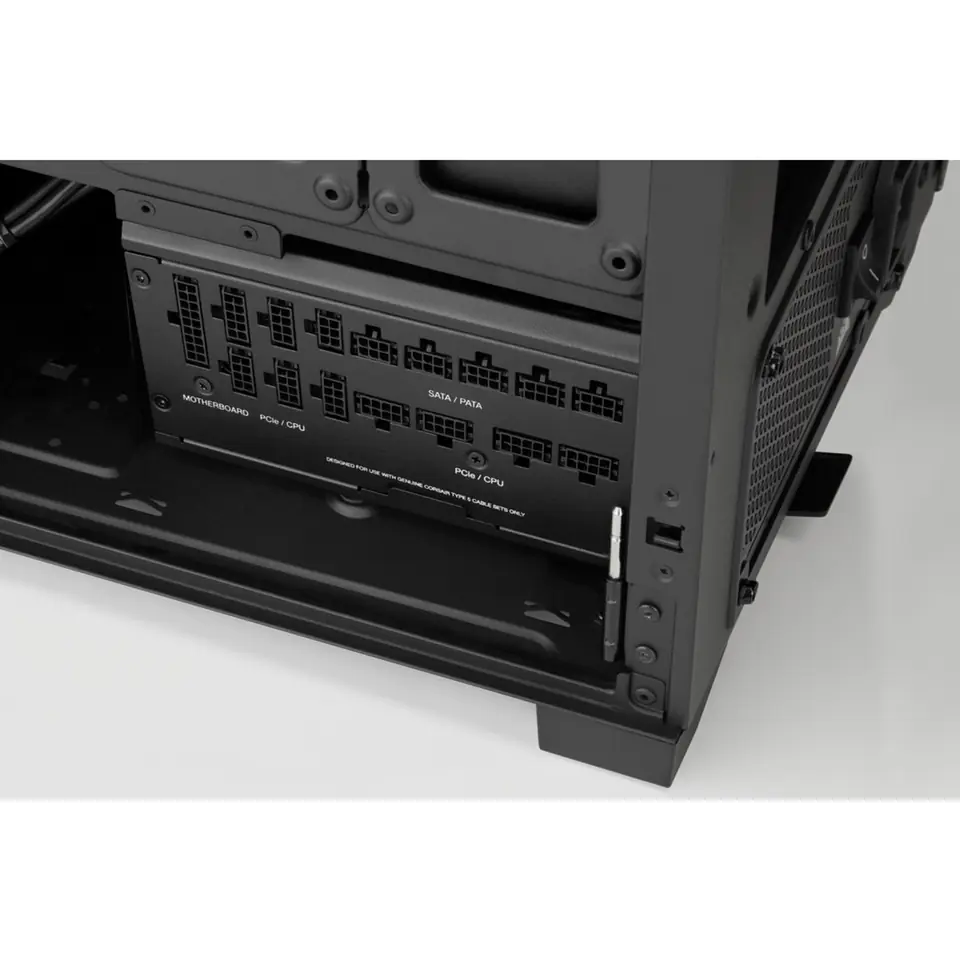

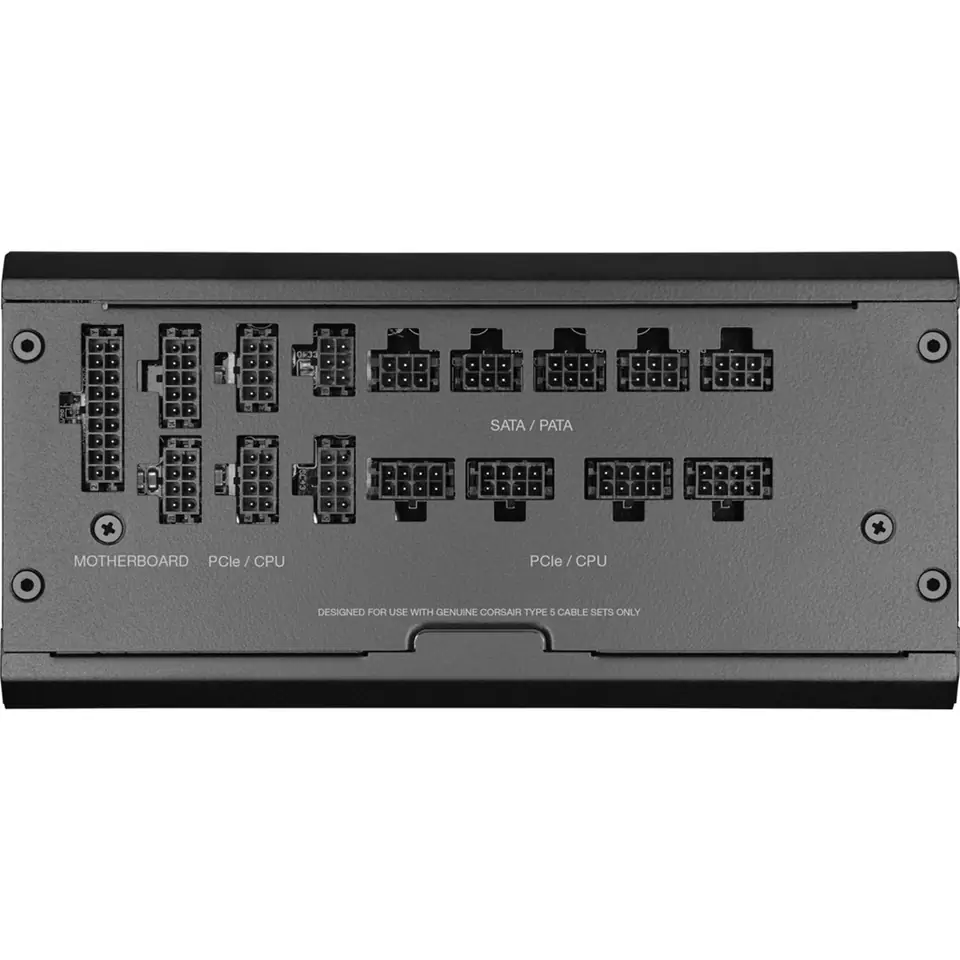

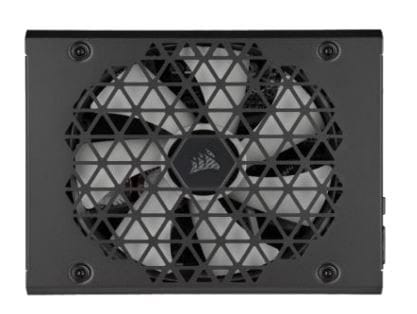

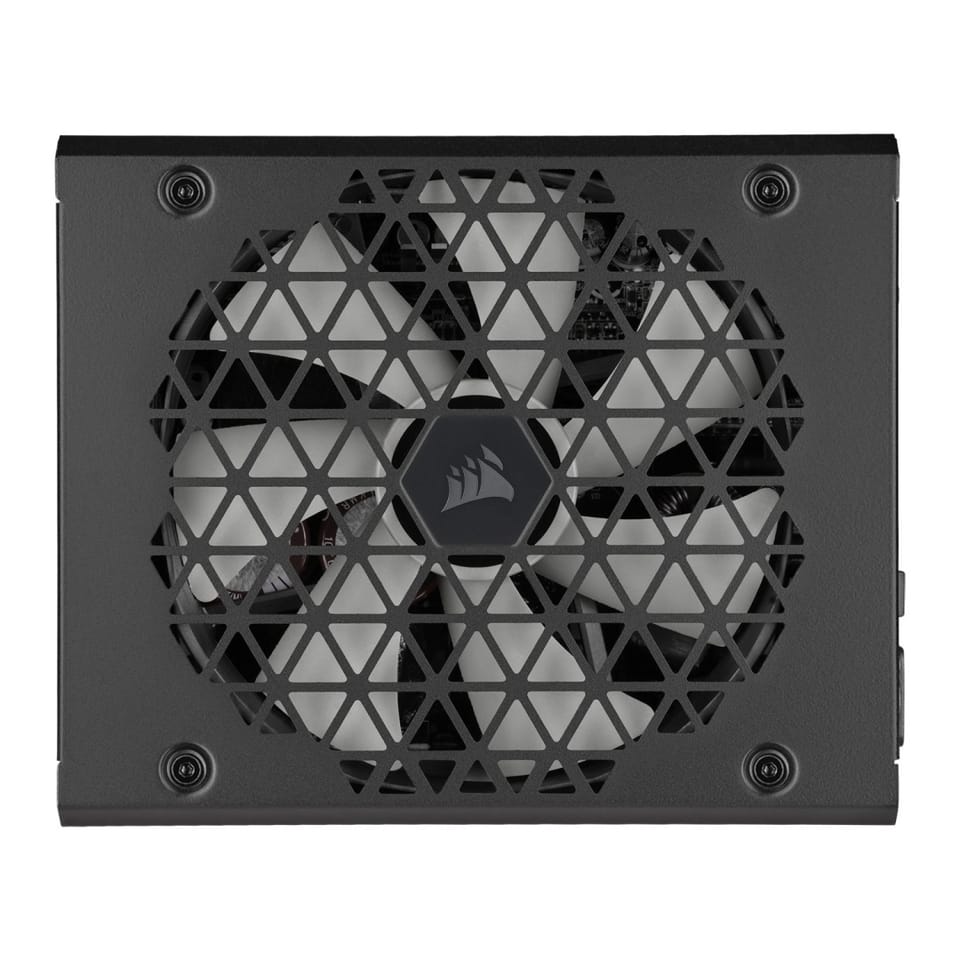

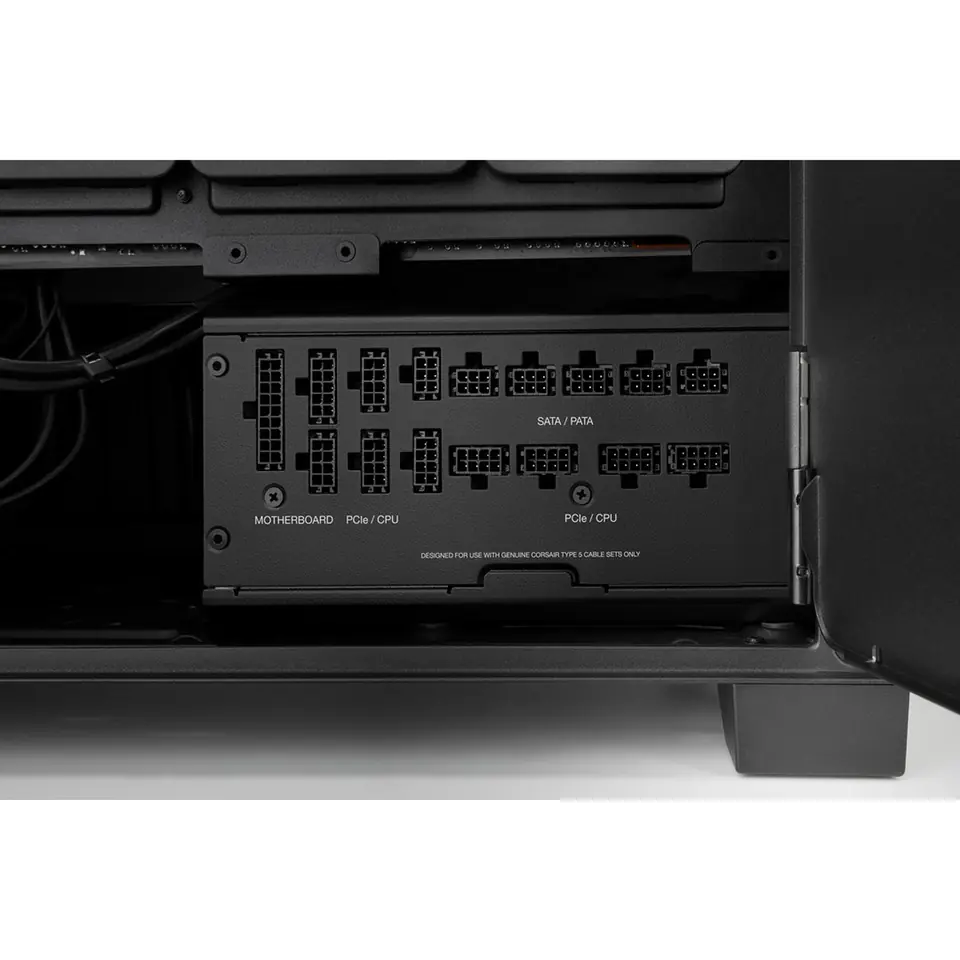

The fully modular CORSAIR RMx SHIFT series power supplies feature a revolutionary side-cable interface that puts all connections at your fingertips for exceptionally convenient and efficient 80 PLUS Gold power. RMx SHIFT power supplies use Japanese 105°Crated electrolytic capacitors for long life and reliability backed by a ten-year warranty. The 140mm dynamic bearing fan uses a specially calculated fan curve for high performance and reliability at low noise levels, while Zero RPM support ensures virtually inaudible operation at low to medium loads.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
