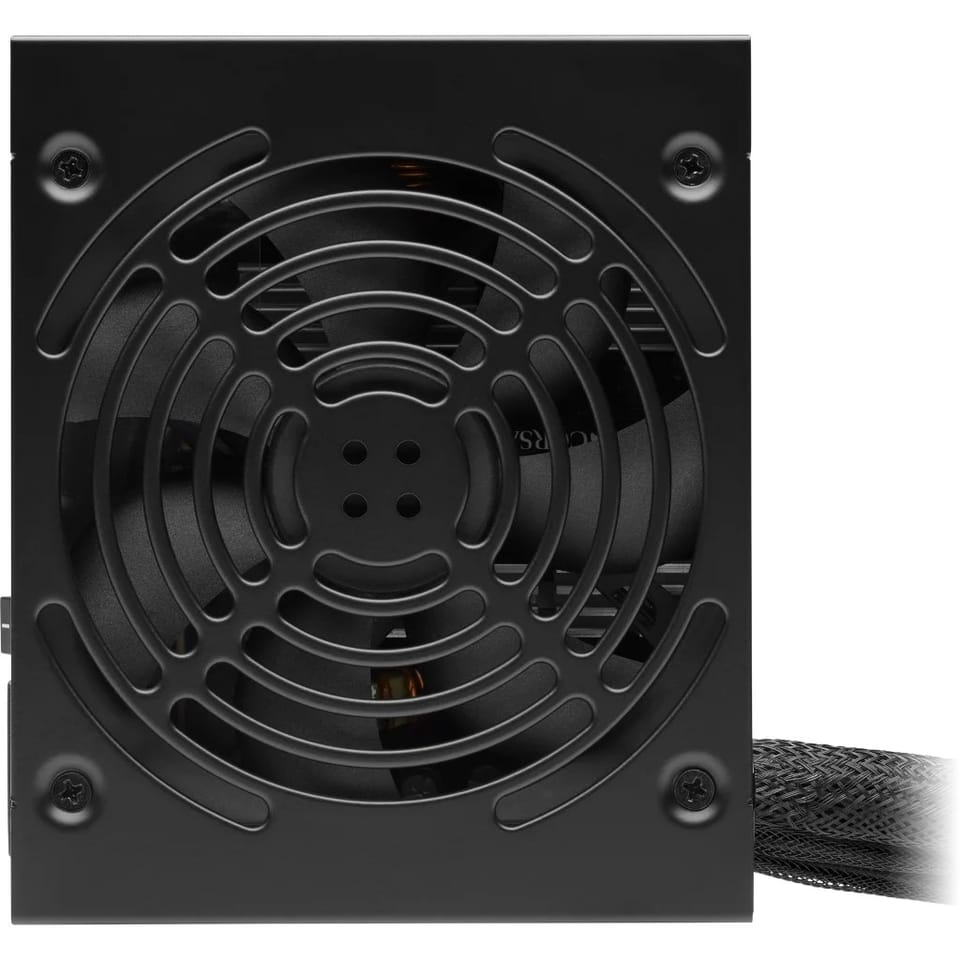

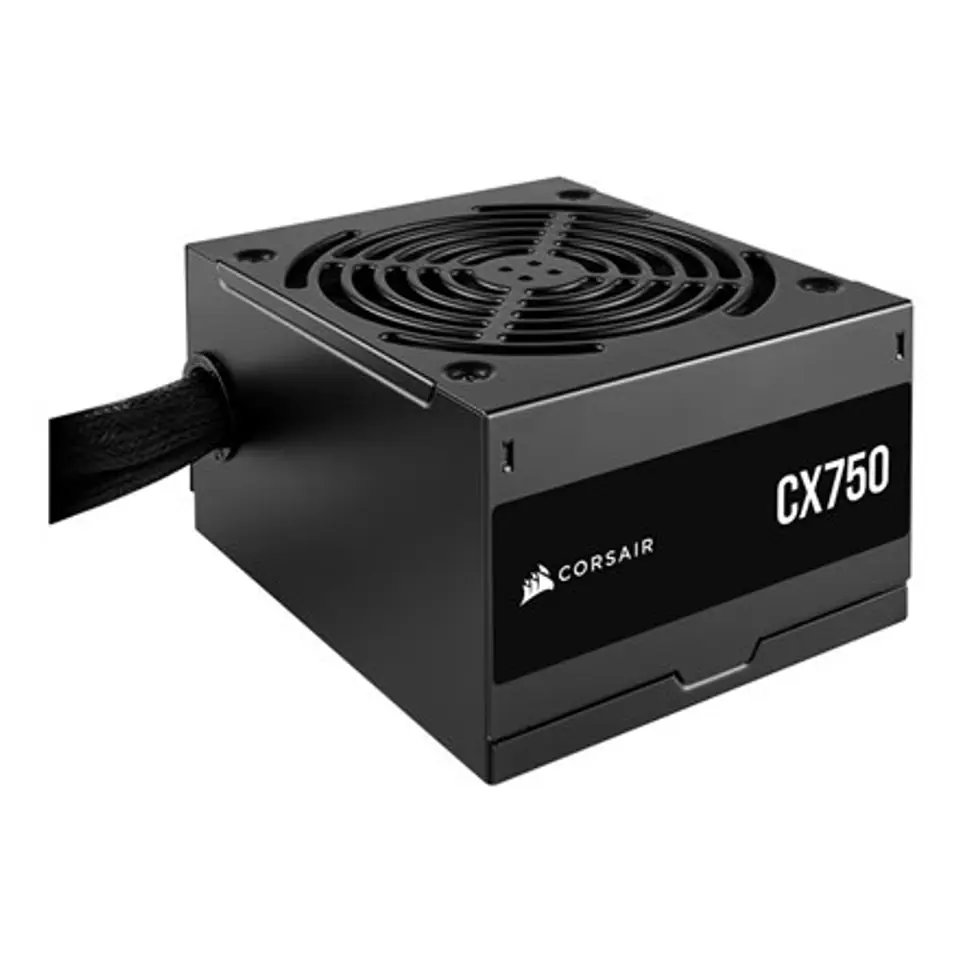

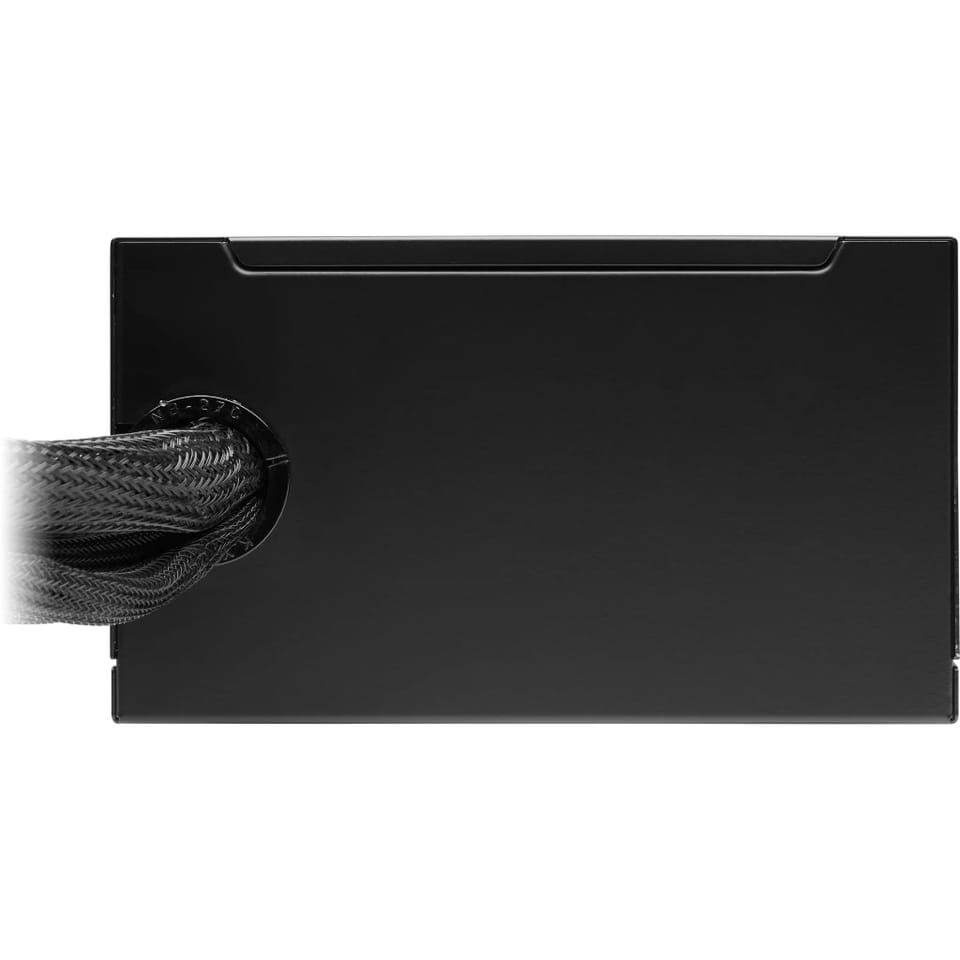

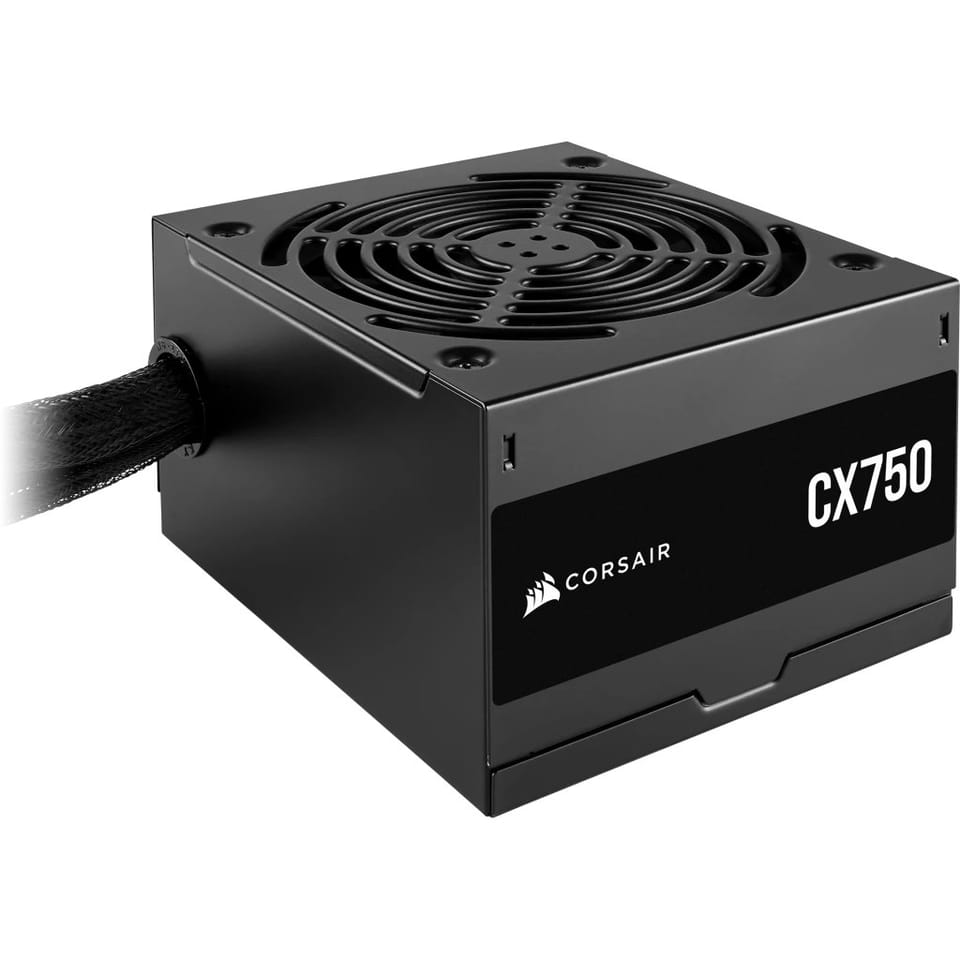

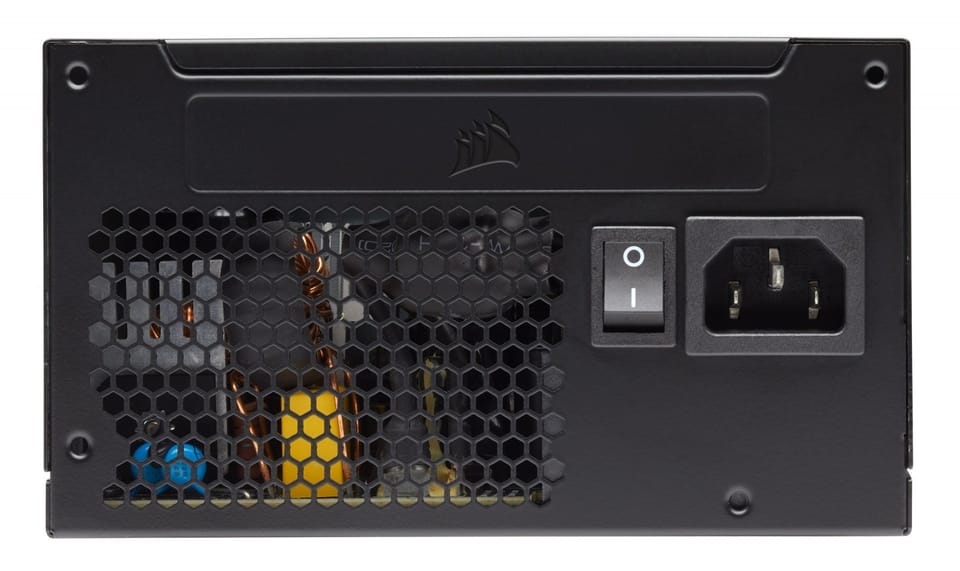

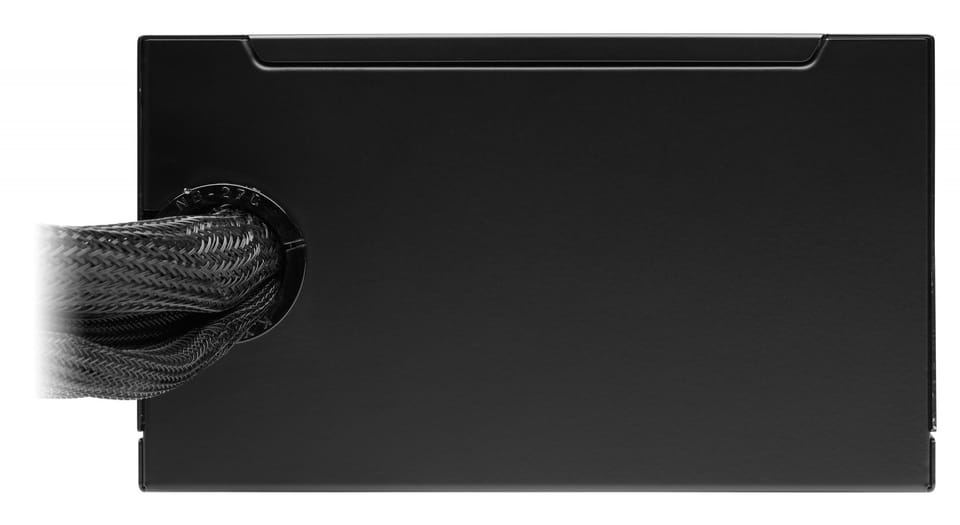

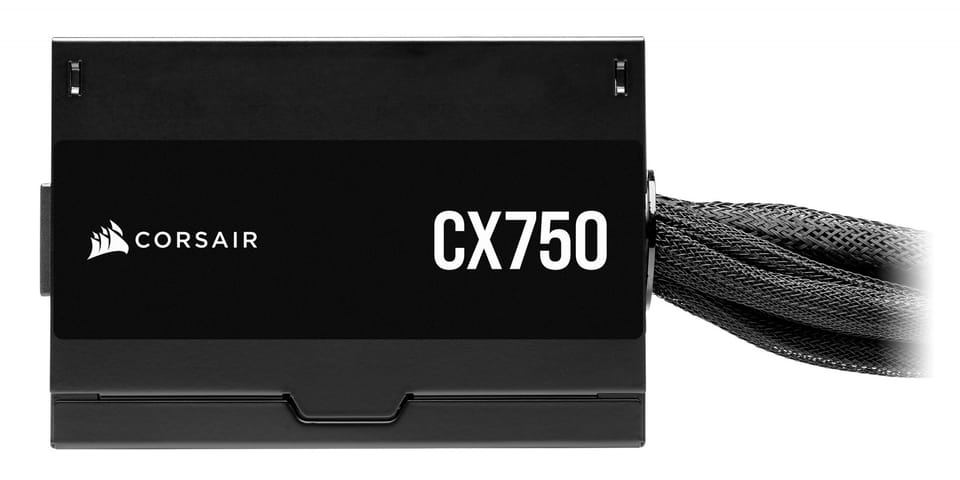

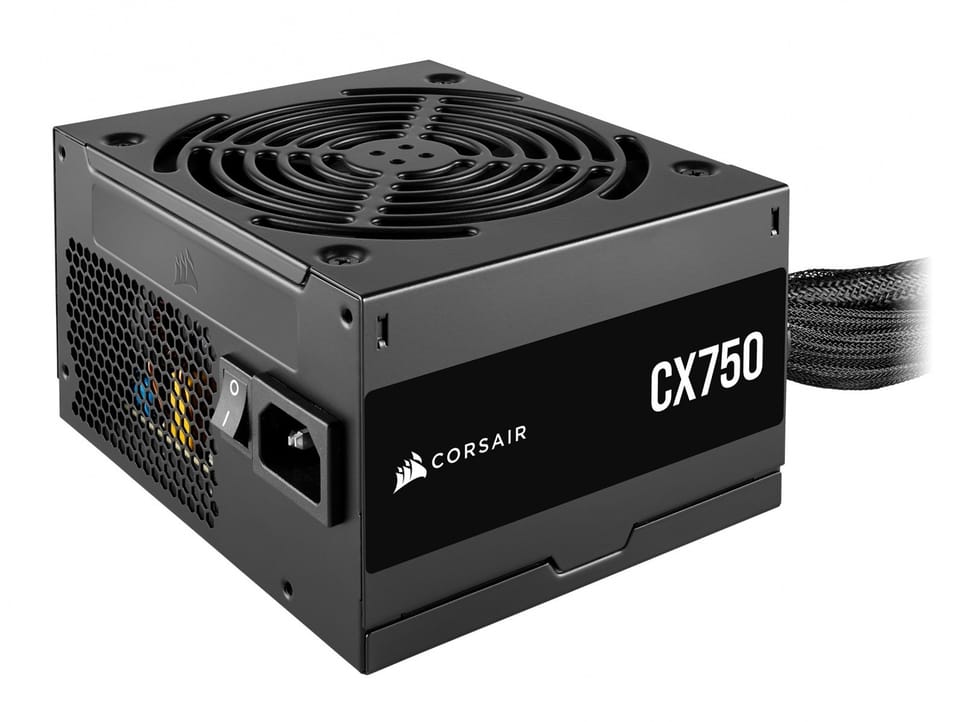

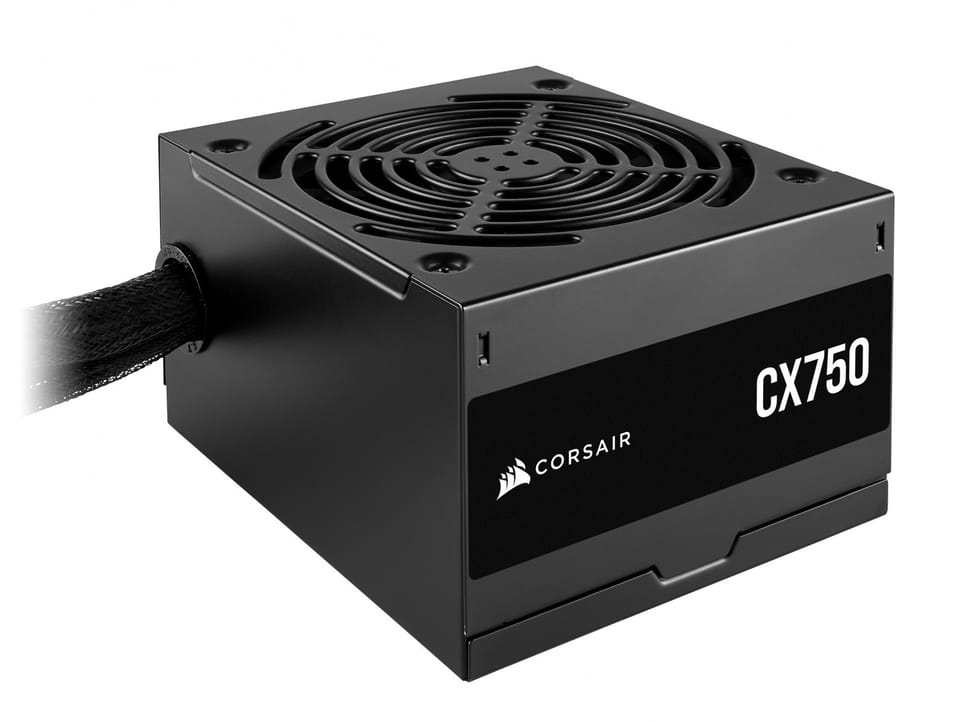

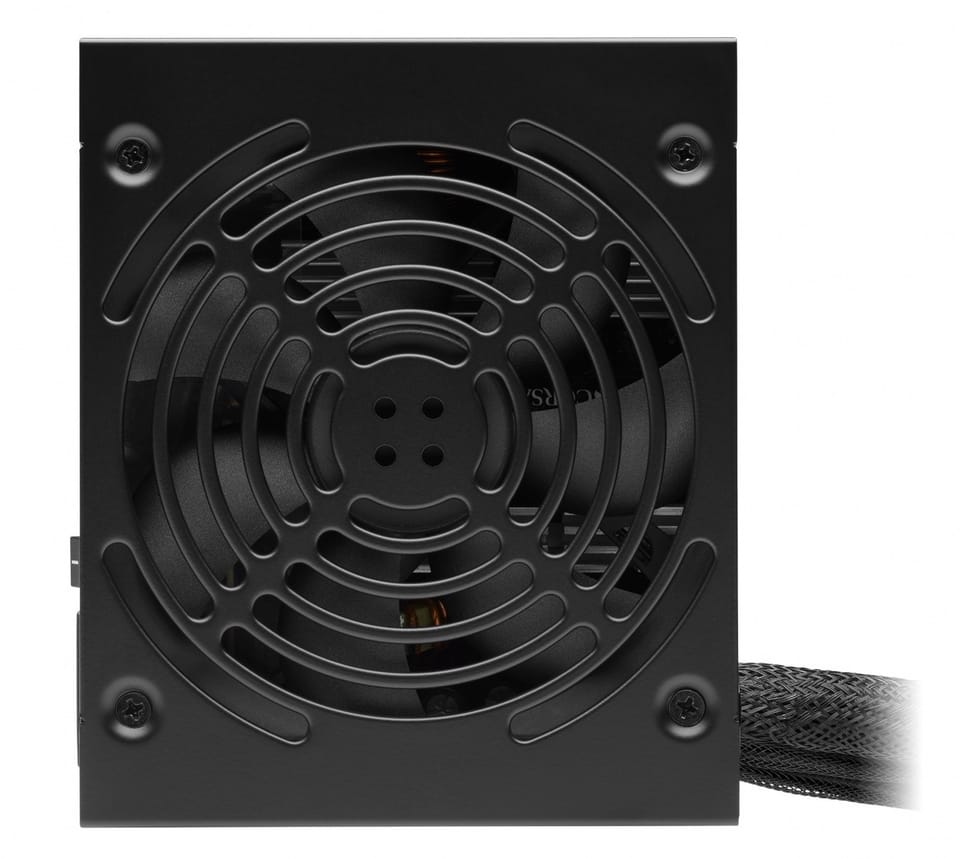

Corsair CX Series CX750 power supply unit 750 W 24-pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Corsair
- Product code:
- CP-9020279-EU / 0840006671015
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 624 W |
| Combined power (+3.3v): | 130 W |
| Combined power (+5v): | 130 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Depth: | 125 mm |
| Eps power connector (8-pin): | Yes |
| Fan diameter: | 12 cm |
| Fan location: | Top |
| Input current: | 10 - 5 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 52 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 8 |
| Pci express power connectors (6+2 pin): | 1 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Total power: | 750 W |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
