Technical data:
System: LXT 18V
Supply voltage: 18V
Battery Type: Li-ion
Frequency of idling jumps: 0 - 1,900 strokes/min
Minimum cutting radius:
Outer edge: 50 mm
Inner edge: 45 mm
Maximum cutting capacity:
Steel with tensile strength up to 400 N/mm2: 1.6 mm (16 g)
Steel with tensile strength up to 600 N/mm2: 1.2 mm (18 g)
Aluminium with tensile strength up to 200 N/mm2: 2.5 mm (12 g)
Weight (EPTA): 1.9 - 2.1 kg
Dimensions:
Length: 313 mm
Width: 78 mm
Height: 189 mm
For cutting straight corrugated and trapezoidal sheet metal
Easy-to-use switch with lock function
Narrow motor housing allows for comfortable and safe grip of the tool
Battery level LED
Anti-restart function protects against accidental start-up
Ergonomically contoured handle
Easy punch and die replacement
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)

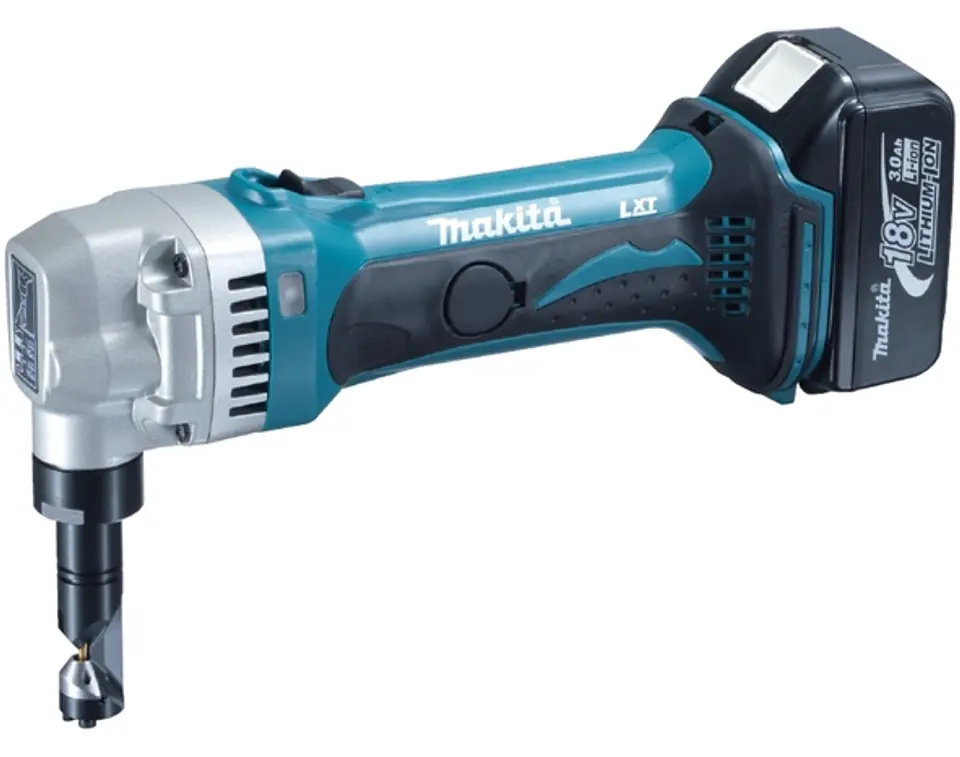

DJN161 - jumping shears for sheet metal 18V LXT
Punch holder
Stamp (A-83951)
Matrix (A-15051)
SW 32 key
Allen Key 2.5
2x BL1830 - batteries 18V / 3.0Ah Li-Ion
DC18RC - Li-Ion charger
MAKPAC system case
Calibration cartridge for system case
Polish User Manual
**
