Technical data:
Impact energy, max.: 2.6 J
Number of strokes at nominal speed: 0 – 4.350 min-1
Nominal speed: 0 – 980 min-1
Battery voltage: 18V
Workstation holder: SDS plus
About drilling with drill bits for concrete hammers: 4 – 26 mm
Optimal drilling range for drill bits for concrete drills: 8 – 16 mm
Max. drilling diameter in metal: 13 mm
Max. About drilling in wood: 30 mm
Higher power, more comfort and less dust emissions
Efficient Bosch EC motor, thanks to which up to 153 holes in concrete (6 x 40 mm) can be drilled on one battery charge cycle (4.0 Ah)
Low weight (only 3.5 kg) and compact design ensure comfortable work
Highest chiselling capacity in its class (12 kg/h)
Cardboard box
Depth limiter 210 mm 1 613 001 010
Additional handle 2 602 025 141
Machine cloth
Quick-change chuck 13 mm 2 608 572 212
Replaceable SDS plus 2 608 572 213 chuck
**
No battery or charger.

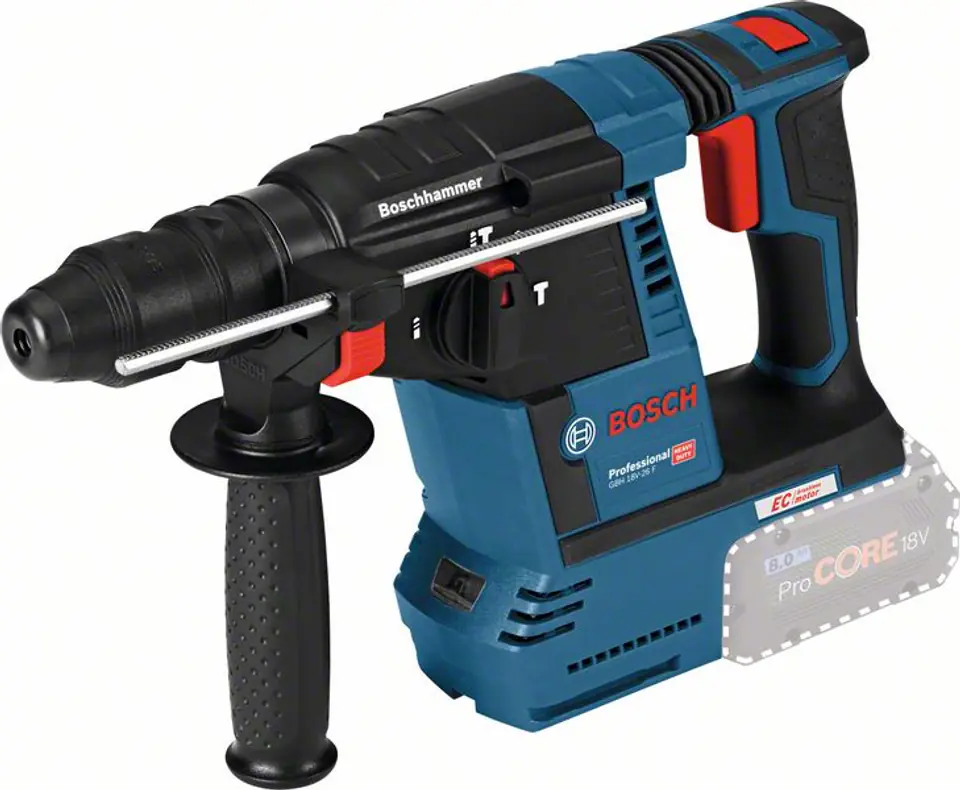

The photo has an illustrative function.
