Technical data:
System: LXT 18V
Supply voltage: 2x 18 = 36 V
Battery Type: Li-ion
Tool holder: SDS-PLUS
Idle speed: 0 - 980 rpm
Frequency of idling strokes: 0 - 5,000 ud/min
Impact energy (EPTA): 2.8 J
Maximum drilling diameter:
In steel: 13 mm
In wood: 32 mm
Maximum drilling diameter of concrete:
Solid drill: 28 mm
Crown: 54 mm
Diamond crown: 65 mm
Overall length: 373 mm
Weight (EPTA): 3.9 - 5.1 kg
Noise and vibration (concrete):
Sound Power Level Error : 3 dB(A)
Sound pressure level error : 3 dB(A)
Vibration level error 1.5 m/s2
Sound power level : 104 dB(A)
Sound pressure level : 93 dB(A)
Vibration level:
Impact drilling in concrete (ah, HD): 9.0 m/s2
Impact drilling in concrete using DX03 (ah, HD): 8.0 m/s2
Side handle shoe (ah, Cheq): 8.5 m/s2
Drilling in metal (ah,D): 2.5 m/s2
3 operating modes: drilling, impact drilling and forging
BLDC - brushless DC motor
XPT Technology - Increased Resistance to Dust and Moisture
AVT Anti-Vibration Technology
System Soft No Load
Speed control with switch trigger and knob
Sliding handle for easy tool change
Possibility to use the DX08 dust extraction kit (optional)
Two integrated LEDs illuminating the working area with delayed blanking function
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)
REMARK! The device is powered by two Makita LXT 18V batteries. Two batteries from the Makita LXT 18V series are required for the tool to work.

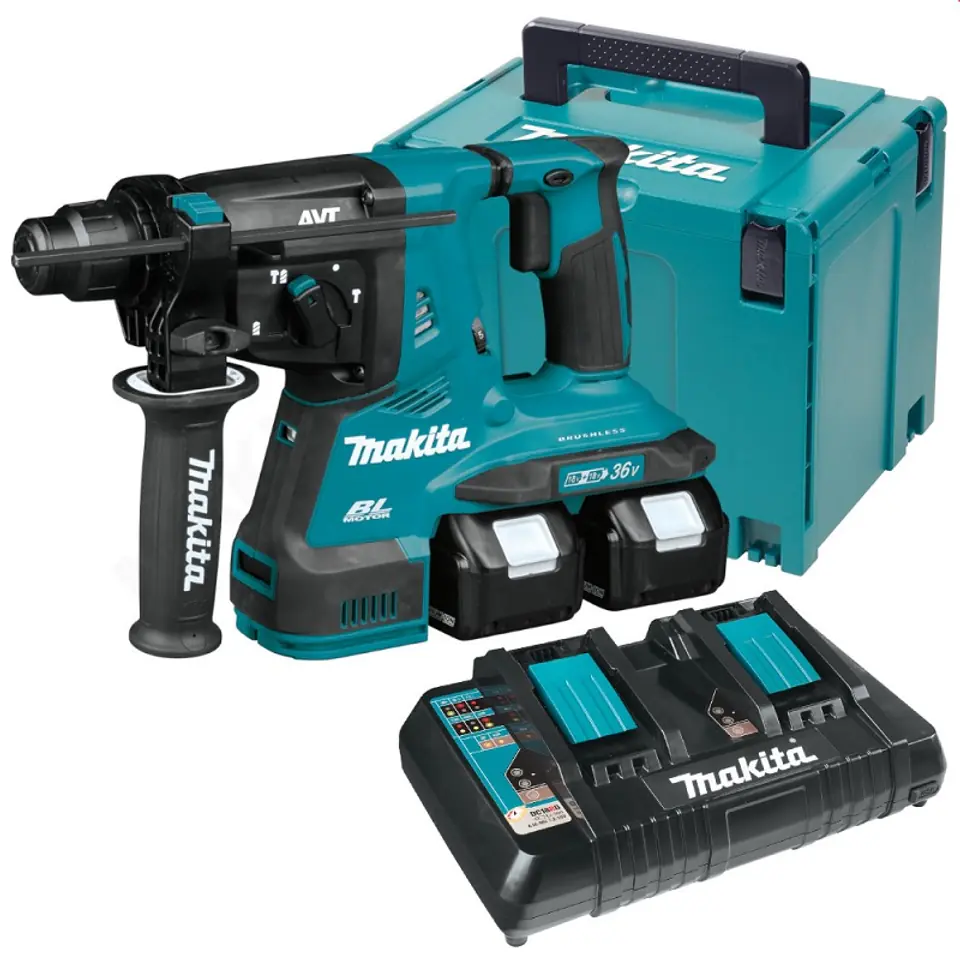

DHR280 - rotary hammer drill SDS-PLUS 2.8J 2x18V Li-Ion
Sds-plus mount (mounted)
Anti-vibration side handle
Depth limiter (331886-4)
Drill grease and chisel (198993-4)
Cloth (443122-7)
2x BL1850B - 18V / 5.0Ah Li-Ion batteries with charge indicator
DC18RD - Dual-Port Li-Ion Fast Charger
MAKPAC system case
Calibration cartridge for system case
**
