Technical data:
System: LXT 18V
Voltage (V): 2x 18 = 36
Battery Type: Li-ion
Tool holder: SDS-PLUS
Idle speed (rpm): 0 - 980
Frequency of idling strokes (ud/min): 0 - 5000
Impact Energy (EPTA) (J): 2.8
Maximum drilling diameter:
Maximum drilling diameter in steel (mm): 13
Maximum drilling diameter in wood (mm): 32
Maximum drilling diameter of concrete:
Solid drill bit (mm): 28
Lace (mm): 54
Diamond crown (mm): 65
Total length (mm): 373
Weight (EPTA) (kg): 3.9 - 5.1
Noise and vibration (concrete):
Sound Power Level Error : 3 dB(A)
Sound pressure level error : 3 dB(A)
Vibration level error 1.5 m/s2
Sound power level : 104 dB(A)
Sound pressure level : 93 dB(A)
Vibration level:
Impact drilling in concrete (ah, HD): 9.0 m/s2
Impact drilling in concrete using DX03 (ah, HD): 8.0 m/s2
Side handle shoe (ah, Cheq): 8.5 m/s2
Drilling in metal (ah,D): 2.5 m/s2
3 operating modes: drilling, impact drilling and forging
BLDC - brushless DC motor
XPT Technology - Increased Resistance to Dust and Moisture
AVT Anti-Vibration Technology
System Soft No Load
Speed control with switch trigger and knob
Sliding handle for easy tool change

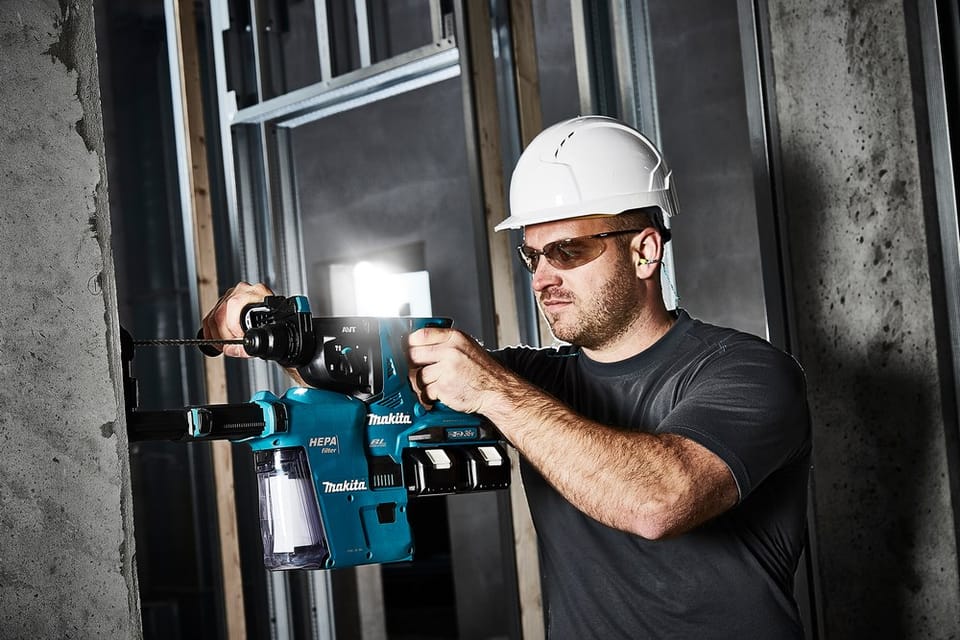

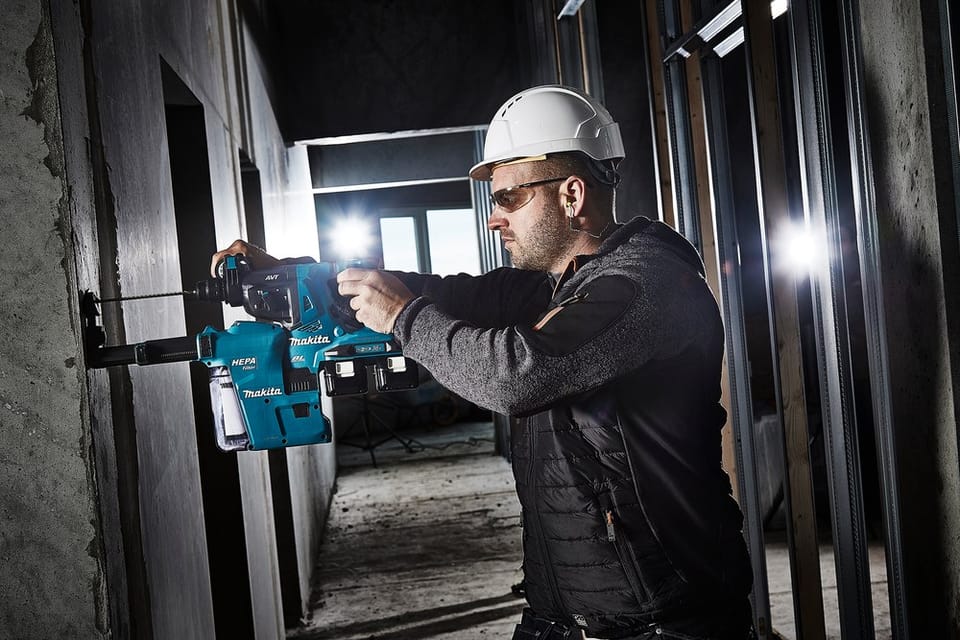

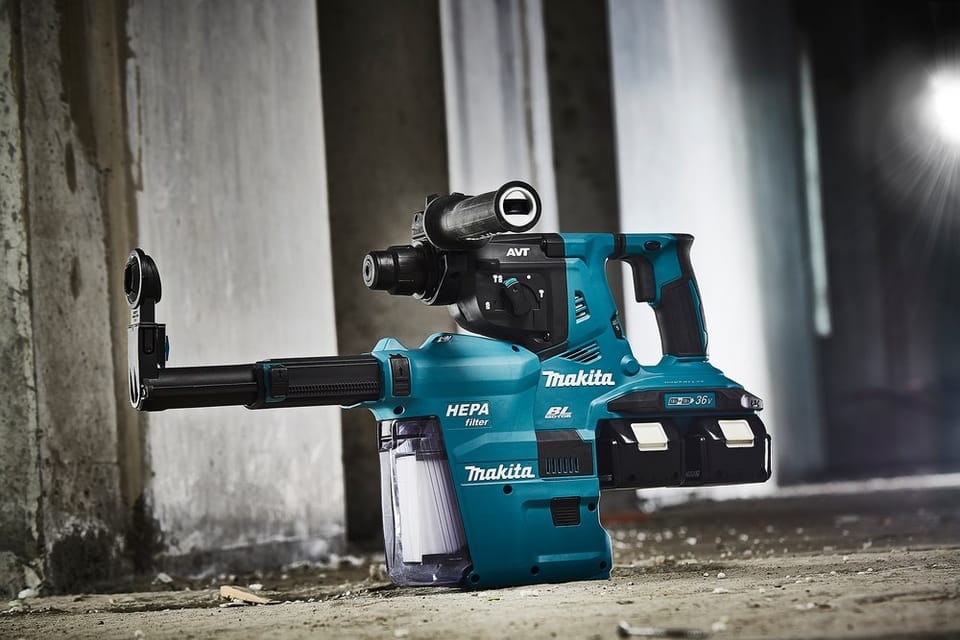

Possibility to use the DX08 dust extraction kit (optional)
Two integrated LEDs illuminating the working area with delayed blanking function
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)

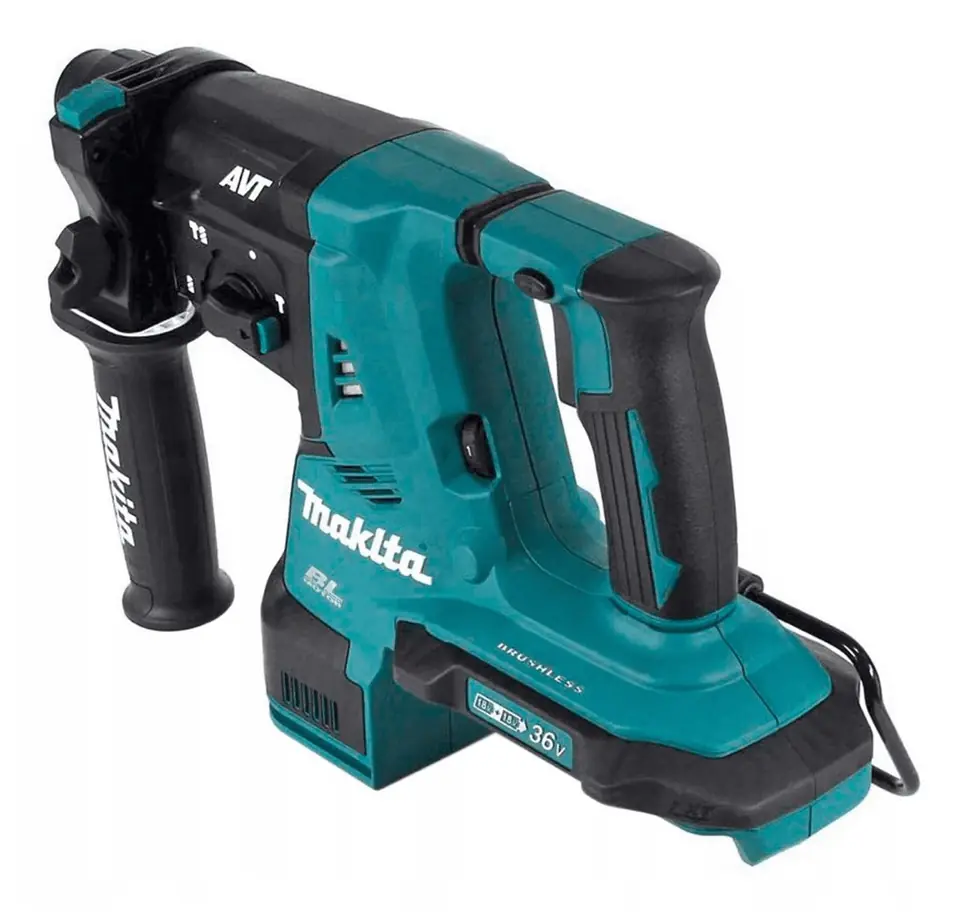

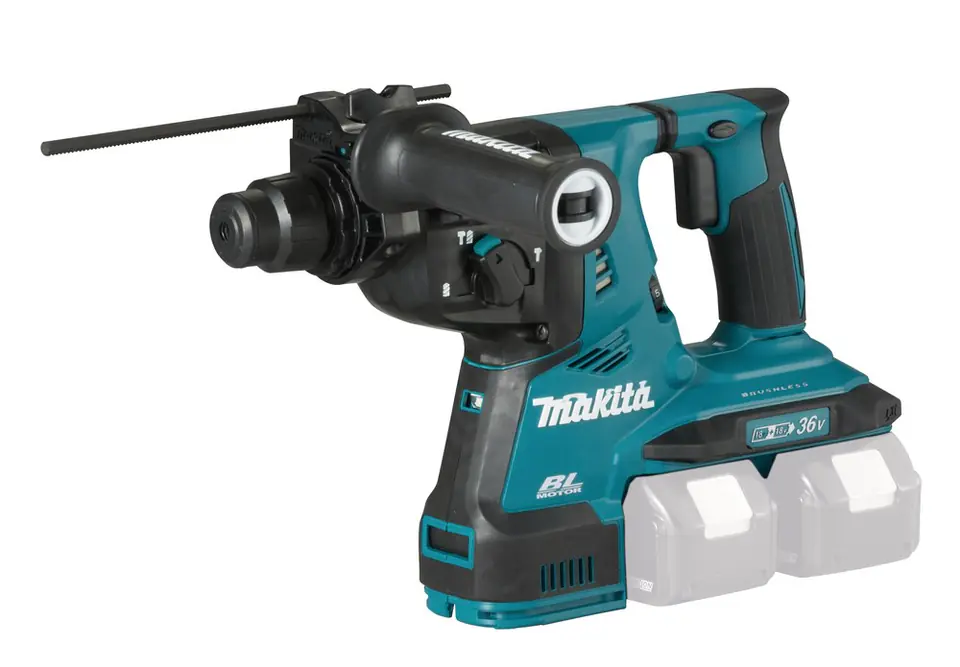

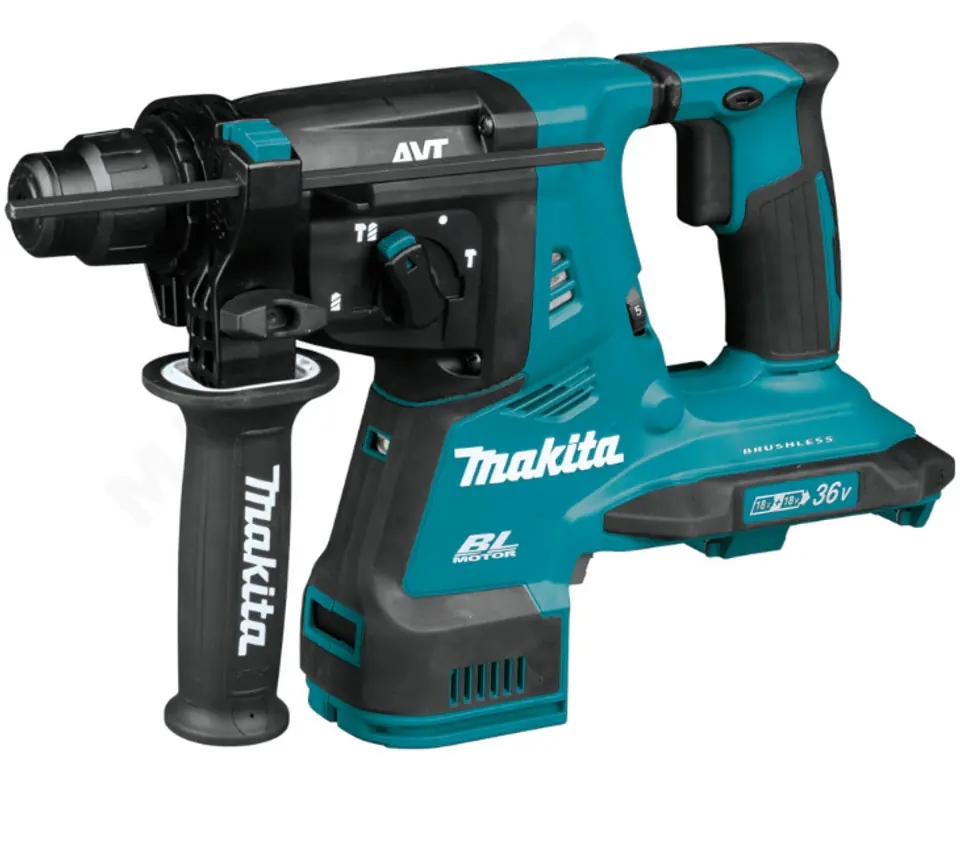

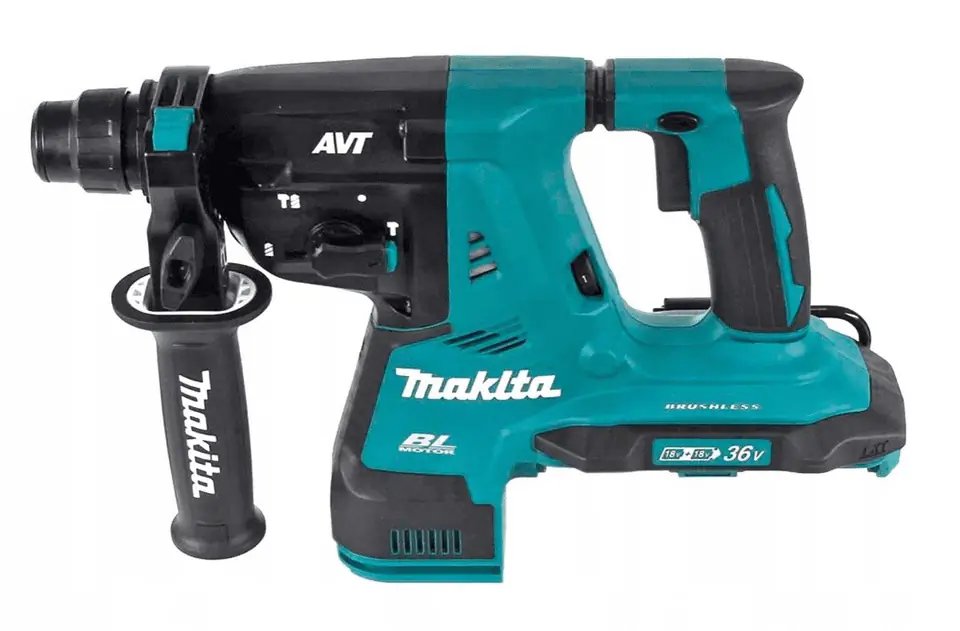

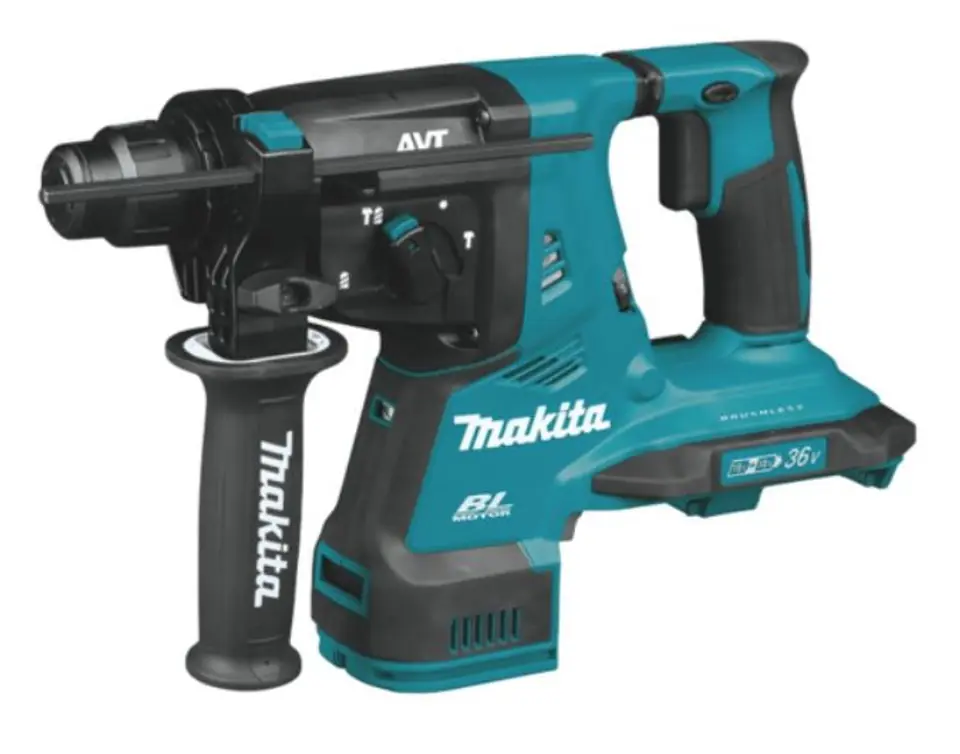

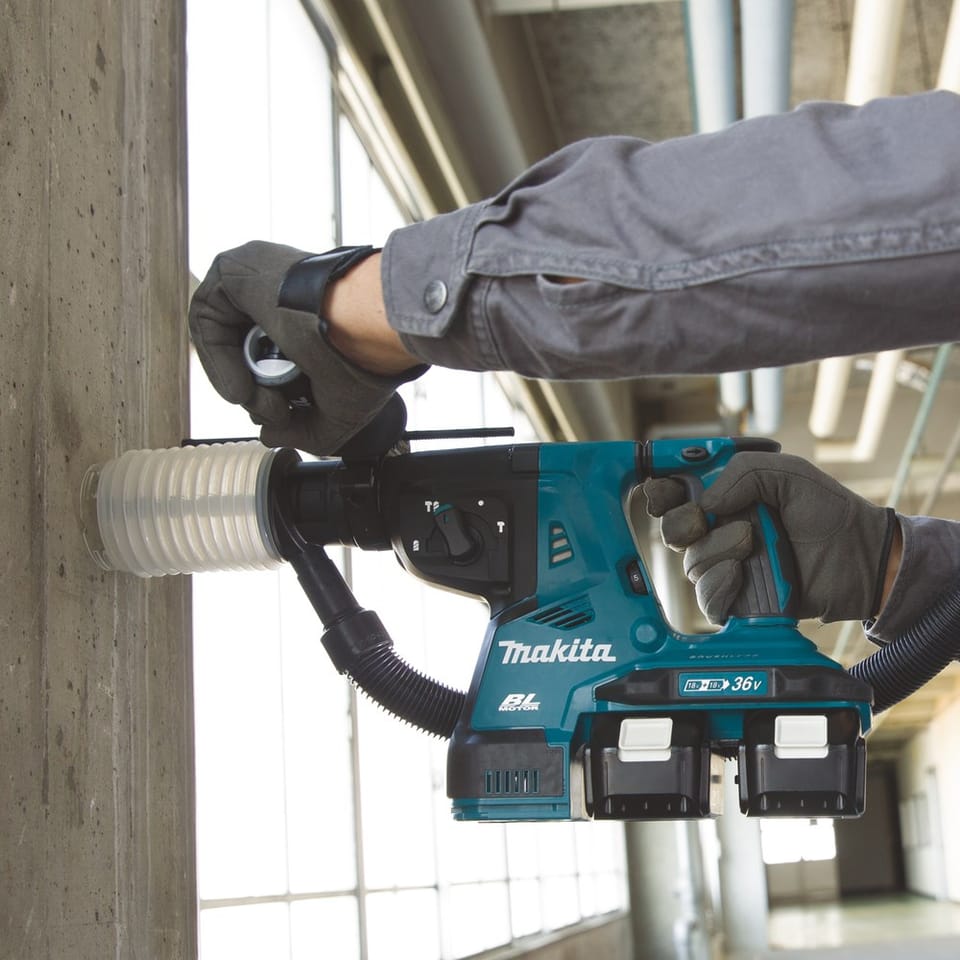

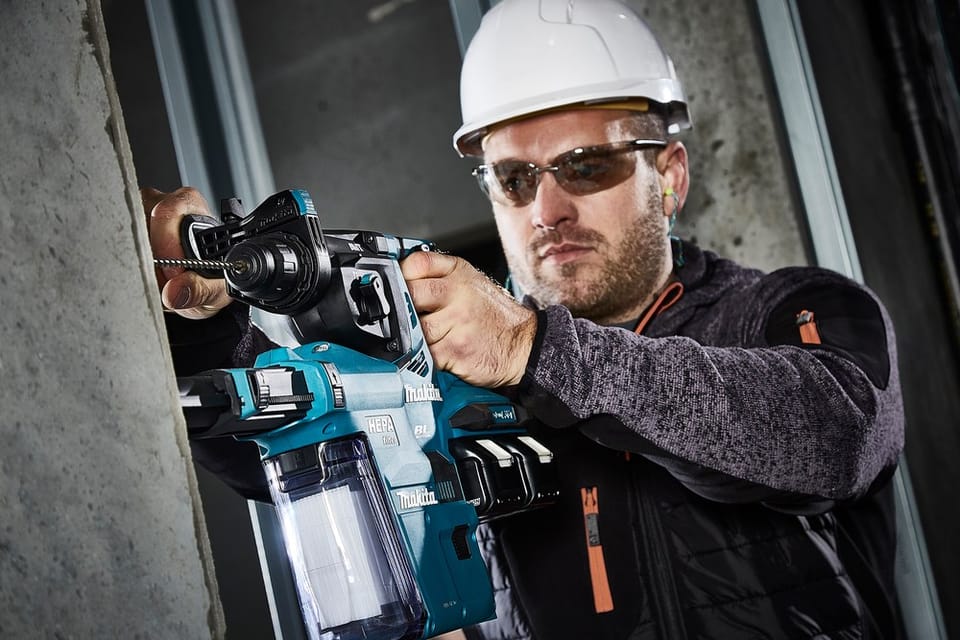

Rotary hammer DHR280
Sds-plus mount (mounted)
Anti-vibration side handle
Depth limiter (331886-4)
Drill grease and chisel (198993-4)
Cloth (443122-7)
**
No batteries, charger or suitcase.
The photo has an illustrative function.
