Technical data:
System: LXT 14.4V / LXT 18V
Supply voltage (V): 14.4 / 18
Battery Type: Li-ion
Tie wire diameter (mm): 0.8
Diameter of bonded rebar: From 10 mm x 10 mm to (13 mm x 2) x (13 mm x 2)
Estimated number of bonds per spool: about 120
Binding force adjustment: 6-step
Total length (mm): 304
Works with batteries:
LXT 14.4V: BL1415, BL1415N, BL1430, BL1430B, BL1440, BL1450, BL1460B
LXT 18V: BL1815, BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840, BL1840B, BL1850, BL1850B, BL1860B
Weight (EPTA) (kg): 2.3 - 2.6
No batteries or charger.
BLDC - brushless DC motor
XPT Technology - Increased Resistance to Dust and Moisture

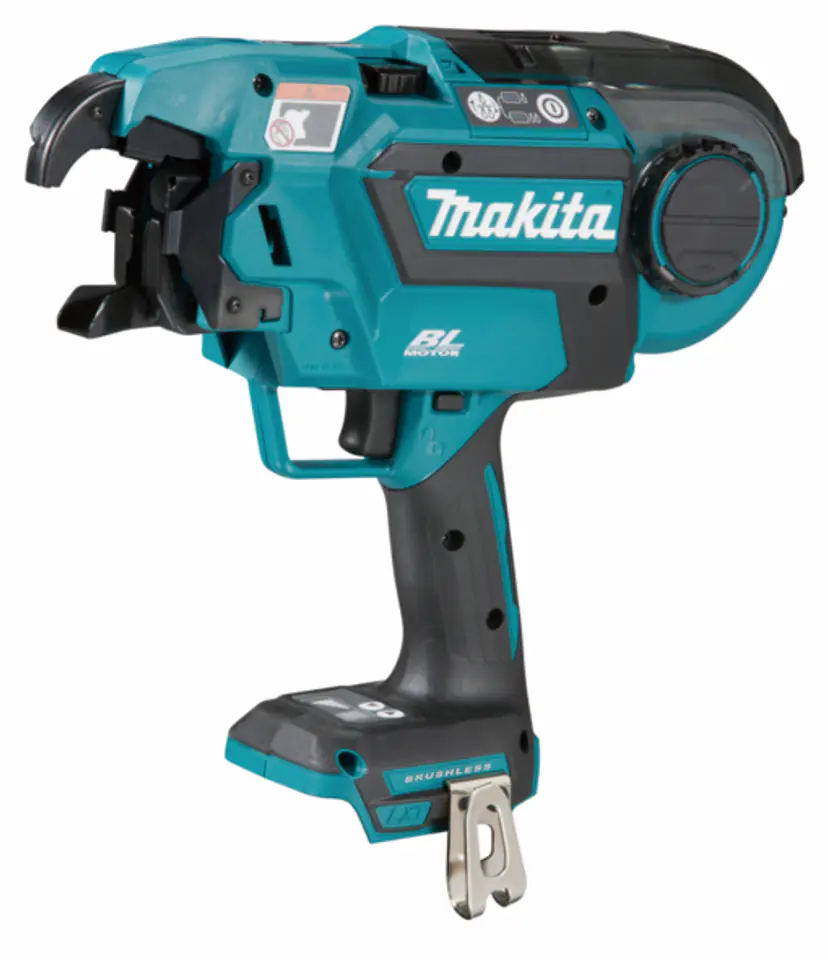

A device designed for automatic binding of reinforcing bars used, for example, in the construction of concrete foundations
Can be powered by 14.4V and 18V Li-Ion batteries
One-handed operation of the device allows you to correct the reinforcement position with a free hand
6-step binding force adjustment
2 wire binding modes: continuous binding mode and single binding mode
Switching the binding mode with a button, signaling the selected mode with the controls
Main power switch with auto power off function
Possibility to store an Allen key in the body of the device
Easy replacement of the connecting wire spool
Ergonomically designed handle covered with elastomer
Strap holder (346449-3)
Allen Key 2.5 (783208-8)

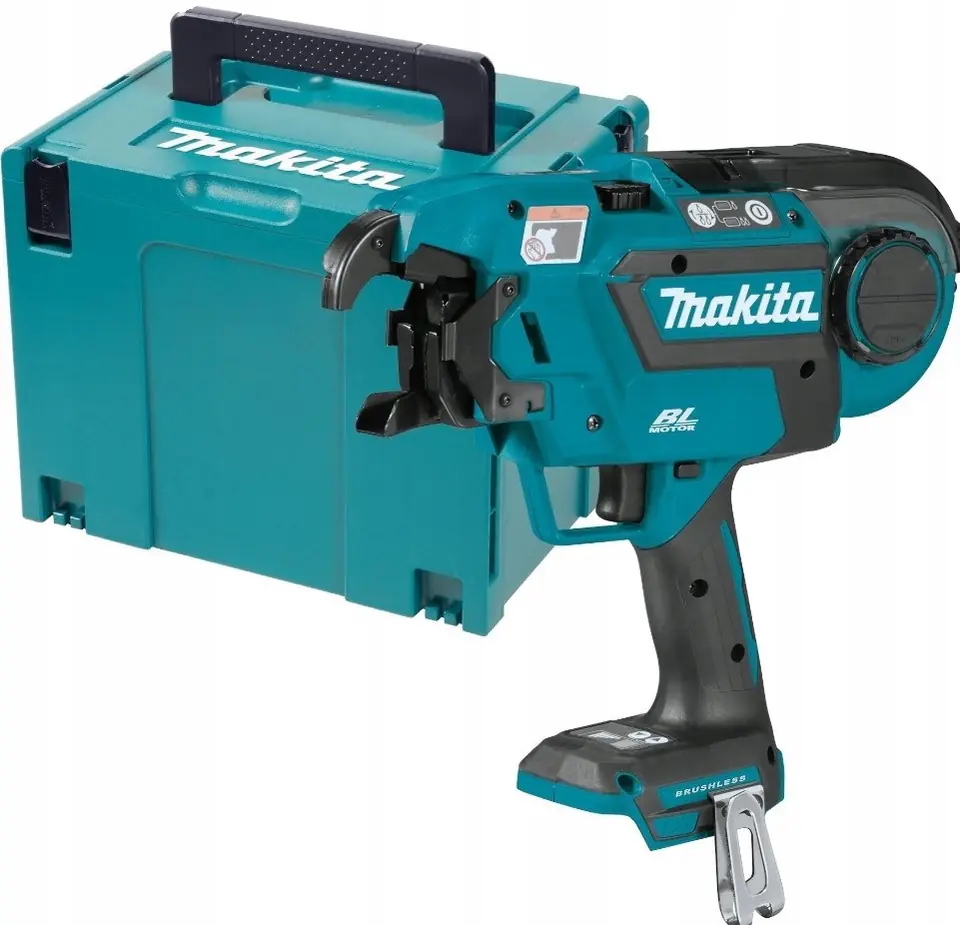

MAKPAC Type 4 System Case (821552-6)
MakPAC case insert
**
The photo has an illustrative function.
