Technical data:
Supply voltage: 18V
Battery Type: Li-Ion
Supported Batteries: 1.5/2.0/3.0/4.0/5.0/6.0Ah
Speed idling: 8800rpm
Dial Diameter: 125mm
Bore diameter: 20mm
Max. cutting depth: at 45°: 27 mm
at 90°: 40mm
Dimensions (total length): 283mm
Weight (EPTA): 2,5 – 3,0kg

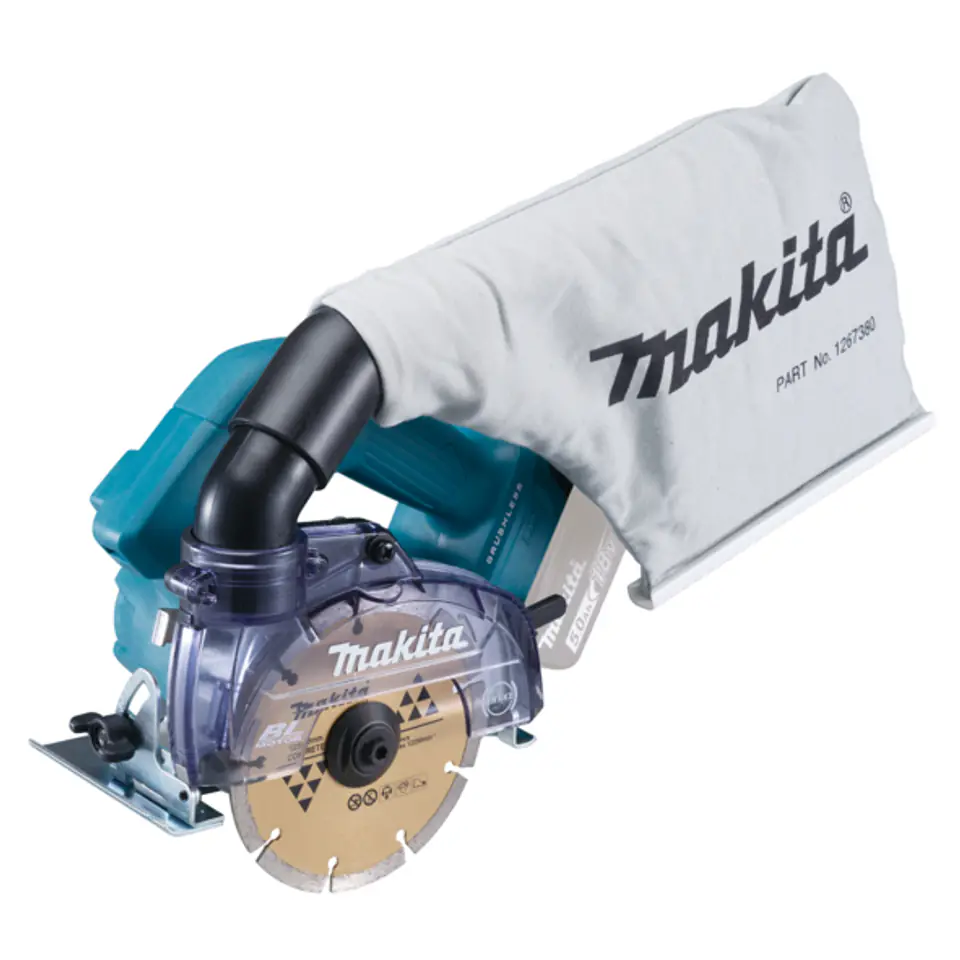

Cordless diamond blade cutter based on the 4100KB mains model
BLDC - brushless DC motor
XPT Technology - Increased Resistance to Dust and Moisture
ADT - Automatic Torque Drive Technology - automatically adjusts speed and torque during operation
AWS function - Auto-start Wireless System - allows you to wirelessly connect the vacuum cleaner and power tools using bluetooth so that the vacuum cleaner starts when you start the power tool
8800 rpm speed for cutting performance similar to the DGA504 cordless angle grinder
Dust cover to prevent dust dispersion
Angle cutting up to 45°
Base plate made of steel
Spindle lock for easy blade replacement
360° rotatable suction connection for connecting a vacuum cleaner or dust bag
LED illuminating the cutting line with delayed blanking function
Possibility of using a water tank for wet cutting (option, cat. no. 191M48-2)
Possibility of cooperation with the guide rail after using the adapter (optionally, using the adapter no. 198673-2)
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)
Supplied without shield, batteries and charger
**
