Technical data:
System: LXT 18V
Battery Voltage: 18V
Battery Type: Li-ion
Supply voltage: 36V (2x 18V battery)
Requires two batteries to work: Yes
Dial diameter: 185 - 190 mm
Dial Hole Diameter: 30mm / 20mm
Idle speed: 6000 rpm
Maximum cutting depth:
At 45°: 43.0 - 44.5 mm
At 48°: 41.0 - 42.0 mm
At 90°: 60.0 - 62.5 mm
Dimensions (L x W x H): 348 mm x 210 mm x 290 mm
Weight (EPTA): 4.5 - 5.1 kg
Noise and vibration:
Sound pressure level error: 3 dB(A)
Sound Power Level Error: 3 dB(A)
Vibration level error: 1.5 m/s2
Sound pressure level: 93 dB(A)
Sound power level: 104 dB(A)
Vibration level when cutting wood: 2.5 m/s2 or less
Vibration level when cutting metal: 2.5 m/s2 or less

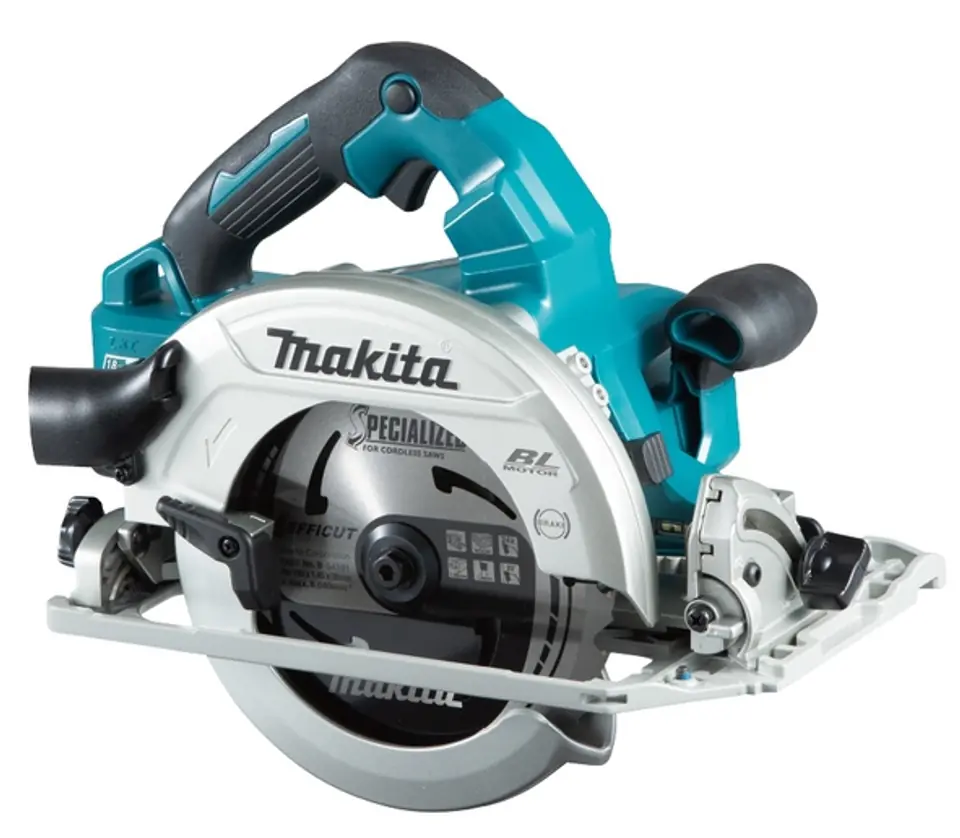

Lightweight and compact Makita DHS782 cordless circular saw, powered by 2 LXT 18V Li-Ion batteries. BLDC - brushless DC motor.
XPT technology - increased resistance to dust and moisture.
ADT - Automatic Torque Drive Technology - automatically adjusts the speed and torque during operation.
Angular cutting up to 48°. Soft start and electric brake.
Chip blowing function from the cutting line.
Dual LED illuminating the cutting line.
Possibility of cooperation with the guide rail without the use of an adapter.
In this set it is sold in the BODY version without batteries and charger.
Designed for users who already have a charger and 18V batteries from the professional LXT series, e.g.: MAKITA BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840, BL1840B, BL1850, BL1850B, BL1860B.
Lightweight and compact 190 mm cordless circular saw, powered by 2 18 V Li-Ion batteries
BLDC - brushless DC motor
XPT Technology - Increased Resistance to Dust and Moisture
ADT - Automatic Torque Drive Technology - automatically adjusts speed and torque during operation
Angle cutting up to 48°
Conveniently located lock button
Soft start and electric brake
Chip blowing function from the cutting line
Improved visibility of the cutting line by repositioning the front handle
Useful scales to inform the user about the location of the blade, the depth of the cut and the inclination of the blade
LED to indicate ADT status to the user:
High torque mode - LED light up
High speed mode - LED off
Overload alarm - blinking LED
Dual LED illuminating the cutting line
Battery charge indicator separate for each battery
Possibility of cooperation with the guide rail without the use of an adapter
Possibility to reverse the fixing ring to apply a 20 mm handle.
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)
REMARK! The device is powered by two MAKITA LXT 18V batteries.
The motor of the device operates at a voltage of 36V, two Makita batteries from the LXT 18V series are required at the same time.
Batteries can have different capacities and degrees of charge.
The device will turn off when at least one battery is completely discharged.
Parallel Guide (164095-8)
Suction connection (196520-1)
Allen Key 6 (783204-6)
Cutting disc "EFFICUT" 190x30mm 24z (B-64185)
**
Without batteries, charger and case
