Technical data:
Supply voltage: 18V
Battery Type: Li-ion
Supported Batteries: 1.5/2.0/3.0/4.0/5.0/6.0Ah
Speed idling: 5000rpm
Maximum cutting depth: at 45°: 41 mm
at 50°: 37 mm
at 90°: 57 mm
Dial Diameter: 165mm
Dial Hole Diameter: 20mm
Dimensions (total length): 350mm
Weight (EPTA): 3,0 - 3,3kg
Product features:
BLDC - brushless DC motor

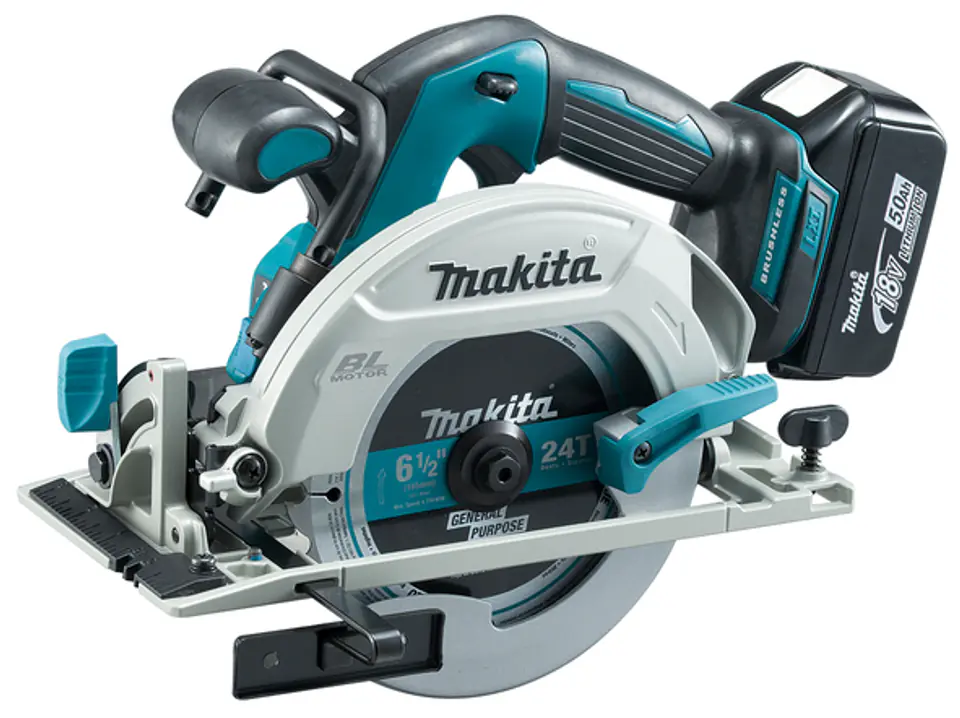

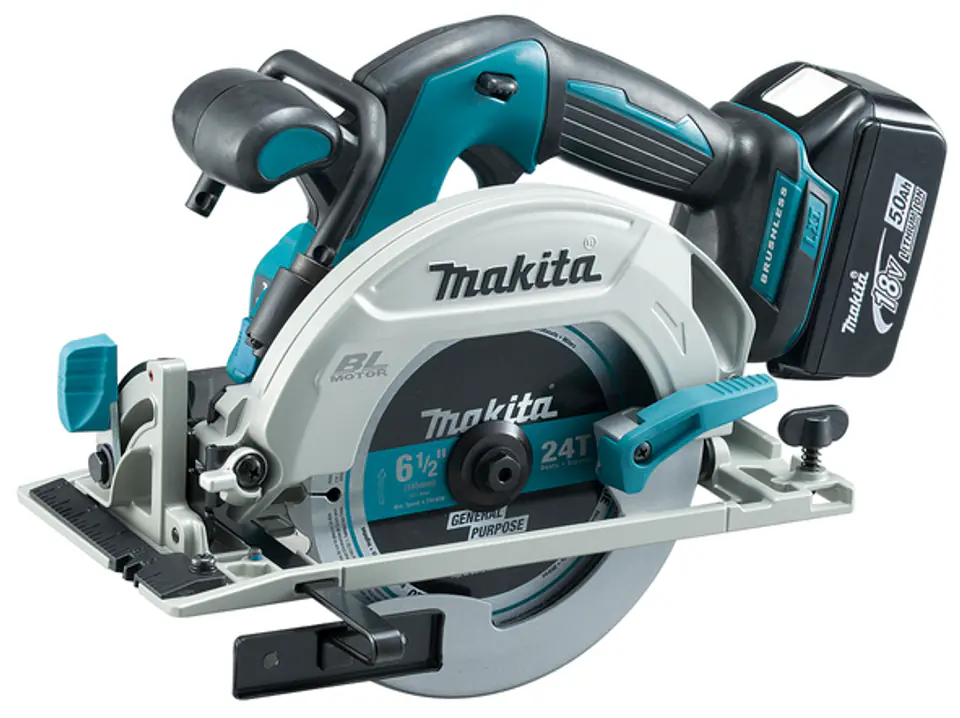

Lightweight and compact circular saw 165 mm
Angle cutting up to 50°
Automatic speed control depending on the load
Large, easy-to-use lock lever
Larger base for more stable operation, also with a guide rail
Visible scale makes it easy to set the cutting depth
Easy to drive in the material thanks to a double LED illuminating the cutting area and a nozzle that blows dust from the cutting line
Disc guard made of durable and lightweight magnesium alloy
Battery level indicator
Does not work with BL1811G, BL1813G, BL1815G batteries (without electronics) and BL1815 battery (18 V / 1.3 Ah)
Supplied in MAKPAC system case with 2 BL1850B batteries (18 V / 5.0 Ah) and DC18RC charger
Parallel guide 164095-8
Charger dc18rc 195584-2
Connection connection of the suction device 196961-1
Allen key 5783203-8
Macpac system case type 3 821551-8
Insert for makpac suitcase 838182-6
Cutting disc 165x20mm 24z a-85101
2 bl1850b batteries (18 v / 5.0 ah)
**
