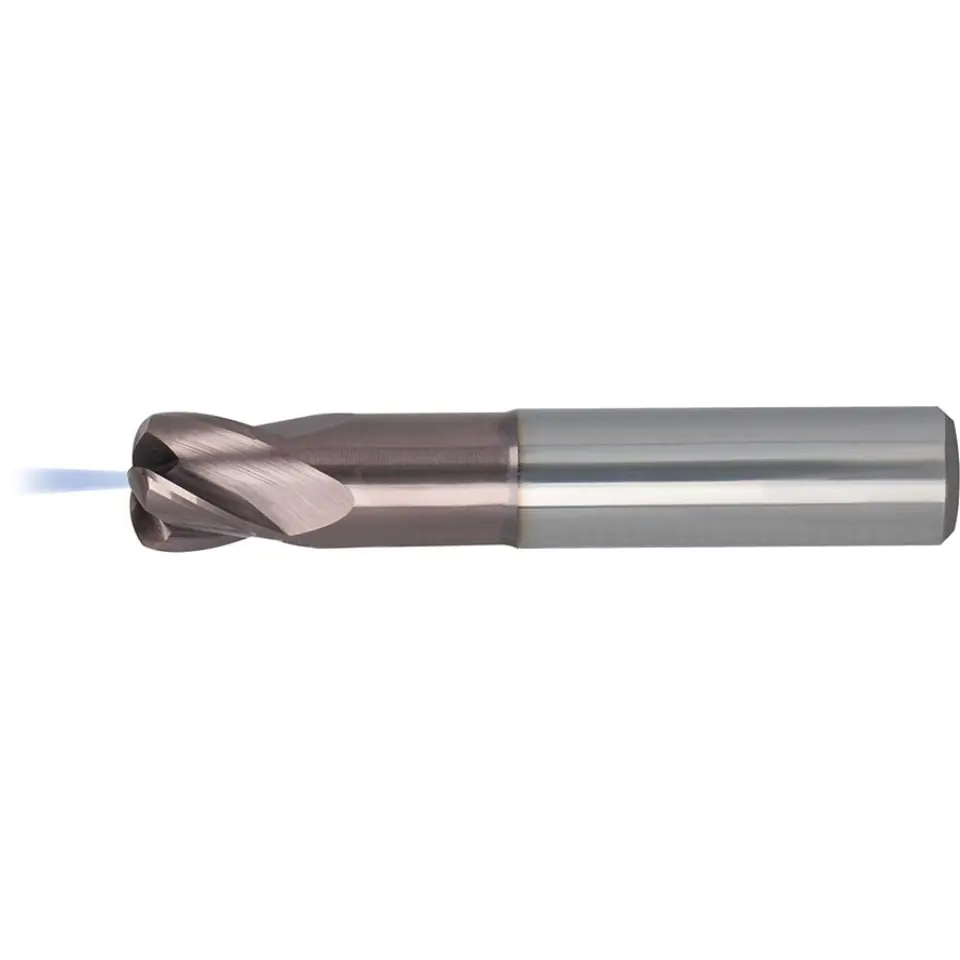

Mandrel cutter, solid carbide, corner radius
Application: for HSC high-speed roughing.
Note: for INOX treatment, use cooling.
Copy cutter HSC WNpelnow.Signum HA 4-blade long 10/2mm GÜHRING
€105.69
Shipping from warehouse: B6
Estimated shipping: Wed, Dec 25 - Mon, Dec 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9067710100000 / 4049844180819
Share this product:

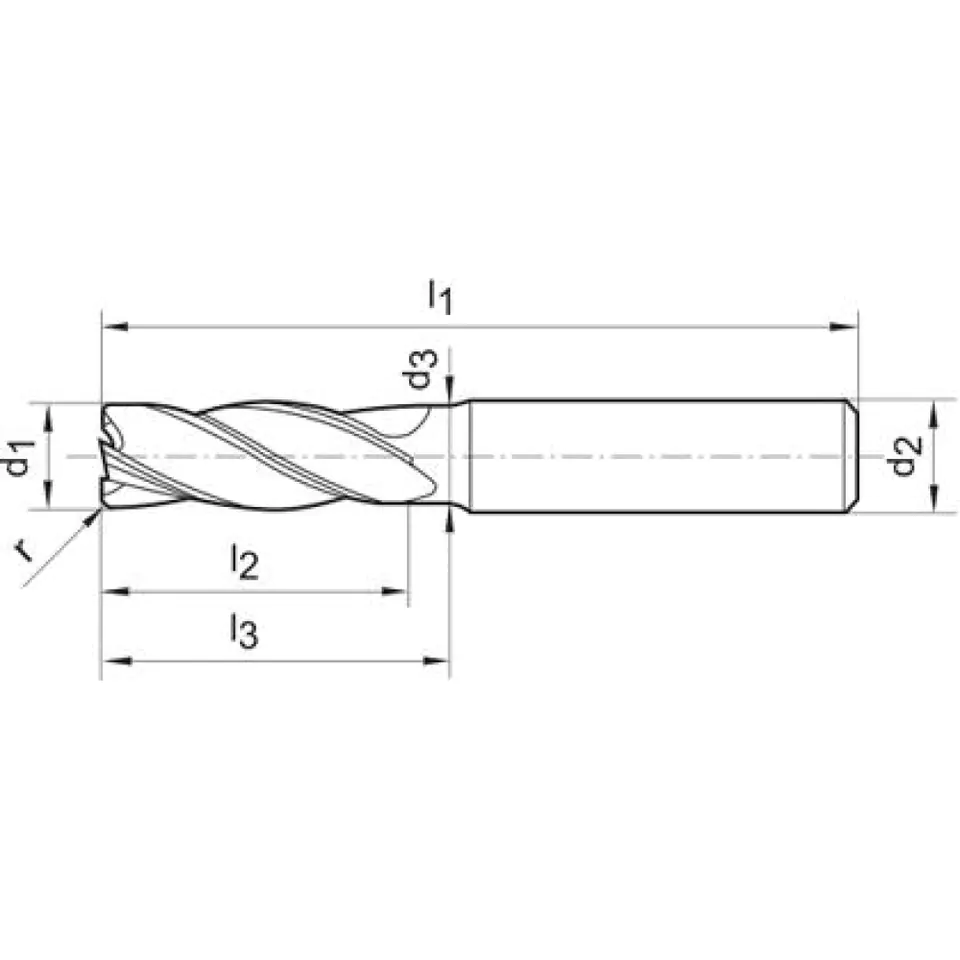

Specification
| Always < 1000 n/mm²: | 170 |
|---|---|
| Always < 700 n/mm²: | 230 |
| Cast iron gg/gts: | 180 |
| Corner radius r: | 2 mm |
| Cutting part length l2: | 8 mm |
| Diameter d1 = h 10: | 10 mm |
| Ggg cast iron: | 40 |
| Grip ø d2 = h6: | 10 mm |
| Hardened steels < 55 hrc: | 100 |
| Hardened steels < 60 hrc: | 90 |
| Inox austenite.: | 60 |
| Inox ferrite./martenz.: | 90 |
| No: | 9067710100000 |
| Ø neck d3: | 9.5 mm |
| Shell: | Signum |
| Stink constriction l3: | 30 mm |
| Total length l1: | 72 mm |
