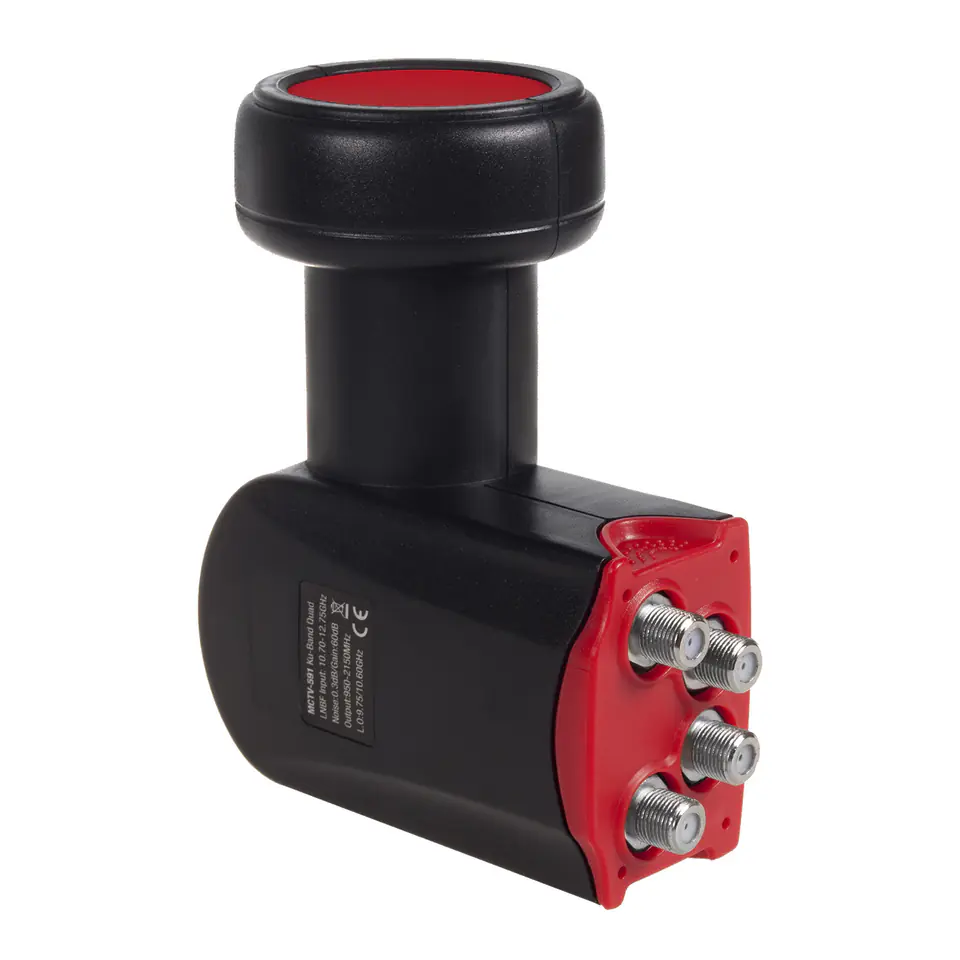

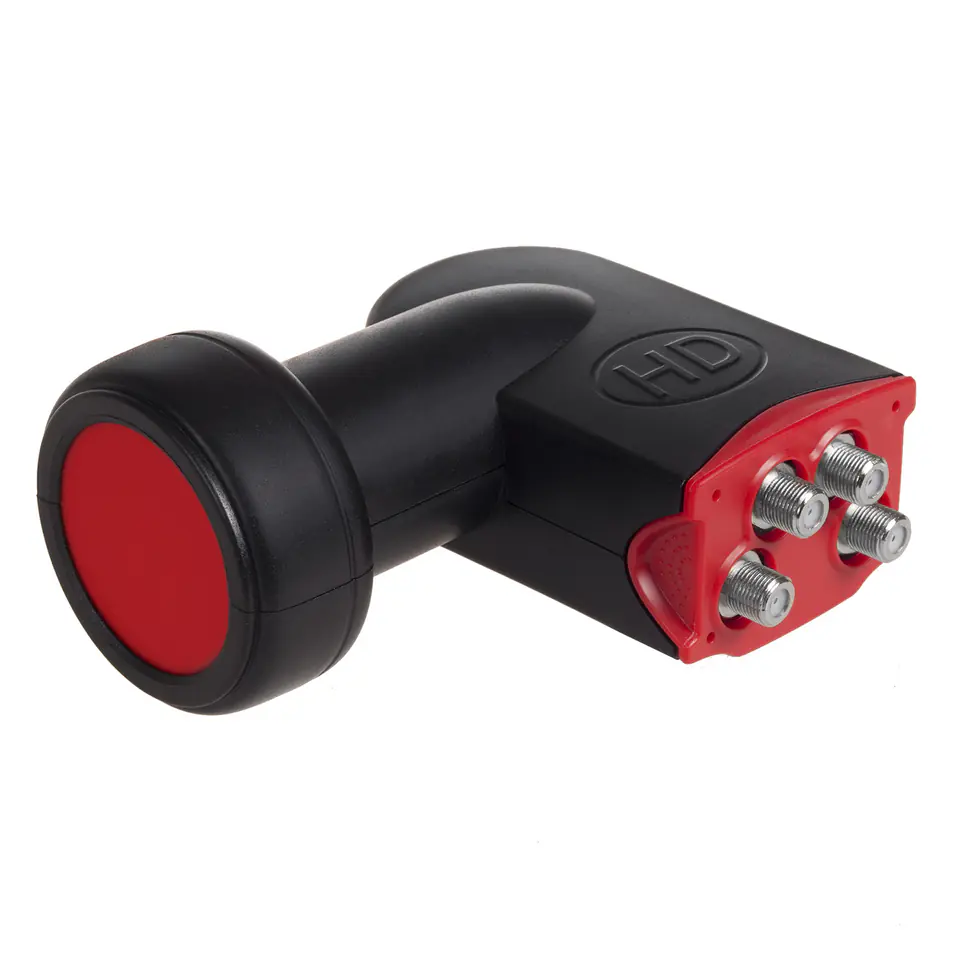

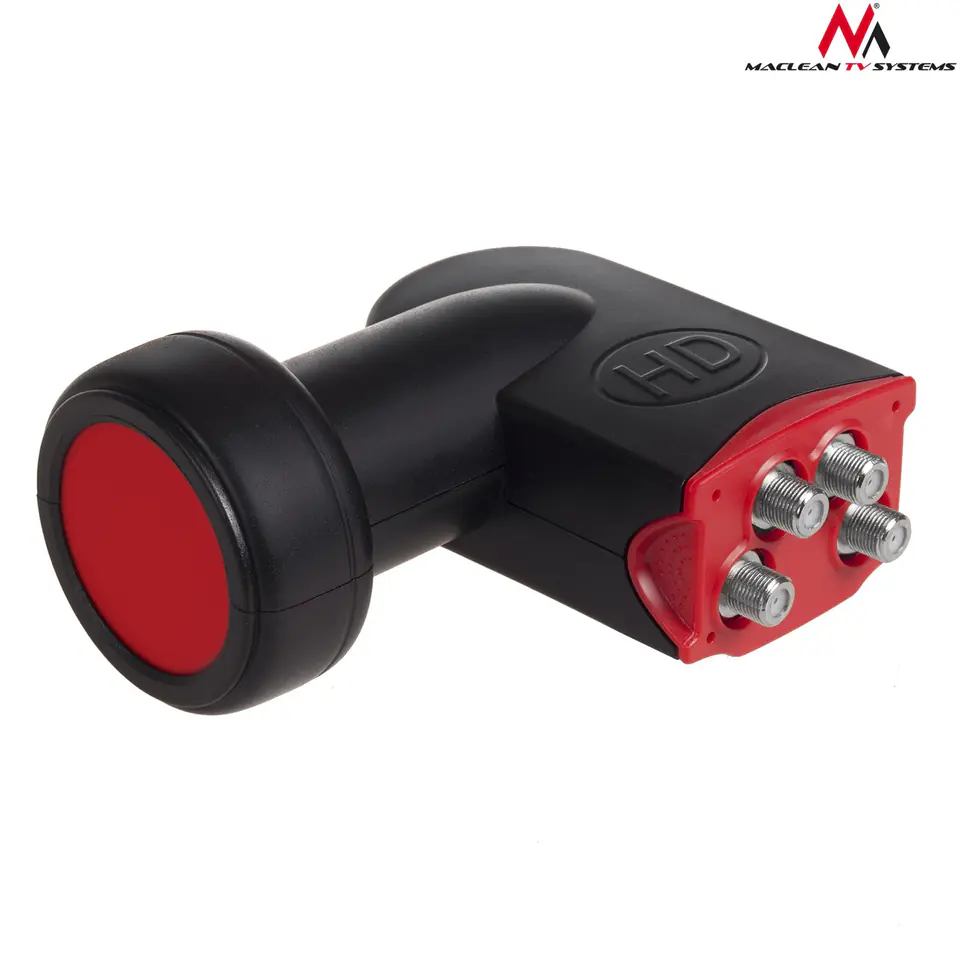

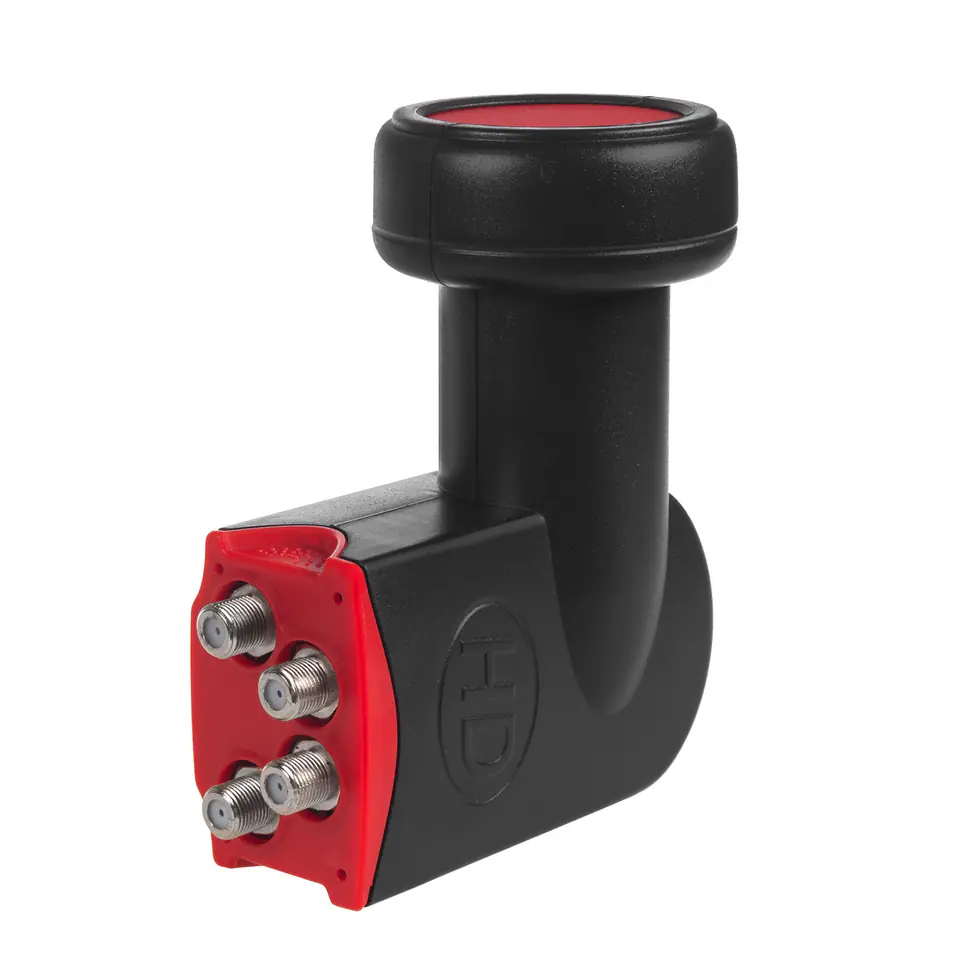

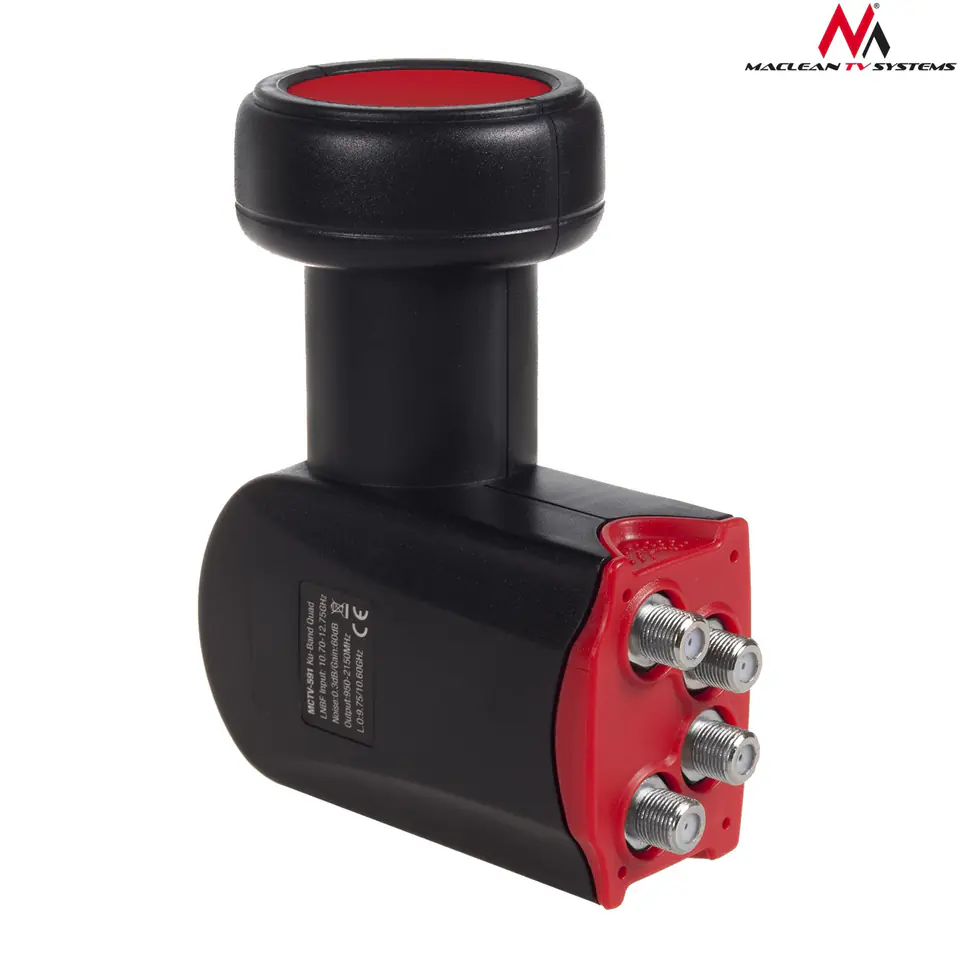

The quad type satellite converter has four full-range converters connected in one housing. The McTV-591 Quad Maclean Converter is a premium device with a very low noise ratio. It can easily cope with the reception of HD signals. The converter is attached to the satellite dish in a standard 40 mm mount.

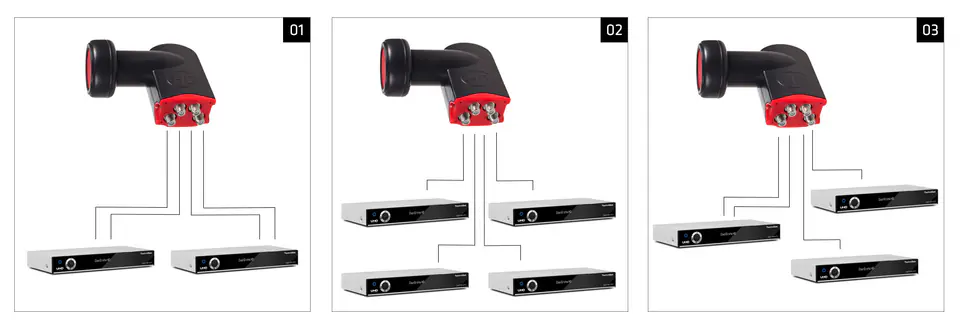

The Maclean MCTV-591 QUAD converter is a high-end branded device. The converter is one of the leaders in the world in terms of parameters and workmanship. Characterized by a low phase noise coefficient. The QUAD converter allows independent reception of signals from one satellite on 4 tuners.
Technical Specifications
- Red Point Quad Satellite Converter
- Lower band - input: 10.7 - 11.7 GHz
- Lower band - output: 950 - 1950 MHz
- Bottom oscillator: 9.75 GHz
- Upper band - input: 11.7 - 12.75 GHz
- Upper band - output: 1100 - 2150 MHz
- Top Oscillator: 10.6 GHz
- Gain: 60 dB
- VSWR: 2.5:1 (max)
- Operating temperature: -30/70°C
- Warranty: 2 years
