| A set of layouts: | WCH382 |
|---|---|
| Chipset: | WCH382 |
| Db25f - lpt port: | 1 |
| Db25f port to lpt: | 1 |
| Depth: | 120 mm |
| Dimensions: | 120 x 78 x 18 mm |
| Equipment: | Low profile bracket |
| Expansion card form factor: | Full-height / Low-profile |
| Expansion card standard: | PCIe 3.0 |
| Expansion card standard: | PCIe 3.0 |
| Expansion card tray size: | Full height/low profile |
| External connectors: | 1x RS-232, 1x D-Sub 25-pin |
| Further reading: | Chipset: WCH382 |
| Height: | 18 mm |
| Interface: | PCI Express x4, v.3.0 |
| Interface type: | PCI-Express 3.0 x4 |
| Internal: | Yes |
| Internal connectors: | PCI-Express |
| Manufacturer's warranty: | 24 months |
| Mass: | 40g |
| Other parameters: | Compliance with standards: ISO 9002, RoHS |
| Output interface: | Serial |
| Port rs-232: | 1 |
| Product colour: | Silver |
| Product depth: | 120 mm |
| Product height: | 18 mm |
| Product weight: | 40 g |
| Product width: | 78 mm |
| Quantity: | 1 |
| Rs-232 ports: | 1 |
| Supported operating systems: | Windows 7, Windows 8, Windows 10 |
| Supported windows operating systems: | Windows 8, Windows 10, Windows 7 |
| Warranty: | 2 years |
| Weight: | 40 g |
| Width: | 78 mm |
| Windows operating systems supported: | Windows 10, Windows 8, Windows 7 |

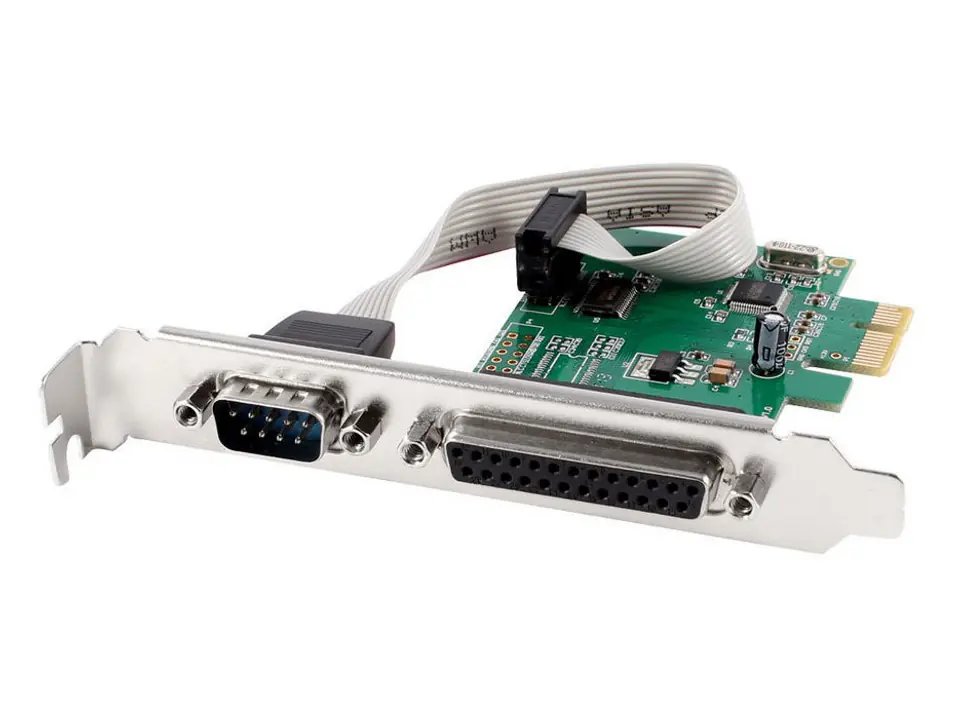

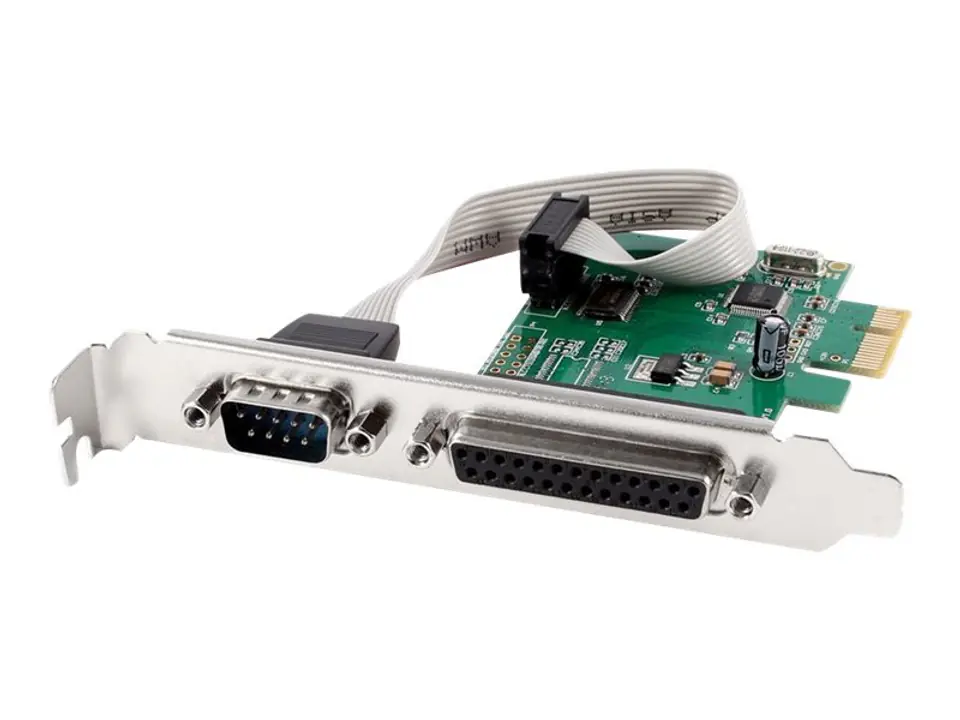

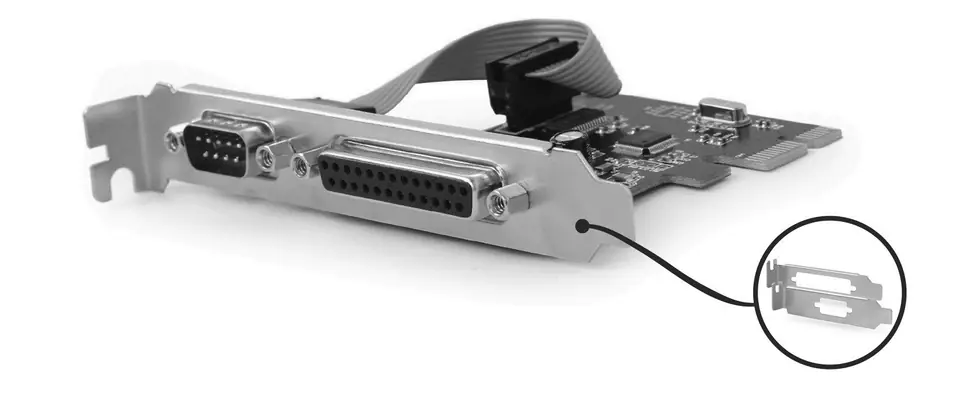

Upgrade your PC with additional COM 9-PIN serial ports, and a 25-PIN LPT port. PCI-Express card with additional low-profile bracket. 2 ports: 9-pin serial COM port and 25-pin LTP parallel printer port
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
