The device provides quick access to the most important functions such as camera zoom and convenient 3D joystick control Allows you to control most cameras in direct mode (control of presets, routes, motion vectors, etc.)
CONTROL KEYPAD RS-485 KT-610
€126.55
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- KT-610 / 5902887060731
Share this product:
Specification
| Baud:: | 1200, 2400, 4800, 9600, 19200 bit/s |
|---|---|
| Camera numbering (id):: | 0 ... 255 |
| Communication standard:: | RS-485 |
| Dimensions:: | 220 x 130 x 95 mm |

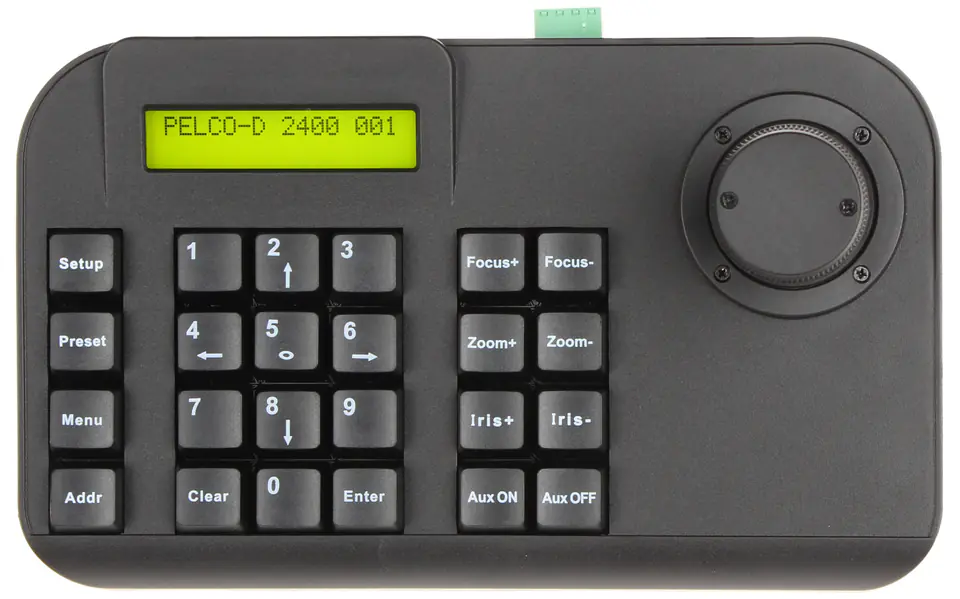

| Display:: | LCD 2x16 characters |
| Manipulator:: | 3-axis joystick, Speed proportional to tilt (possibility to control the zoom from the joystick) |
| Maximum control distance:: | 1200 m |
| Operating temperature / relative humidity:: | -20 °C ... 55 °C / ≤ 90 % |

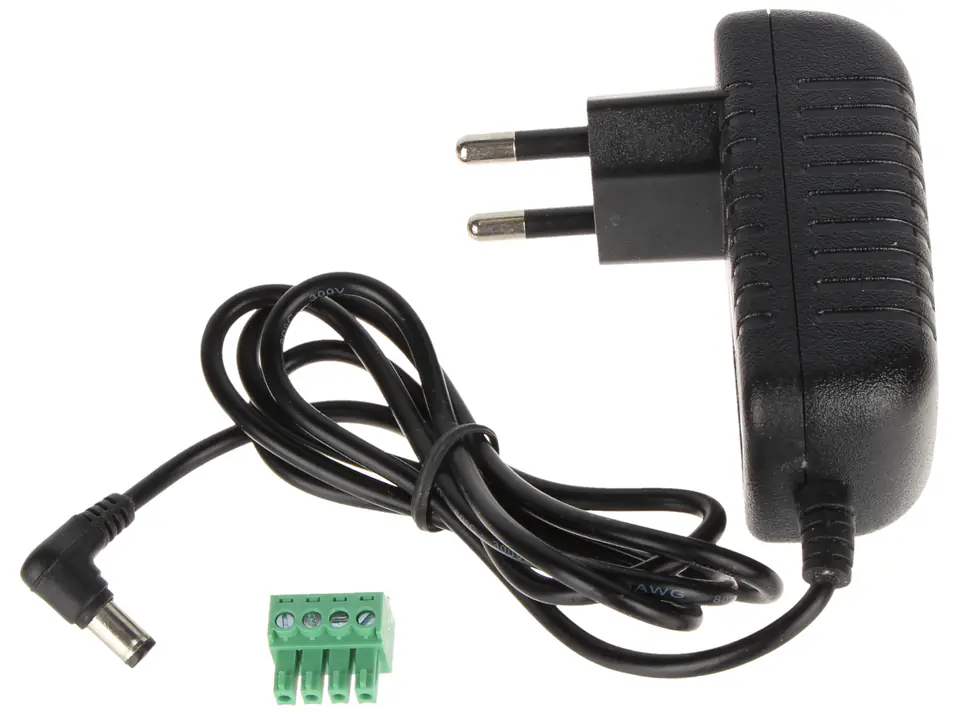

| Power:: | 12 V DC / 2 A (power supply included) |
| Protocols:: | Pelco-D, Pelco-P, SAMSUNG, YAAN, SAE |
| Scales:: | 0.75 kg |
| Selected features:: | support for PTZ cameras and controllers of turntables and cameras Motozoom Administrator password |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
