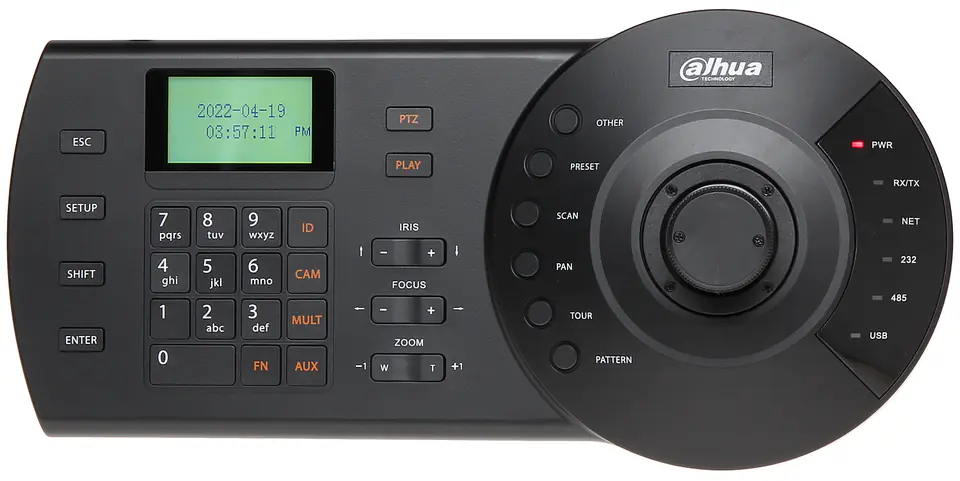

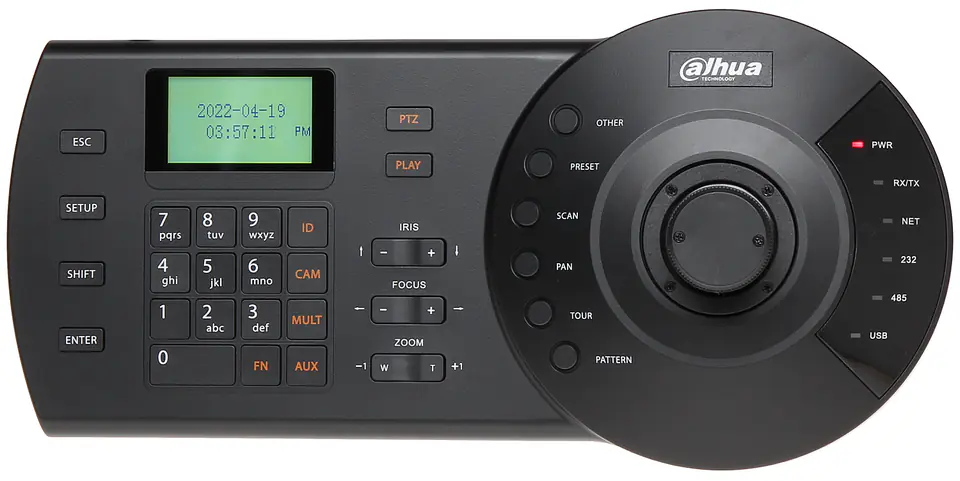

Network keypad with full control and programmability of PTZ camera heads of the DH-SD seriesIt is also possible to control multiple recorders with one keypad
CONTROL KEYPAD IP / RS-485 NKB1000-E DAHUA
€297.75
Shipping from warehouse: D4
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- NKB1000-E / 6923172521040
Share this product:
Specification
| Camera numbering (id): | 1 ... 255 |
|---|---|

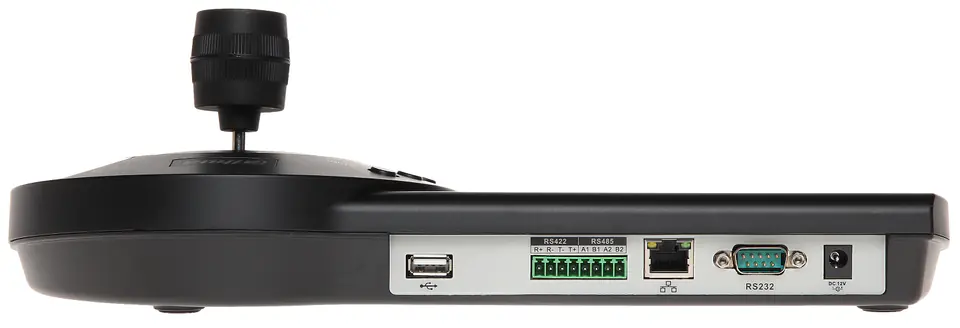

| Communication standard: | Network mode - Ethernet, RJ-45 jack Direct mode - RS-485, terminal block Direct mode - RS-232, D-sub socket |
| Control: | PTZ cameras from Dahua or other manufacturers DAHUA DVRs |
| Dimensions: | 330 x 160 x 105 mm |
| Display: | LCD - backlit |
| Manipulator: | 3-axis joystick, Tilt-proportional speed (zoom can be controlled from joystick) |
| Number of cameras in the system: | .max. 2048 |
| Number of users: | .max. 64 |
| Operating temperature / relative humidity: | -10 °C ... 55 °C / 10 % ... 90 % non-condensing |
| Power: | 12 V DC / 1 A |
| Producer / brand: | DAHUA |
| Protocols: | DH-SD1, DH-2, Pelco-P, Pelco-D and others |
| Scales: | 0.702 kg |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
