| -10 °c ... 40 °c: | Operating temperature: |
|---|---|
| .max. 2 x 10 a, 30 v dc / 50 v ac: | Contact capacity: |
| .max. 2 x 35 ma / 12 v dc: | Current consumption: |
| < 2.7 v: | Relay switching voltage L: |
| > 4 volts: | Relay switching voltage H: |
| 0.11 kg: | Scales: |
| 10 ... 16 vdc: | Power: |
| 120 x 90 x 36 mm: | Dimensions: |
| 2: | Number of relay outputs: |
| 2 x no/nc: | Egress: |
| 3 years: | Warranty: |
| Delta: | Manufacturer / Brand: |
| Led signalling, protection : surge protection, reverse connection, 2 x fuse time-lag (5/20mm) 10 a, splash-proof housing: | Selected features: |

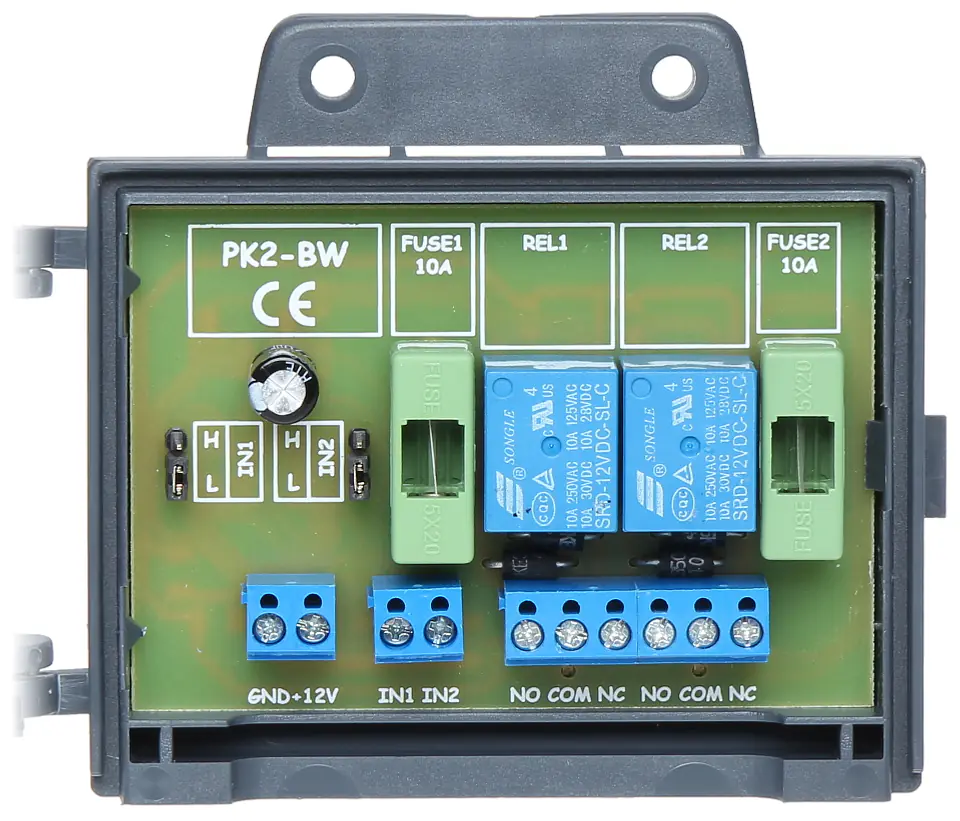

The PK2-12-PWT module consists of 2 changeover relays, controlled independently and configuration systems that determine the control of relays by means of high or low state
It allows to increase the current carrying capacity of transistor outputs and introduces galvanic isolation between the trigger signal and the load
