| Aluminium < 8% krzemu: | 55 |
|---|---|
| Aluminium > 8% silicon: | 45 |
| Always < 1000 n/mm²: | 32 |
| Always < 1400 n/mm²: | 14 |
| Always < 700 n/mm²: | 41 |
| Cast iron gg/gts: | 25 |
| Copper alloys: | 50 |
| Ggg cast iron: | 22 |
| Grip ø: | 10 mm |
| Hardened steels < 55 hrc: | 7 |
| Inox austenite.: | 14 |
| Inox duplex: | 16 |
| Inox ferrite./martenz.: | 14 |
| No: | 9055000150000 |
| Ø nominal: | 15 mm |
| Overall length: | 60 mm |
| Shell: | TiAlN |
| Smallest ø: | 3.2 mm |
| Titanium > 850 n/mm²: | 12 |

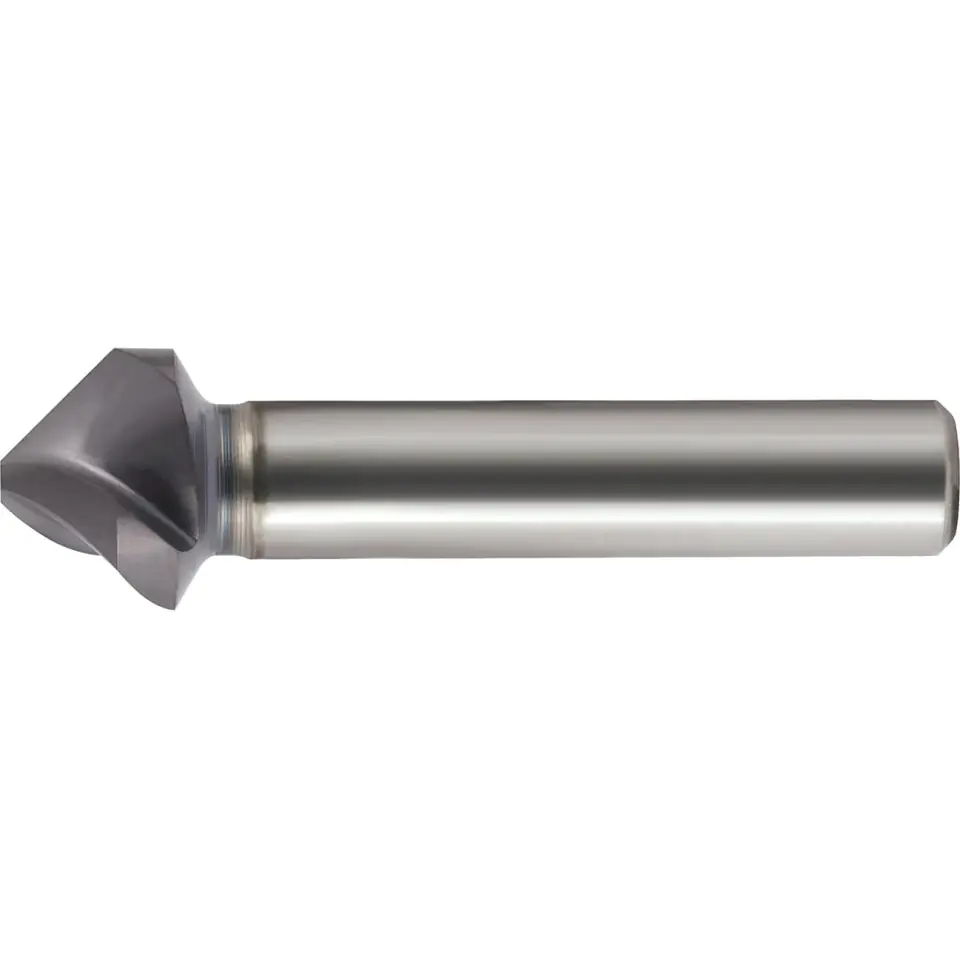

Conical and deburring countersink with convex cutting edges
Design: exceptionally good cutting properties thanks to 3 uneven, convex cutting edges. Reduction of feed force and notch effect on the surface of the countersink by reducing axial and radial force.
Application: for universal use.
