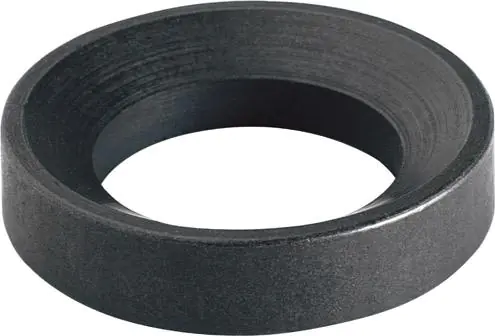

AMF conical washer
Material: diffusion hardened and phosphated. Suitable for 8.8 bolt strength.
Application: only for flat, closed annular surfaces.
Note: Not suitable for longitudinal holes.
Cone washer. DIN 6319DM16 AMF
€2.15
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 81901 / 4020772081904
Share this product:

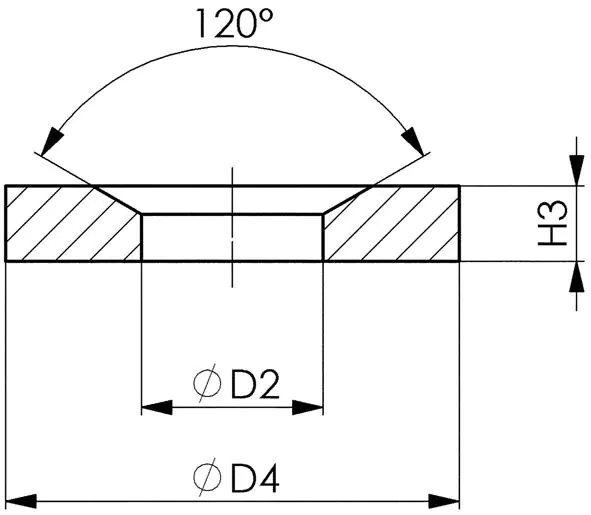

Specification
| Bore diameter d2: | 19 mm |
|---|---|
| Height h3: | 6.2 mm |
| Max. screwdriving force: | 73 kN |
| Outer diameter d4: | 30 mm |
| Size: | M16 |
