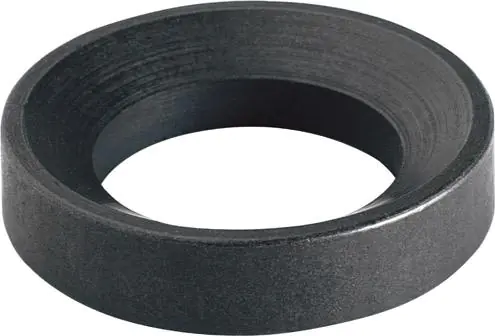

AMF conical washer
Material: diffusion hardened and phosphated. Suitable for 8.8 bolt strength.
Application: only for flat, closed annular surfaces.
Note: Not suitable for longitudinal holes.
Cone washer. DIN 6319DM14 AMF
€2.11
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 81893 / 4020772081898
Share this product:

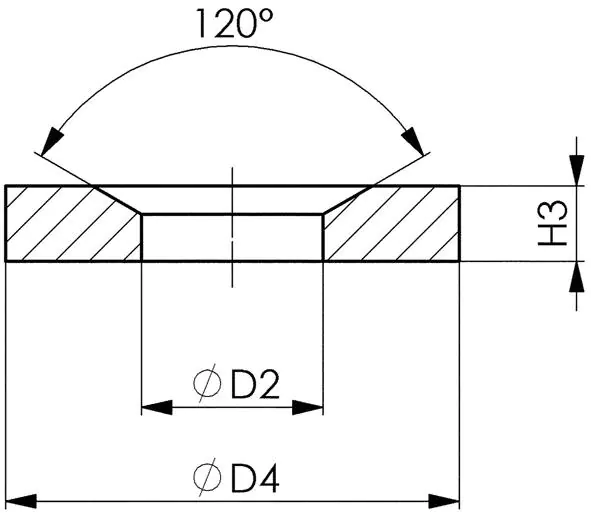

Specification
| Bore diameter d2: | 16.5 mm |
|---|---|
| Height h3: | 5.6 mm |
| Max. screwdriving force: | 53 kN |
| Outer diameter d4: | 28 mm |
| Size: | M14 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
