Cone dredger. AdvancedDIN335 HSSE 90, ground CBN,kszt. C 6.3-20.5mm EXACT

€154.47
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
EXACT
Product code:
50214 / 4026558502144

Specification

Aluminium > 8% silicon:Recommended
Copper alloys:Recommended
Inox austenite.:Appropriate
Inox duplex:Appropriate
Inox ferrite./martenz.:Appropriate

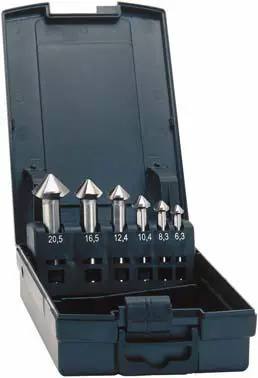

Kit contents:6,3; 8,3; 10,4; 12,4; 16,5; 20.5 mm
Steel < 1000 n/mm2:Recommended
Steel < 1400 n/mm2:Appropriate
Steel < 700 n/mm2:Recommended

Advanced countersink and deburring kit, 90°

Design: Similar to DIN 335-C. Innovative, innovative cut of the jump. Optimum cutting geometry and thus up to 25 % longer service life in the blank version; TiAIN coating increases service life up to 40%. With a simple U-shaped flute and solid material ground chip chambers. In addition, thanks to the angle of attack and application, they are suitable for most of the materials used. Supplied in a durable cassette, made of high-quality plastic with automatic extension of the countersinks at opening.
Application: for universal countersinking, chamfering and deburring without notches and burrs for counterhead screws according to DIN 963, DIN 964, DIN 965 and DIN 966 in one pass. Pay attention to the size of the dredging range!
Excellent cutting properties and trouble-free chip evacuation thanks to tapered cut and rake angle. The dredger achieves its best results with high feed and low cutting speed.
Note: in the case of uncoated tools, it is imperative that sufficient cooling is provided.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
