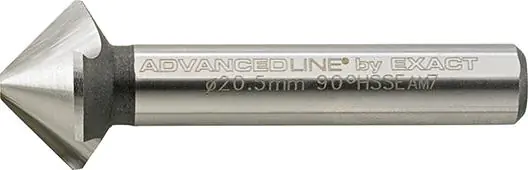

Conical countersink and deburring Advanced, 90°
Design: Similar to DIN 335-C. Innovative, innovative cut of the jump. Optimized geometry for a 50% increase in service life. The Rotastop® shank ensures optimal torque transmission, prevents the tool from rotating in the chuck. With a simple U-shaped flute and solid material ground chip chambers. In addition, thanks to the angle of attack and application, they are suitable for most of the materials used.
Application: for universal countersinking, chamfering and deburring without notches and burrs for counterhead screws according to DIN 963, DIN 964, DIN 965 and DIN 966 in one pass. Pay attention to the size of the dredging range!
Excellent cutting properties and trouble-free chip evacuation thanks to tapered cut and rake angle. The dredger achieves its best results with high feed and low cutting speed.
Note: in the case of uncoated tools, it is imperative that sufficient cooling is provided.
HSS-E
