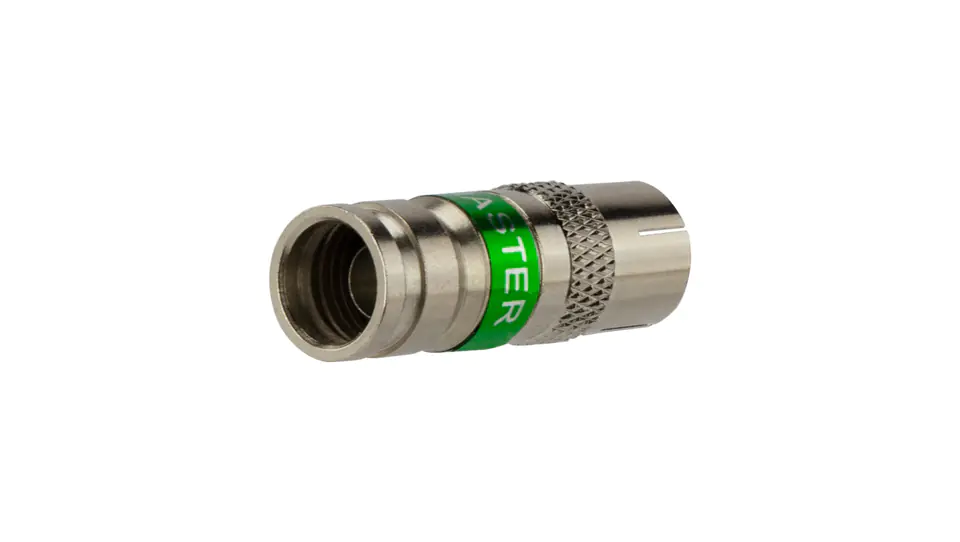

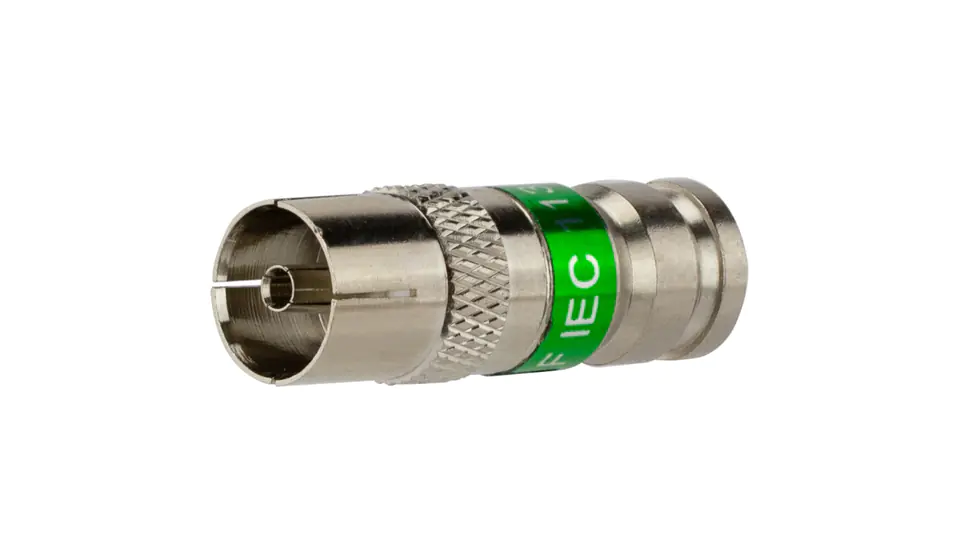

COMPRESSION SOCKET IEC-G/ZAC-TRI113/MSR

€0.89

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Wed, Nov 13 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: DIPOL ANTENA 1
Product code:: E3006 / 5907634596365

Specification

Cable diameter:	.max. 8.0 mm
Connector type:	IEC Straight socket
Destiny:	Coaxial cable
Dimensions:	Ø 11 x 33 mm
Exemplary application:	Triset-Profi, Triset113, Triset-113PE, Triset-113HF
Fastening of connector elements:	Compression mount
Impedance:	75 Ω
Material:	Brass (nickel-plated)
Scales:	0.009 kg
Screen mount:	Compression mount
Selected features:	Wide bandwidth Waterproof connection of connector to cable Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric Very low attenuation over the entire operating band Excellent fit to the transmission line throughout the entire operating band A correctly clamped connector is impossible to break The construction is protected by numerous patents Use the HT-5082R crimping tool for crimping
Warranty:	2 years
Wire fastening:	Pressing

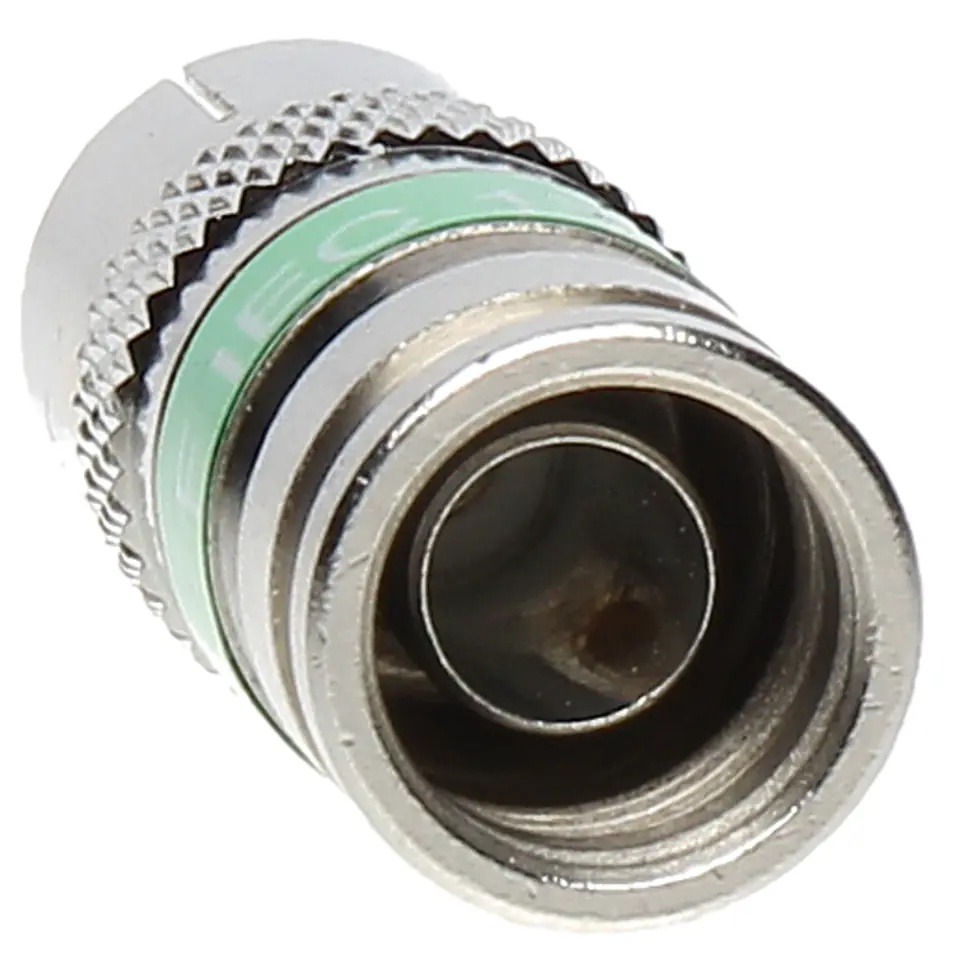

The connector has two solid rings, which as a result of the compression process of the connector (longitudinal compression, axial) bulge inwards Professional compression connector IEC-G/ZAC-TRI113/MSR meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for this type of connectors

The characteristics of this connector have been specially selected for TRISET-113 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
