Compression sleeve holder, type ER, DIN 69893, shape A, HSK 100
Compression sleeve holder DIN69893A-ER HSK-A100 32x100mm HAIMER
This product is not available
- Availability:
- expected delivery
- Brand:
- HAIMER
- Product code:
- A10.020.32 / 4034221014320
Share this product:

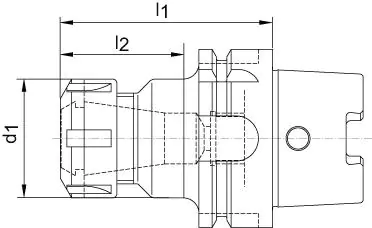

Specification
| Collet: | ER32 |
|---|---|
| Diameter d1: | 50 mm |
| L1: | 100 mm |
| L2: | 47 mm |
| Mounting range: | 1.5-20 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
