| Cable diameter: | .max. 8.5 mm |
|---|---|
| Connector type: | IEC Angled plug |
| Destiny: | Coaxial cable |
| Dielectric diameter: | .max. 6.5 mm |
| Dimensions: | 12 x 39 x 26 mm |
| Exemplary application: | Triset113 |
| Fastening of connector elements: | Compression mount |
| Impedance: | 75 Ω |
| Material: | Brass (nickel-plated) |
| Scales: | 0.022 kg |
| Screen mount: | Compression mount |
| Selected features: | Wide operating bandwidth Very low attenuation over the entire operating band Excellent adjustment to the transmission line throughout the entire operating band Waterproof connection of the connector to the cable Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric A correctly clamped connector is impossible to break The construction is protected by numerous patents Use the ZAC/MSR-2K crimping tool for crimping, HT-5082R |
| Warranty: | 2 years |
| Wire fastening: | Pressing |

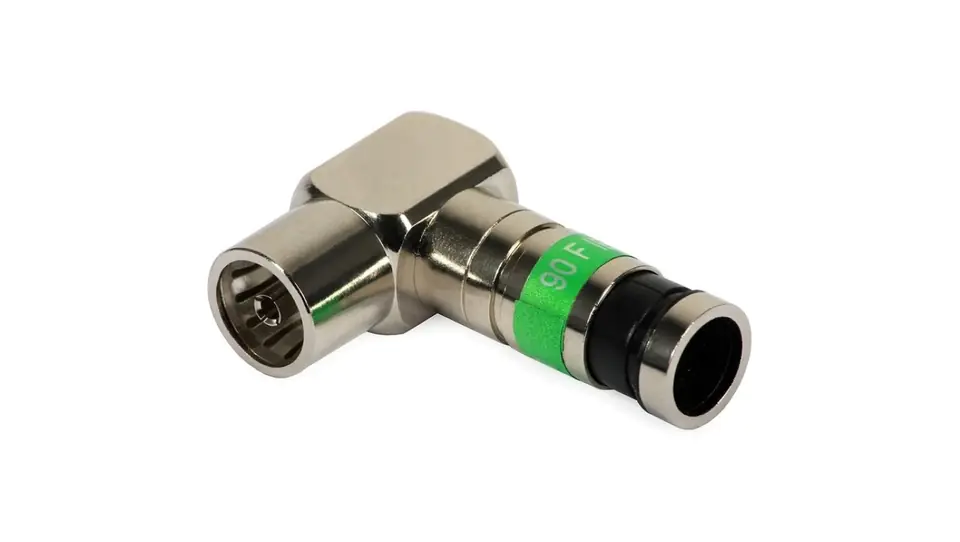

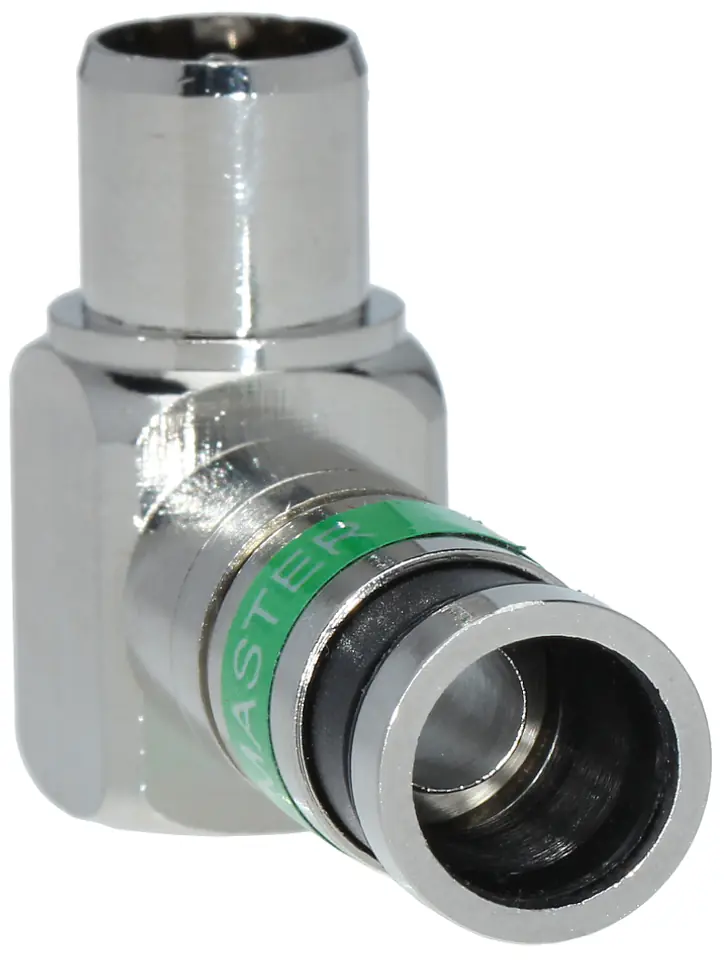

The professional compression IEC-WK/ZAC-TRI113 meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for this type of connectors
The characteristics of this connector have been specially selected for TRISET-113 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure
