COMPRESSION PLUG F/ZAC-RG-6/MSR

€0.58
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
VOLTA SP.Z O.O.
Product code:
01F6/MASTER / 5907634501093

Specification

Bounce suppression:- 28 dB to 3 GHz
Cable diameter:.max. 7.2 mm
Connector type:"F" Straight plug
Destiny:Coaxial cable
Dimensions:Ø 13 mm x 28 mm
Exemplary application:RG6
Fastening of connector elements:Compression mount
Impedance:75 Ω
Insertion loss:- 0.2 dB to 3 GHz
Material:Brass (nickel-plated)
Scales:0.009 kg
Screen mount:Compression mount
Selected features:Wide operating bandwidth Waterproof connection between connector and cable Sealing rubber Very low attenuation over the entire operating band Excellent fit to the transmission line throughout the entire operating band A properly clamped connector is impossible to break The construction is protected by numerous patents
Shielding:- 80 dB
Warranty:2 years

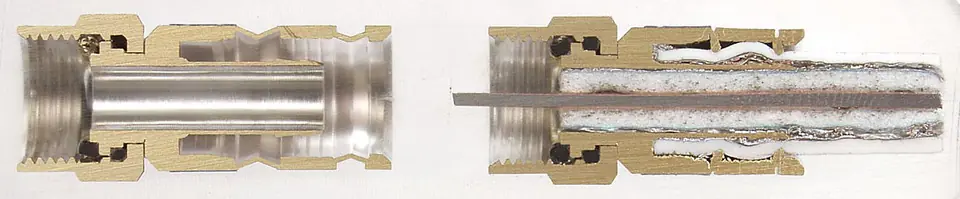

The connector has a very precise thread, which means that there are no commonly known problems with screwing the connector to the socketThe connector thanks to the use of double omnidirectional compression on the cable side and the gasket on the connector side is fully tight, which protects the devices used in the installation against water

Comparing this connector with others, it should be noted that the speed, reliability of installation and stability of the connection balanced the price of this connector

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
