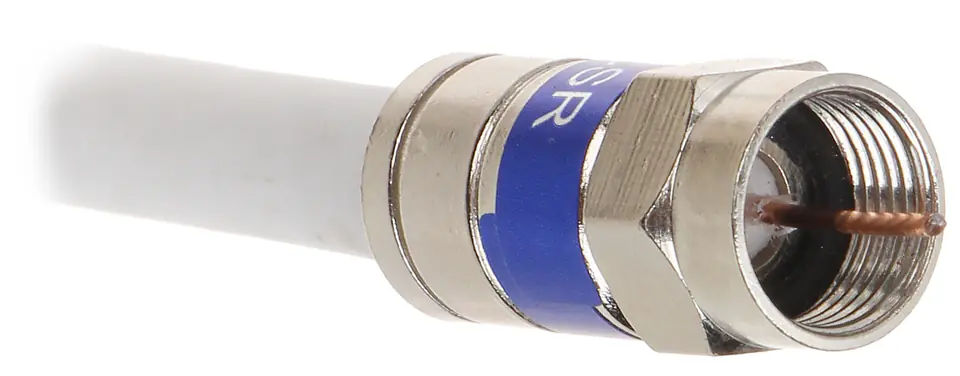

COMPRESSION PLUG F/ZAC-RG-6/CSR

€0.59
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
F/ZAC-RG-6/CSR / 5902887035760

Specification

Cable diameter:.max. 8.0 mm
Connector type:"F" Straight plug
Destiny:Coaxial cable
Dimensions:Ø 13 mm x 28 mm
Exemplary application:RG6, NS100-TRISHIELD, TCC-113-TRISHIELD, TRISET-113
Fastening of connector elements:Compression mount
Impedance:75 Ω
Material:Brass (nickel-plated)
Scales:0.009 kg
Screen mount:Compression mount
Selected features:Sealing rubber Tightness of the connector-to-cable connection Wide operating bandwidth Very low attenuation over the entire operating band Excellent fit to the transmission line throughout the entire operating band The construction is protected by numerous patents A properly clamped connector is impossible to break
Warranty:2 years

The connector has a very precise thread, which means that there are no commonly known problems with screwing the connector to the socketThe connector thanks to the use of double omnidirectional compression on the cable side and the gasket on the connector side is fully tight, which protects the devices used in the installation against water

Comparing this connector with others, it should be noted that the speed, reliability of installation and stability of the connection balanced the price of this connector

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
