The F/RG6/PRO compression plug, in addition to high quality workmanship, is also characterized by an integrated gasket protecting the connector against water ingress

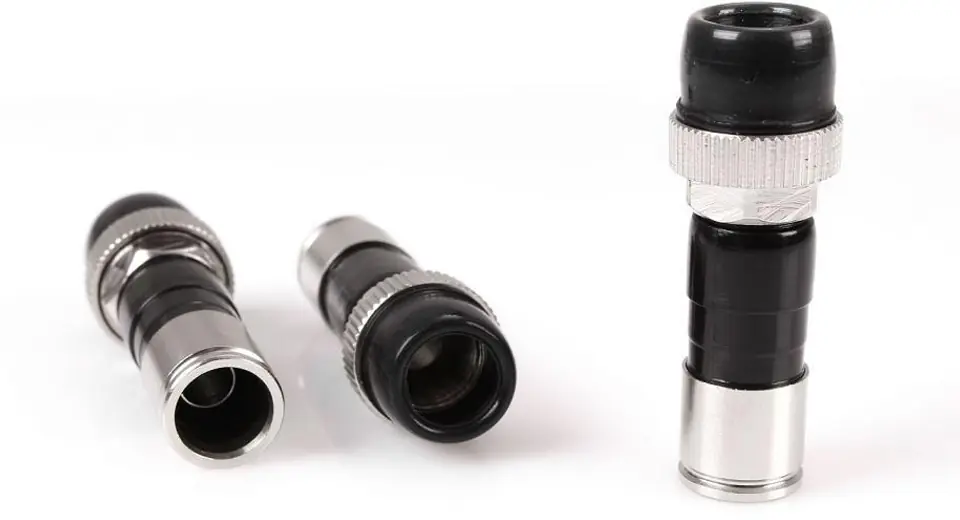

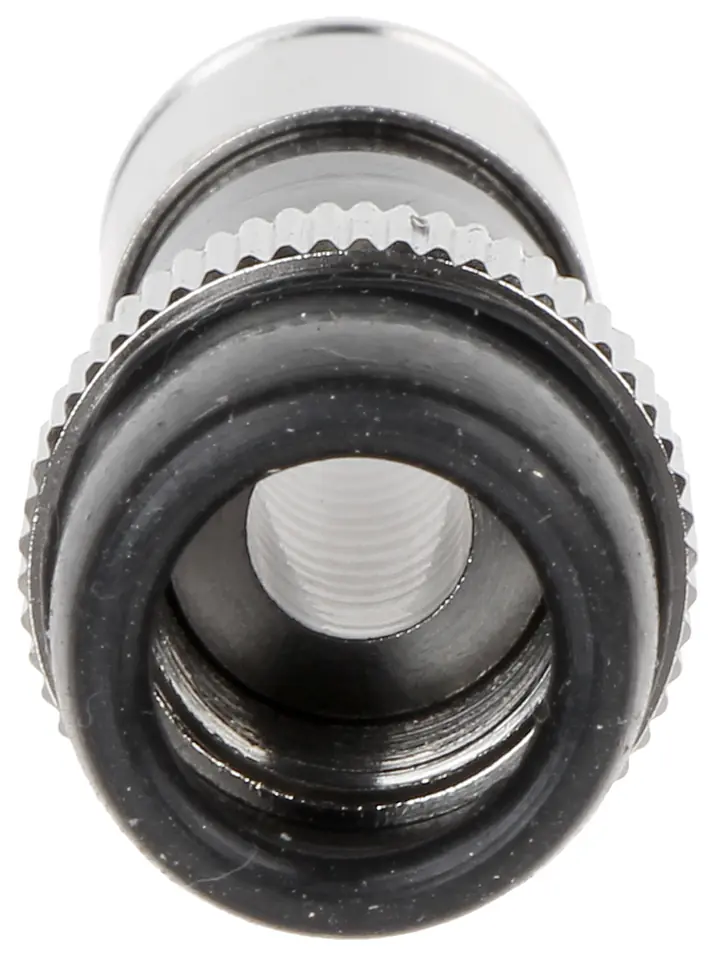

COMPRESSION PLUG F/RG6/PRO
€0.43
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Specification
Cable diameter: | .max. 8.0 mm |
---|---|
Connector type: | "F" plug |
Destiny: | Coaxial cable |
Dielectric diameter: | .max. 4.8 mm |
Dimensions: | Ø 14.5 mm x 42 mm |
Exemplary application: | RG6 Triset113 |
Fastening of connector elements: | Compression mount |
Scales: | 0.009 kg |
Screen mount: | Compression mount |
Selected features: | Watertightness of the connection to the cable and to the "F" connector A correctly clamped connector is impossible to break Very simple and quick assembly Corrosion resistance Very low damping over the entire operating band Use the HTL-548 / HT-5082R crimping tool |
Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
