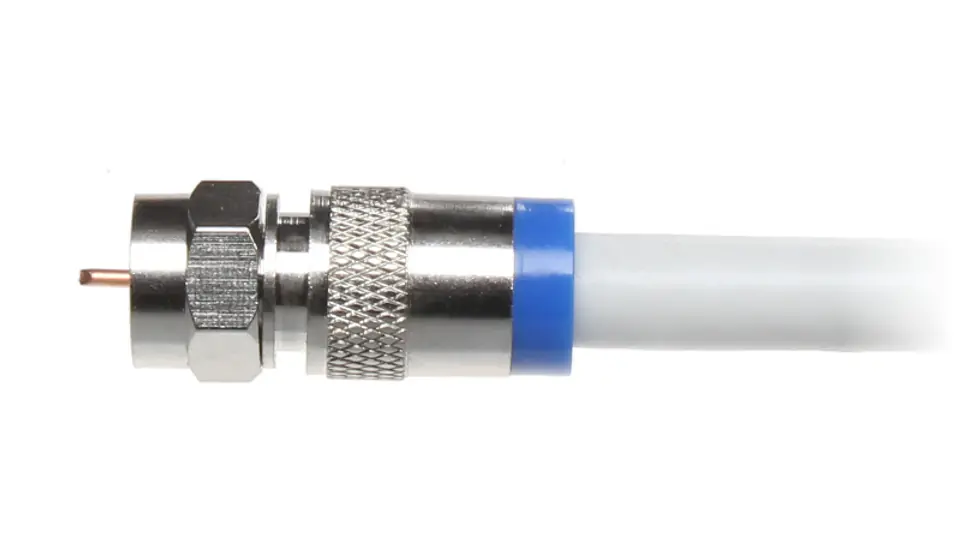

COMPRESSION PLUG F/4873-MTC Triset113 METACON
€0.43
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- METACON
- Product code:
- F/4873-MTC /
Share this product:
Specification
| Cable diameter: | .max. 7.3 mm |
|---|---|
| Connector type: | "F" plug |
| Destiny: | Coaxial cable |
| Dielectric diameter: | .max. 4.8 mm |
| Dimensions: | Ø 12 mm x 32 mm |
| Exemplary application: | Triset113 |
| Fastening of connector elements: | Compression mount |
| Producer / brand: | METACON |
| Scales: | 0.007 kg |
| Screen mount: | Compression mount |
| Selected features: | A correctly clamped connector is impossible to break Waterproof connection between connector and cable Very simple and quick installation Corrosion resistance Very low damping over the entire operating band |
| Warranty: | 2 years |
