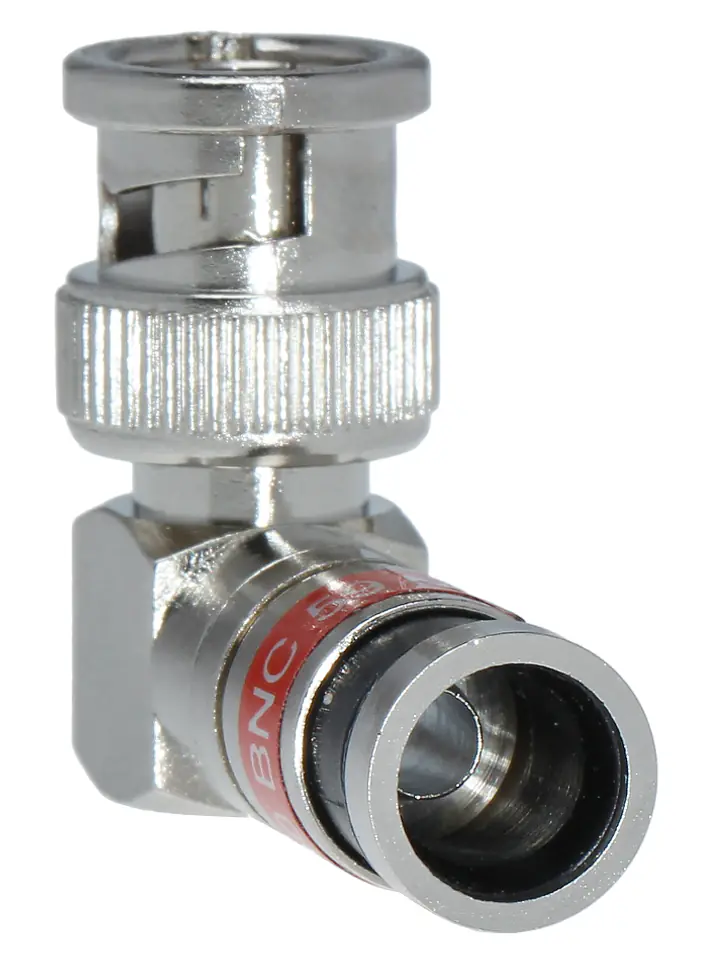

COMPRESSION PLUG BNC-WK/ZAC-RG59

€1.75
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
BNC-WK/ZAC-RG59 / 5907634501185

Specification

Cable diameter:.max. 8.5 mm
Connector type:BNC Angled plug
Destiny:Coaxial cable
Dielectric diameter:.max. 5.7 mm
Dimensions:14.5 x 40 x 28 mm
Exemplary application:RG59
Fastening of connector elements:Compression mount
Impedance:75 Ω
Material:Brass (nickel-plated)
Scales:0.024 kg
Screen mount:Compression mount
Selected features:Wide operating bandwidth Very low attenuation in the entire operating band Excellent adjustment to the transmission line throughout the entire operating band Watertightness of the connector-cable connection Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric A correctly clamped connector is impossible to break The construction is protected by numerous patents Vein: 0.55 ... 0.80 mm Use ZAC/MSR-2K, HT-5082R crimping tool
Warranty:2 years
Wire fastening:Pressing

The connector has two solid rings, which as a result of the compression process of the connector (longitudinal compression, axial) bulge inwards Professional compression plug BNC-WK/ZAC-RG59 meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for connectors of this type

The characteristics of this connector have been specially selected for RG-59 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
