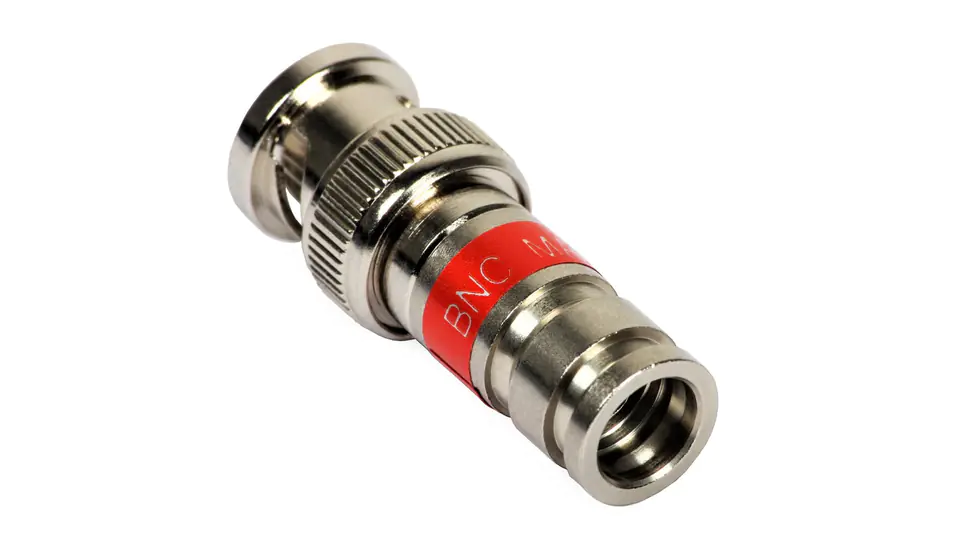

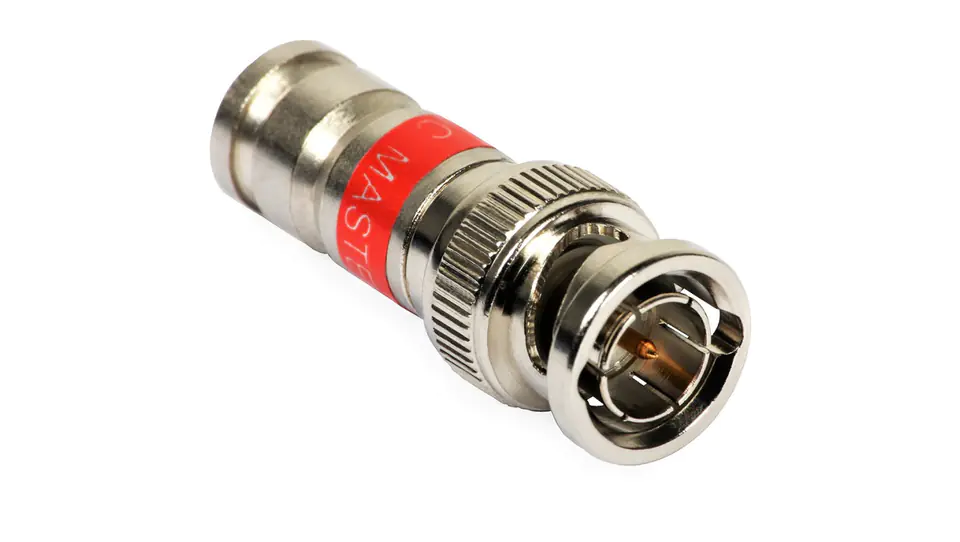

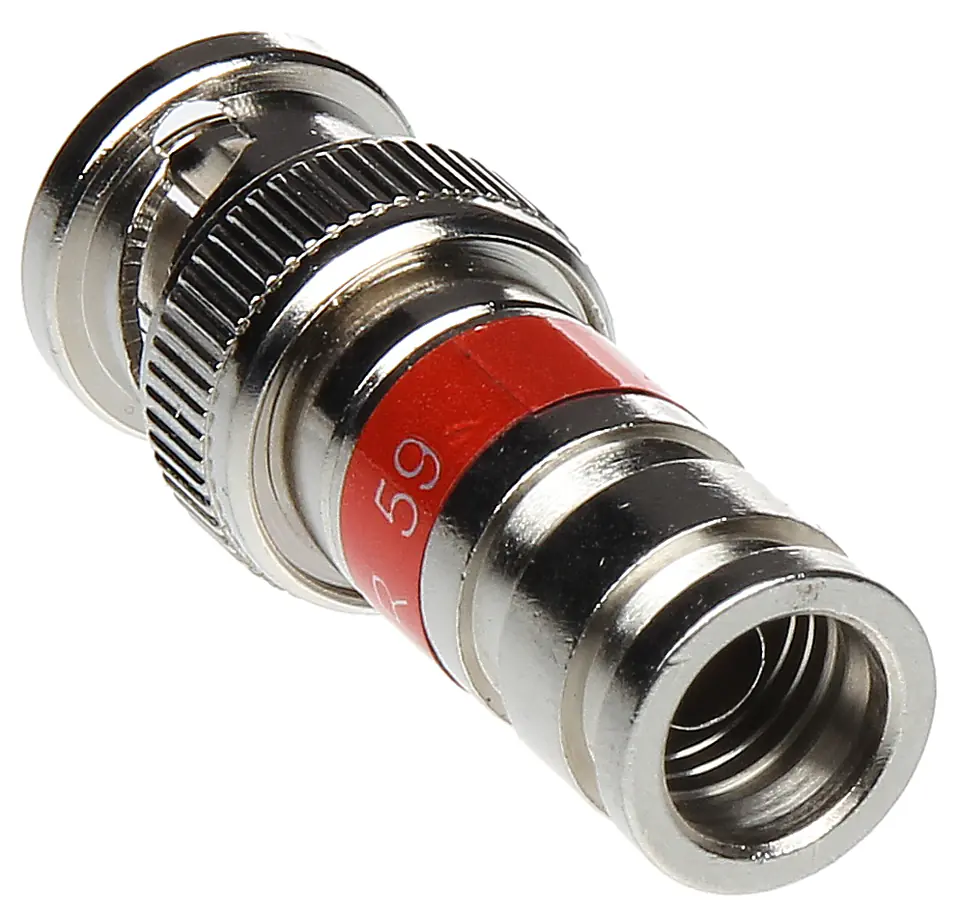

COMPRESSION PLUG BNC-W/ZAC-RG59/MSR

€1.22

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: DIPOL ANTENA 1
Product code:: E8275 / 5907634501154

Specification

Cable diameter:	.max. 7.5 mm
Connector type:	BNC Straight plug
Destiny:	Coaxial cable
Dimensions:	Ø 14.3 x 36.7 mm
Exemplary application:	RG59
Fastening of connector elements:	Compression mount
Impedance:	75 Ω
Material:	Brass (nickel-plated)
Scales:	0.016 kg
Screen mount:	Compression mount
Selected features:	Wide bandwidth Waterproof connection of the connector to the cable Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric A correctly clamped connector is impossible to break The construction is protected by numerous patents Use the HT-5082R crimping tool for crimping
Warranty:	2 years
Wire fastening:	Pressing

The connector has two solid rings, which as a result of the compression process of the connector (longitudinal compression, axial) bulge inwards Professional compression plug BNC-W/ZAC-RG59/MSR meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for connectors of this type

The characteristics of this connector have been specially selected for RG-59 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure
