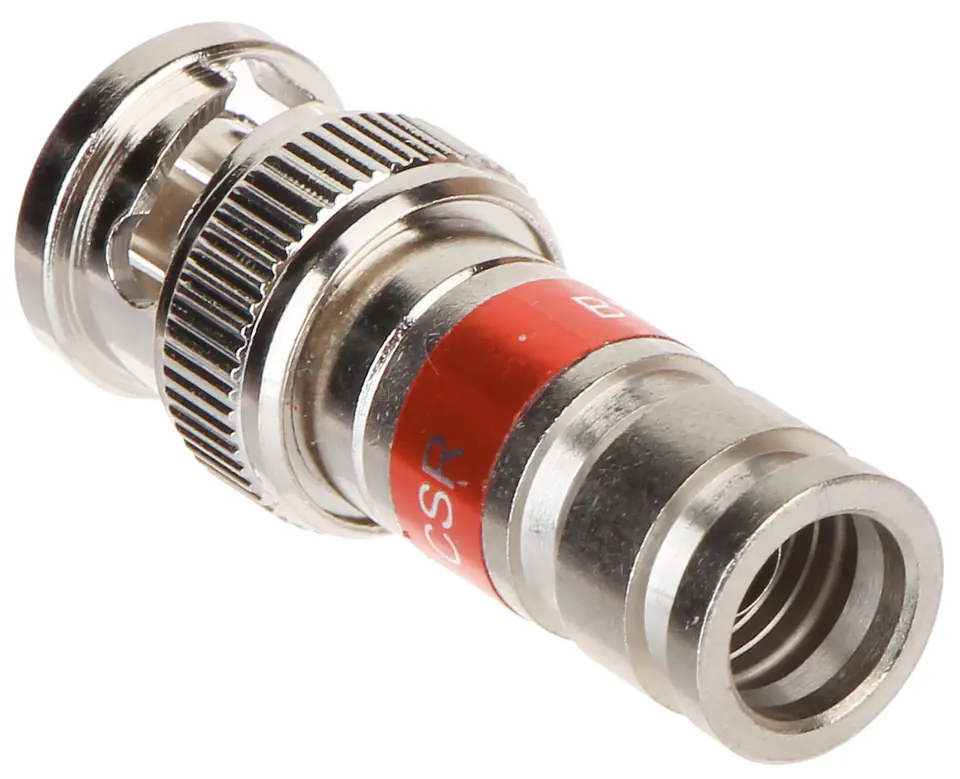

COMPRESSION PLUG BNC-W/ZAC-RG59/CSR

€1.09

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: BNC-W/ZAC-RG59/CSR / 5902887035920

Specification

Cable diameter:	.max. 7.5 mm
Connector type:	BNC - Straight plug
Destiny:	Coaxial cable
Dimensions:	Ø 14.4 x 36.8 mm
Exemplary application:	RG59
Fastening of connector elements:	Compression mount
Impedance:	75 Ω
Material:	Brass (nickel-plated)
Scales:	0.016 kg
Screen mount:	Compression mount
Selected features:	Wide bandwidth Waterproof connection of the connector to the cable Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric A correctly clamped connector is impossible to break The construction is protected by numerous patents Use the HT-5082R crimping tool for crimping
Warranty:	2 years
Wire fastening:	Pressing

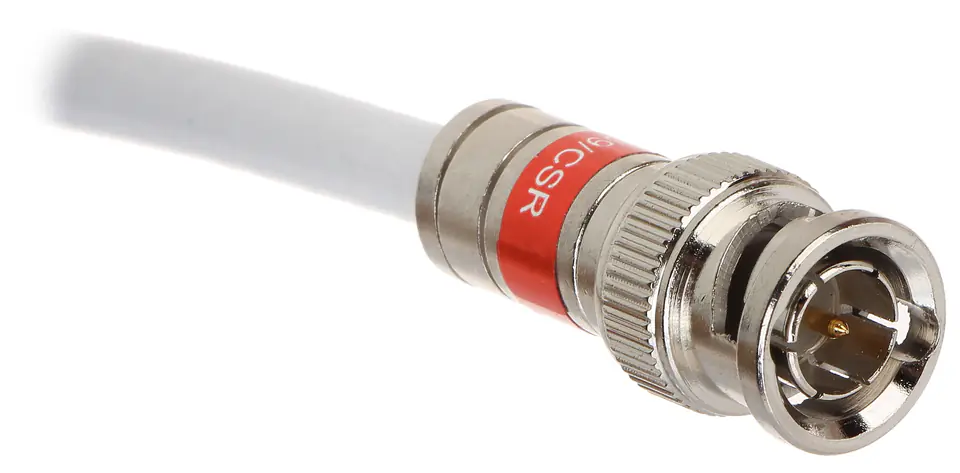

The connector has two solid rings, which as a result of the compression process of the connector (longitudinal compression, axial compression) bulge inwards Professional compression plug BNC-W/ZAC-RG59/CSR meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for connectors of this type

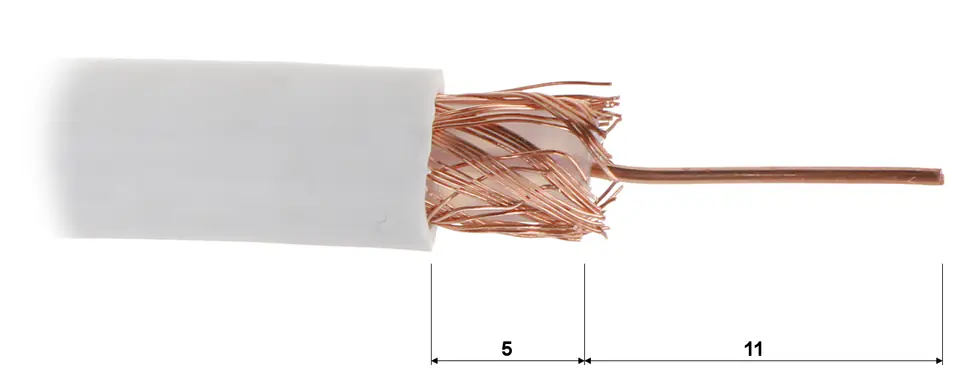

The characteristics of this connector have been specially selected for RG-59 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure
