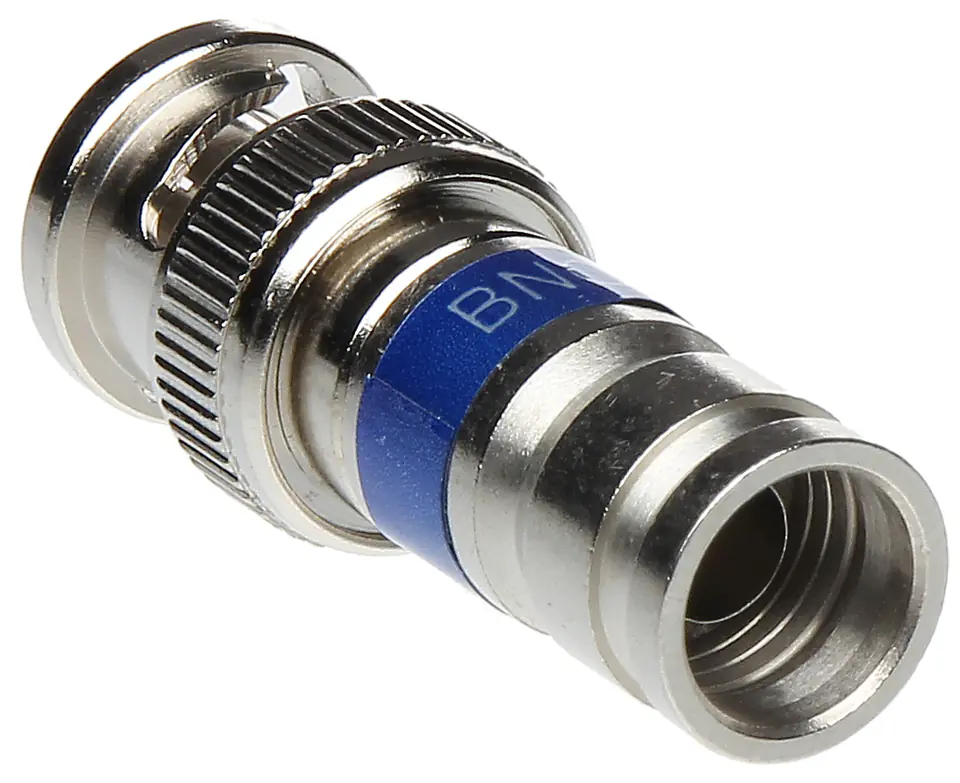

COMPRESSION PLUG BNC-W/ZAC-RG-6/MSR

€1.26

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: E8276 / 5907634501161

Specification

Cable diameter:	.max. 8.0 mm
Connector type:	BNC Straight plug
Destiny:	Coaxial cable
Dimensions:	Ø 14.5 mm x 37 mm
Exemplary application:	RG6
Fastening of connector elements:	Compression mount
Impedance:	75 Ω
Material:	Brass (nickel-plated)
Scales:	0.015 kg
Screen mount:	Compression mount
Selected features:	Wide operating bandwidth Very low attenuation over the entire operating band Watertightness of the connector-to-cable connection Corrosion resistance - made entirely of non-ferrous metals and the highest quality dielectric Excellent fit to the transmission line throughout the entire operating band A correctly crimped connector is impossible to break The construction is protected by numerous patents Use the HT-5082R crimping tool for crimping
Warranty:	2 years
Wire fastening:	Pressing

The connector has two solid rings, which as a result of the compression process of the connector (longitudinal compression, axial) bulge inwards Professional compression plug BNC-W/ZAC-RG-6/MSR meets all recommendations of SCTE (The Society of Cable Telecommunications Engineers) for connectors of this type

The characteristics of this connector have been specially selected for RG-6 cables The dimensions are selected in such a way that after compression, the connector clamps on the cable tire with a force so large that it is impossible to break the connector from the cable and small enough that they do not damage the cable structure

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
