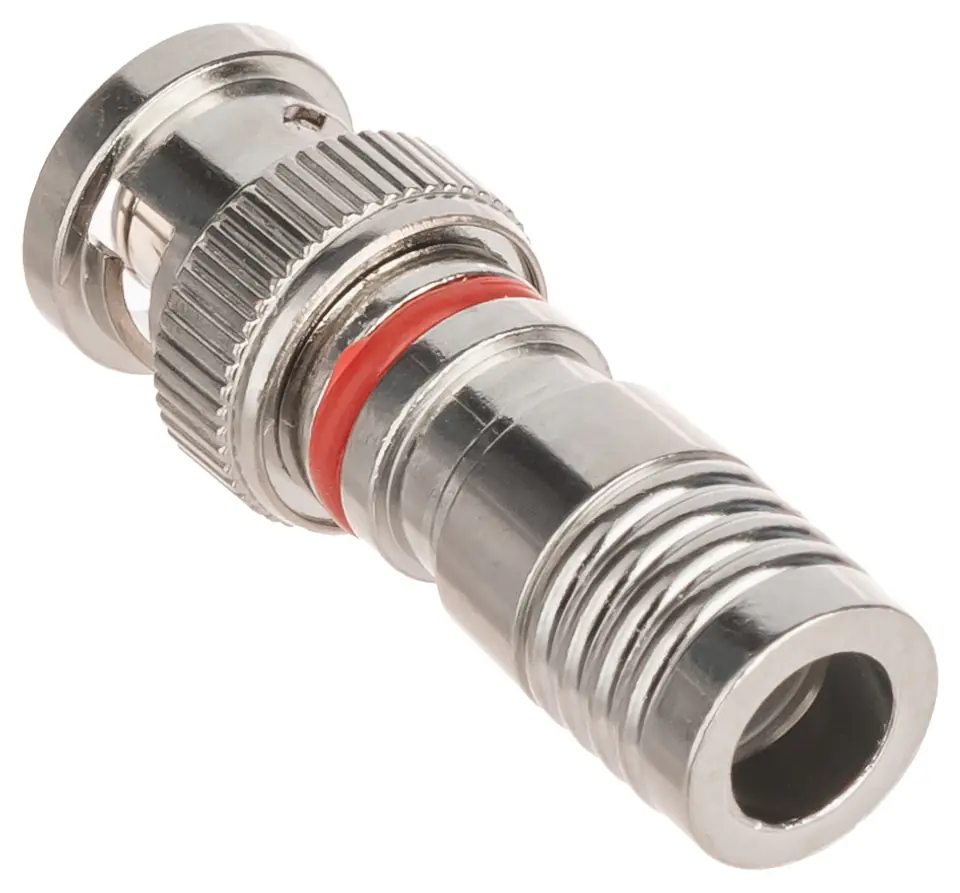

COMPRESSION PLUG BNC-W/3773-MTC RG59 YAP METACON

€0.71
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
METACON
Product code:
BNC-W/3773-MTC /

Specification

Cable diameter:.max. 7.3 mm
Connector type:BNC Plug
Destiny:Coaxial cable
Dielectric diameter:.max. 3.7 mm
Dimensions:Ø 15 mm x 39 mm
Exemplary application:RG59 K-60 YAP
Fastening of connector elements:Compression mount
Producer / brand:METACON
Scales:0.014 kg
Screen mount:Compression mount
Selected features:A correctly clamped connector is impossible to break Waterproof connection between connector and cable Very simple and quick installation Corrosion resistance Very low damping over the entire operating band Use the HT-5082R crimping tool for crimping
Warranty:2 years
Wire fastening:Pressing

BNC plug crimped for coaxial cable

The type of material used guarantees the absence of corrosion. The highest precision of workmanship affects the appearance and quality of the connection. Correct clamping is very simple and guarantees a correct and stable connection for a long time

The connector is made in a very high technological regimeAfter connecting the connector to the socket in the device, there is no clearance, so characteristic for cheap connectors, which is a source of interruptions in signal transmissionThe central wire of the coaxial cable at the time of insertion into the connector is centered and goes to a properly prepared blind hole

METACON - a leader among connector manufacturers

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
