COMPRESSION PLUG BNC-W/3770*P10 RG59 YAP

€4.97
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
BNC-W/3770*P10 /

Specification

Cable diameter:.max. 7.3 mm
Connector type:BNC Plug
Destiny:Coaxial cable
Dielectric diameter:.max. 3.7 mm
Dimensions:Ø 14.5 x 39 mm
Exemplary application:RG59 YAP K-60
Fastening of connector elements:Compression mount

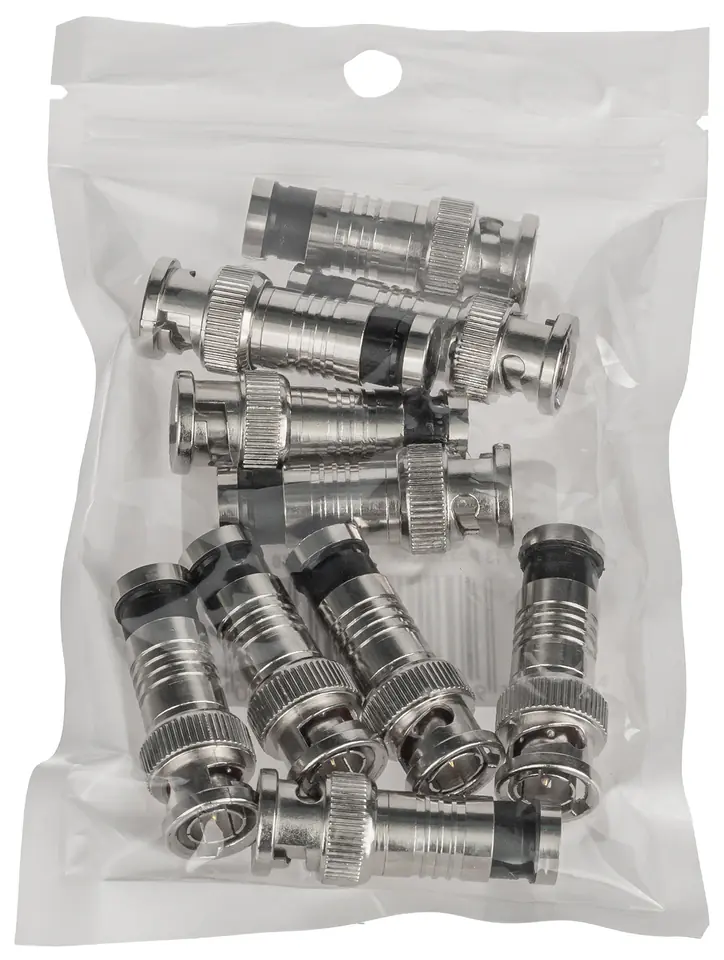

In the package:10 pcs. Price per pack
Scales:0.012 kg
Screen mount:Compression mount
Selected features:A correctly clamped connector is impossible to break Watertightness of the connector-to-cable connection Very simple and quick installation Corrosion resistance Very low damping over the entire operating band Use the HTL-548 / HT-5082R crimping tool for crimping
Warranty:2 years
Wire fastening:Pressing

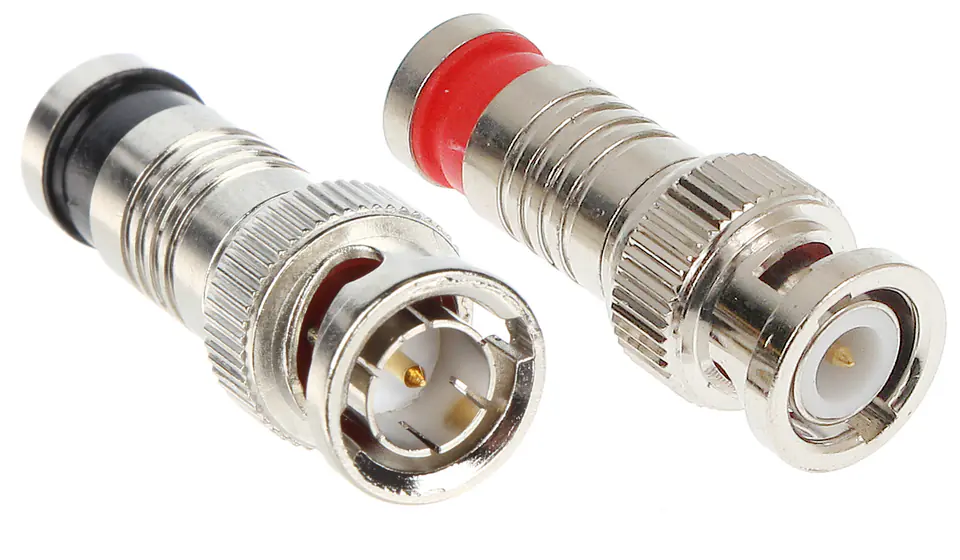

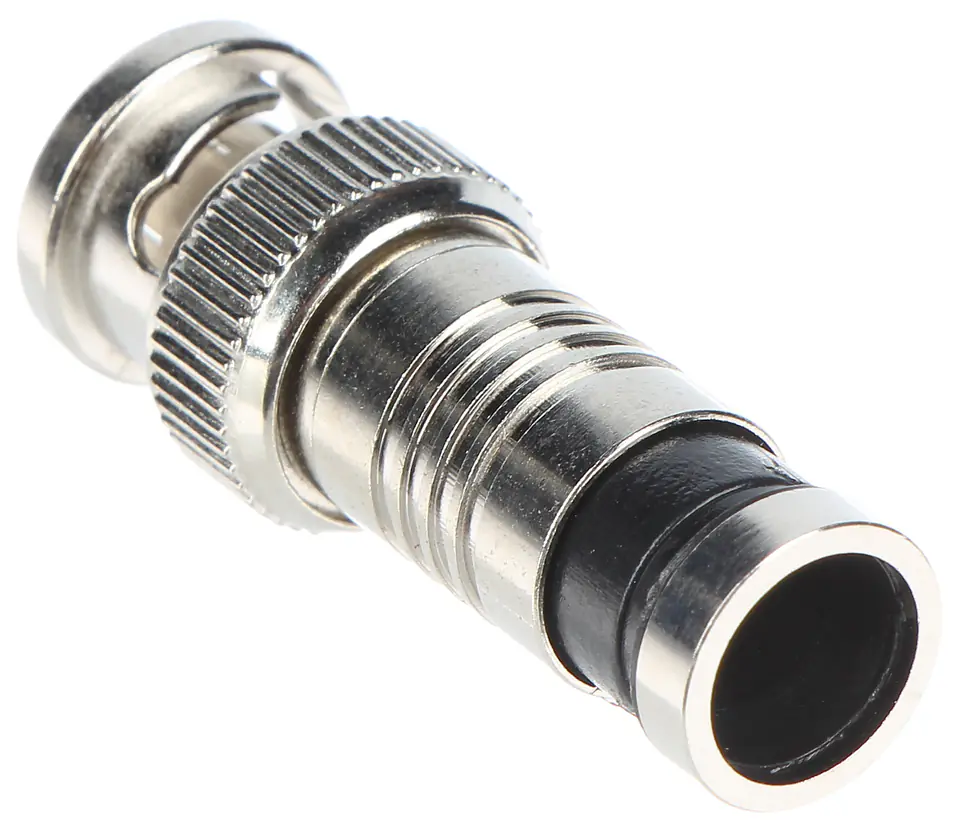

BNC plug crimped for coaxial cable

The type of material used guarantees the absence of corrosion. The highest precision of workmanship affects the appearance and quality of the connection. Correct clamping is very simple and guarantees a correct and stable connection for a long time

The connector is made in a very high technological regimeAfter connecting the connector to the socket in the device, there is no clearance, so characteristic for cheap connectors, which is a source of interruptions in signal transmissionThe central wire of the coaxial cable at the time of insertion into the connector is centered and goes to a properly prepared blind hole

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
