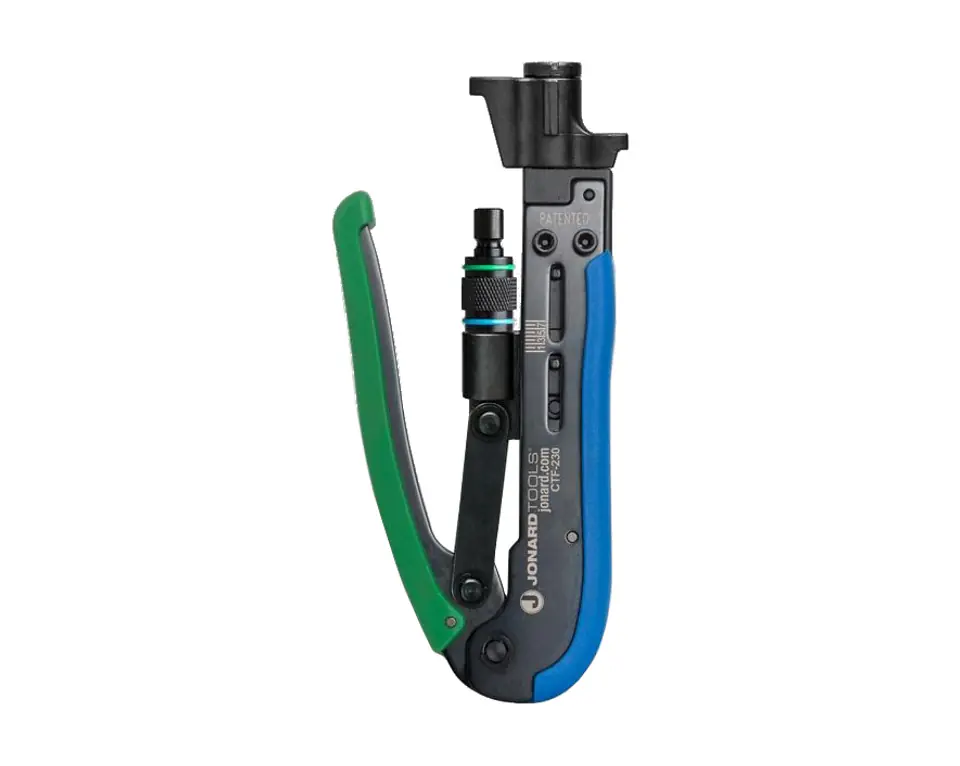

Compression crimping tool JONARD TOOLS CTF-230
Designed for use on both short and long F-type connectors, such as PPC EX6 and PPC EX6XL connectors, as well as on most RG11 connectors.

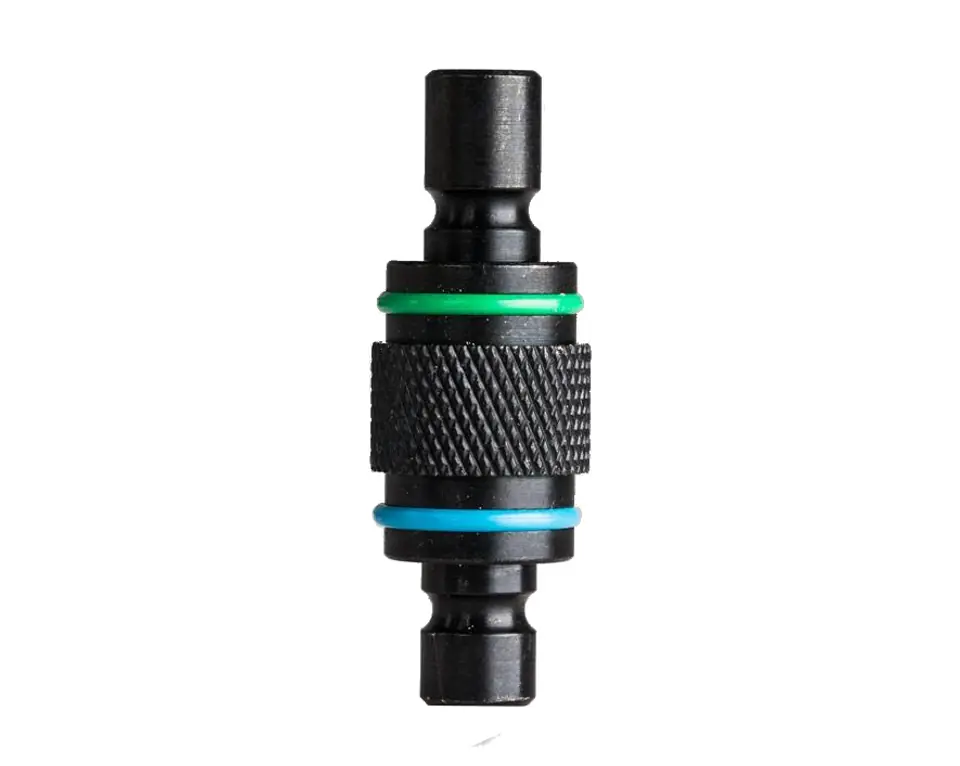

The green side of the piston is for the short PPC EX6 connectors and the blue side for the long EX6XL connectors.
The tool is ideal for installing CATV network cables and has the following characteristics:
- Pin with double header for earning short and long F-type connectors.
- Tool made of durable high carbon steel with black oxide finish
- Plastic handles for comfortable and ergonomic mounting
Compatible connectors:
-PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX59XLK,
EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS, EX7N716WSPLUS, EX7N716PLUS,
EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS, EX6IEC
- Digicon: DS6, DS59, DS59Q, DS11, DS7
-Belden: SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS, SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B
- Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RG11-CX3, FM-RG7-CX3, F-CX3
- Corning Gilbert UltraEase: GF-EU-59, GF-EU-59Q, GF-UE-6, GF-EU-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
- ATX Networks: 9-MPF-CQ
And many other brands and styles of short and long F connectors
Specifications:
- Connector type F Short, F Long
- Material: Carbon steel
- Length: 6-3/4" 171mm
- Weight 436.62 g
Data sheet:
http://dmtrade.pl/katalogi/jonard/CTF-230/KK-CTF-230.pdf
Manual:
http://dmtrade.pl/katalogi/jonard/CTF-230/IO-CTF-230.pdf
Founded in 1958, Jonard Tools® manufactures tools for the telecommunications, cable TV, fiber optics, home automation, security and alarm markets, and the electrical markets. Jonard Tools designs and builds patented products, working with customers to create innovative solutions for the needs of industry and beyond. All tools are Made For Life® and come with a lifetime warranty. Through quality and innovation, Jonard strives to advance the industry and connect the world.
