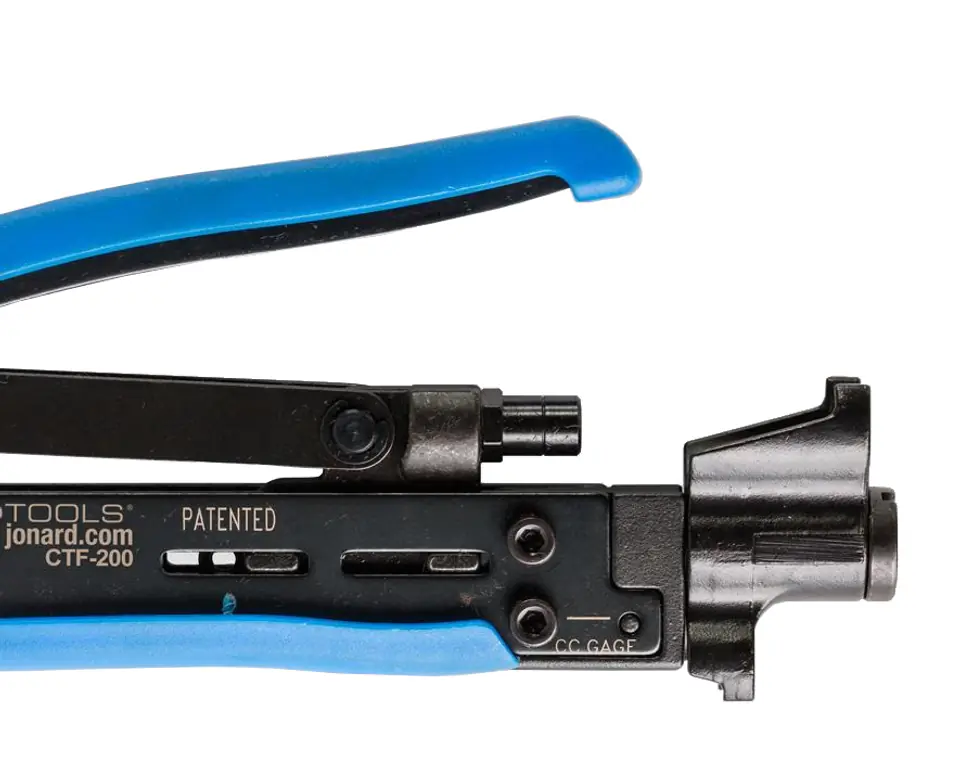

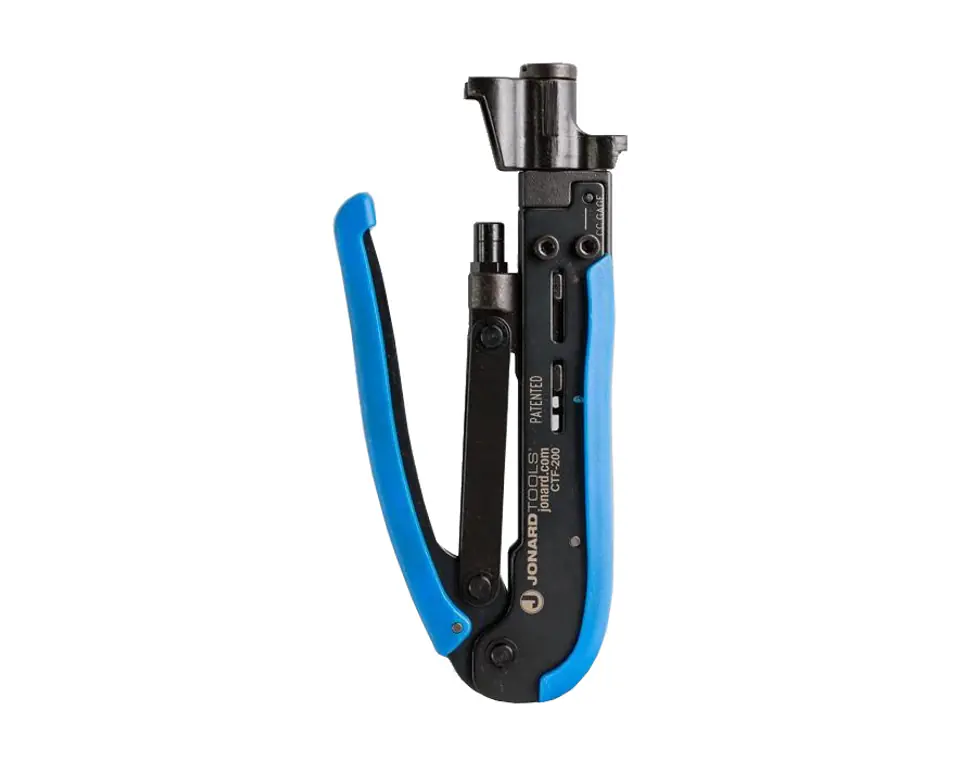

Compression crimping machine JONARD TOOLS CTF-200
Crimping machine designed for use with long F-type connectors, such as EXXLWS Aquatight or EX-XL PPC connectors.
The tool is ideal for installing CATV network cables and has the following features:
- Rotating head allows you to quickly and easily accommodate various connectors such as RG6 and RG11
- Made of durable high-carbon steel with black oxide finish
- Plastic handles for comfortable and convenient use
Compatible connectors: - PPC: CMP6, CMP6Q, CMP59, CMP59Q, CMP11, EX6XL, EX59XL, EX59XLHE, EX6XLWS, EX6LP , EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716,
EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX59XLK, EX6XLK, EX6XLP, EX7N716WS, EX11N716WS, EX59XLWS, EX11N716WSPLUS, EX11N716PLUS,
EX7N716WSPLUS, EX7N716PLUS, EX6XLPLUS, EX6XLWSPLUS, EX59XLPLUS, EX59XLWSPLUS, EX6XLWS
- Cablecon: CX3-F596, CX3-IECF, CX3-IECM, FM-RGII-CX3, FM-RG7-CX3
- Corning Gilbert UltraEase: GF-UE-59, GF-UE-59Q, GF-UE-6, GF-UE-6Q, GF-UE-5.1, GF-URS-6-SR, GF-URS-59-SR, GAF-URS-11MH
- Thomas & Betts Belden Snap-N-Seal: SNS1P59, SNS1P59HEL, SNS7BQ, SNS7AS, SNS7B, SNS11A5TP275, SNS59Q5NS, SNS1P59QS, SNS11A5NS, SNS7ASNS, SNS1P6, SNS59TP275, SNS6TP275, SNS7BNS
- ATX Networks: 9-MPF-CQ
And many other brands and styles of short and long F connectors
Technical data:
- Connector type F Long
- Carbon Steel Material
- Length 6-3 / 4 " 171 mm
- Weight 438,62 gData sheet:
http://dmtrade.pl/katalogi/jonard/CTF-200/KK-CTF-200.pdf
Manual:
http://dmtrade.pl/katalogi/jonard/CTF-200/IO-CTF-200.pdf
