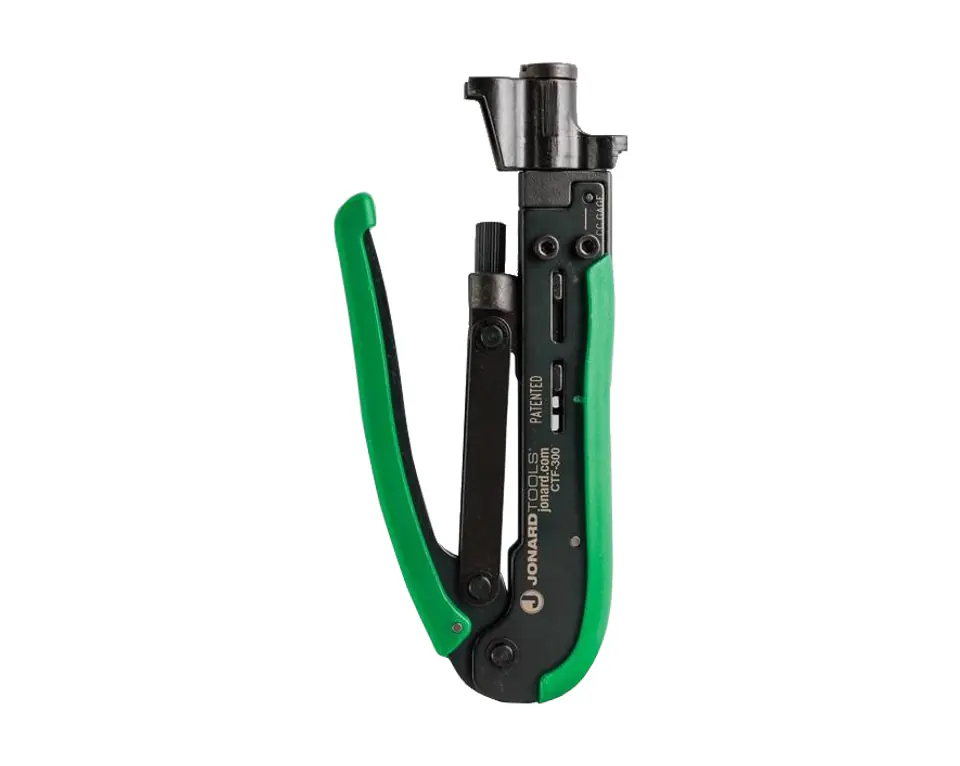

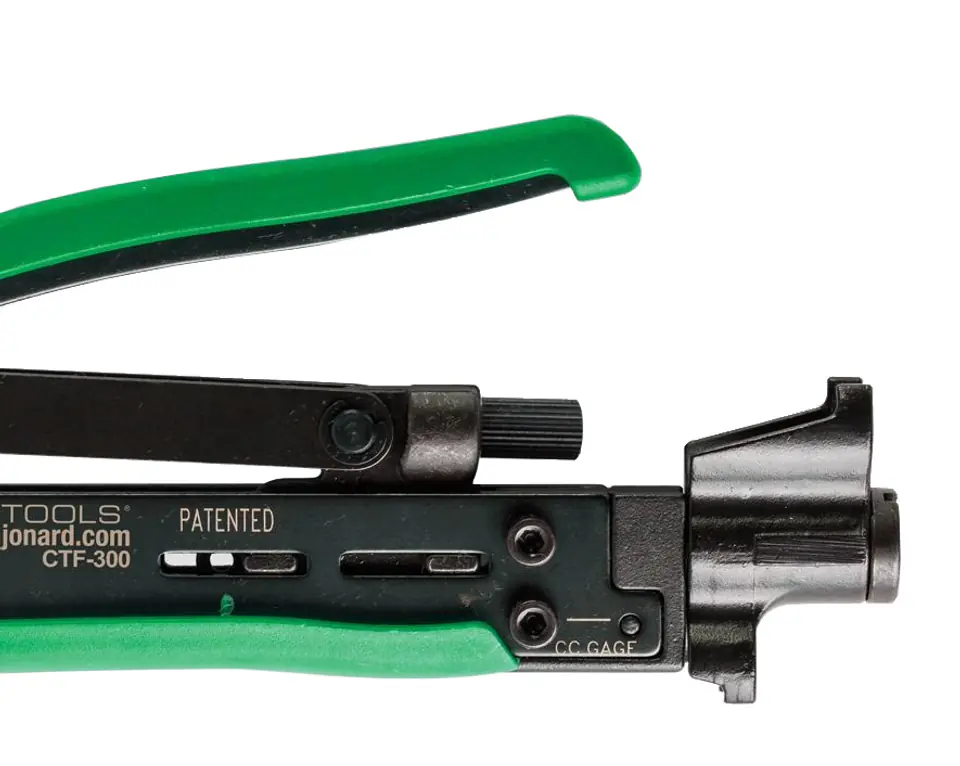

Compression crimping machine JONARD TOOLS CTF-300
Crimping machine designed for use on both short and long F-type connectors such as PPC EX.
The tool is ideal for installing CATV network cables and has the following features:

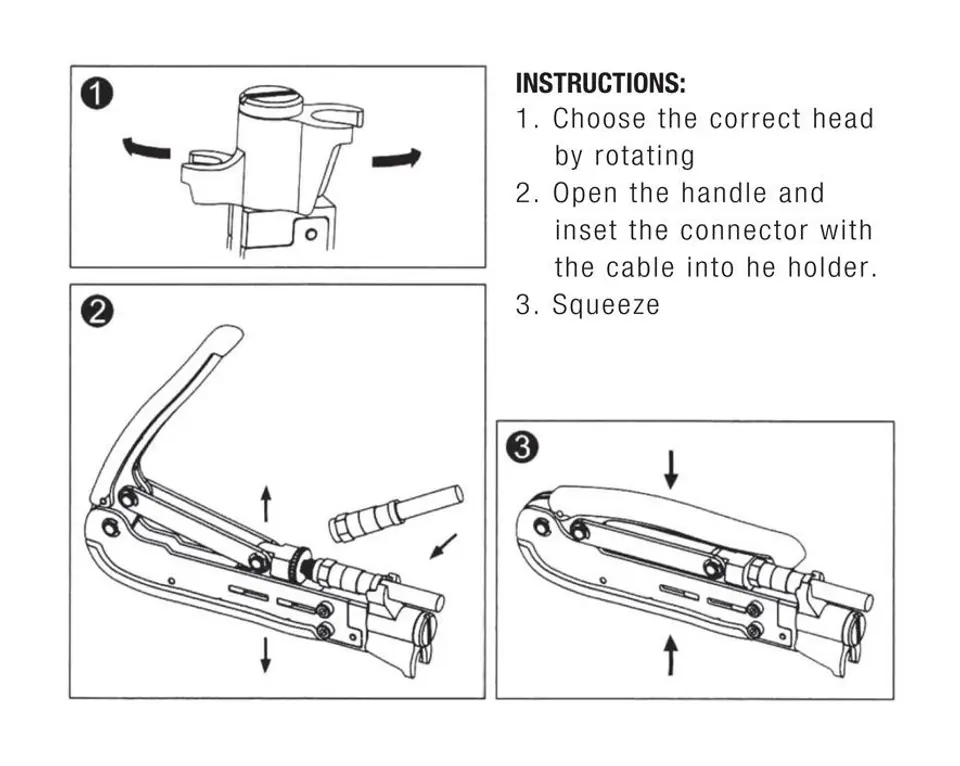

- Rotating head allows you to quickly and easily accommodate various connectors, short and long F RG59, RG6 and RG11
- Made of durable high-carbon steel with black oxide finish
- Plastic handles for comfortable and ergonomic mounting
Compatible connectors:- PPC: EX6/59, EX6W9, EX59HE, EX6P, EX7, EX7N716, EX11, EX11N716, EX320QR, EX320N716, EX6PLUS, EX6WSPLUS, EX59WSPLUS, EX59HEPLUS, EX6WS, EX59WS- Cablecon: F-CX3
And many other brands and styles of short and long F connectors
Technical data:
- Connector type F Short
- Carbon Steel Material
- Length 6-3 / 4 " 171 mm
- Weight 436,35 gData sheet:
http://dmtrade.pl/katalogi/jonard/CTF-300/IO-CTF-300.pdf
Manual:
http://dmtrade.pl/katalogi/jonard/CTF-300/IO-CTF-300.pdf
Founded in 1958, Jonard Tools® manufactures tools for the telecommunications, cable TV, fiber optics, home automation, security and alarm markets, and electrical markets. Jonard Tools designs and builds patented products, working with customers to create innovative solutions for industry and beyond. All tools are Made For Life® and come with a lifetime warranty. Through quality and innovation, Jonard strives to develop the industry and connect the world.
