S-MMA-200PI.2 Powerful MM Welding MachineModern IGBT Inverter TechnologyHigh Stage Of Trouble-Free Efficient Operation and Fast Switching Between Functions Is Short-Circuit ResistantCeditions:
- Efficiency - modern IGBT technology helps to achieve a duty cycle of 60%,
- Mobility - compact size, light weight and comfortable strap make it easy to carry the machine,
- Convenience - additional functions and long cables have a positive effect on the comfort of work,
- Versatility - the welding machine will cope with the processing of iron, nickel, cast iron and alloys of copper and steel with a total thickness of 1.5 mm,
- Safety - indicator lights warn the user during irregularities, and the fan prevents the machine from overheating.

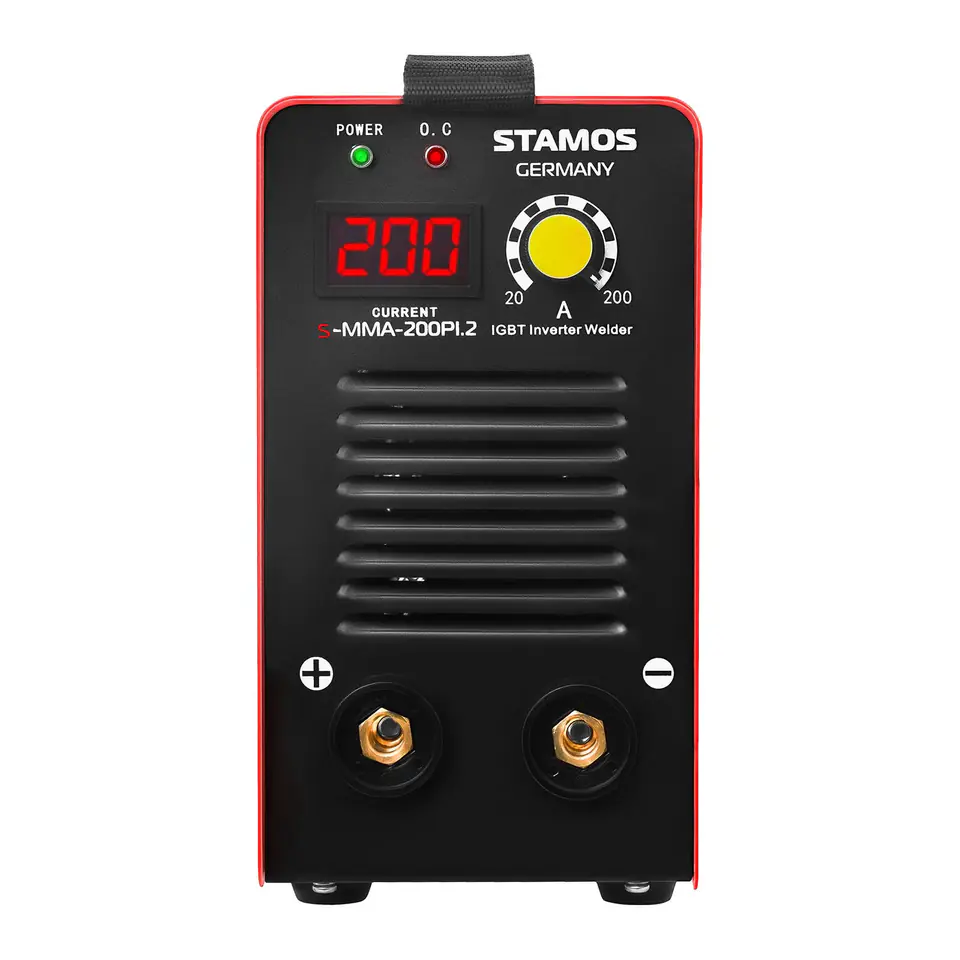

- - Model - S-MMA-200PI.2
- - Catalog no. - 10020227
- - Article status - New
- - Voltage - 230 V / 50 Hz
- - Rated input current - 25 A
- - Maximum input current - 32 A
- - Rated input power - 5.8 kVA
- - Maximum input power - 7.4 kVA
- - Idle voltage - 56 V
- - Welding current MMA - 20-200 A
- - Duty cycle - 60%
- - Welding current in the duty cycle 60% - 200 A
- - Welding current in the duty cycle 100% - 155 A
- - Electrode diameter - 1.6-5 mm
- - Welding thickness - 1.5-9 mm
- - Hot Start - Yes
- - Power factor - 0.73
- - Efficiency - 80
- - Cooling - Fan
- - Insulation class - F
- - Safety class - IP21
- - Length cable with MMA holder - 2 m
- - Length ground wire - 2 m
- - Length power cord - 2 m
- - Dimensions (LxWxH) - 35 x 12.5 x 22.5 cm
- - Weight - 4.55 kg
- - Shipping dimensions (LxWxH) - 43.5 x 22 x 29 cm
- - Shipping weight - 7.2 kg
- Hot Start consists in temporarily increasing the welding current during arc ignition,
- MMA (coated electrode) – it will work indoors and outdoors. It does not require shielding gas and is suitable for welding thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in steel and cast iron. The S-MMA-200PI.2 model is resistant to voltage fluctuations, so that the welds made with it have good operating and mechanical values.

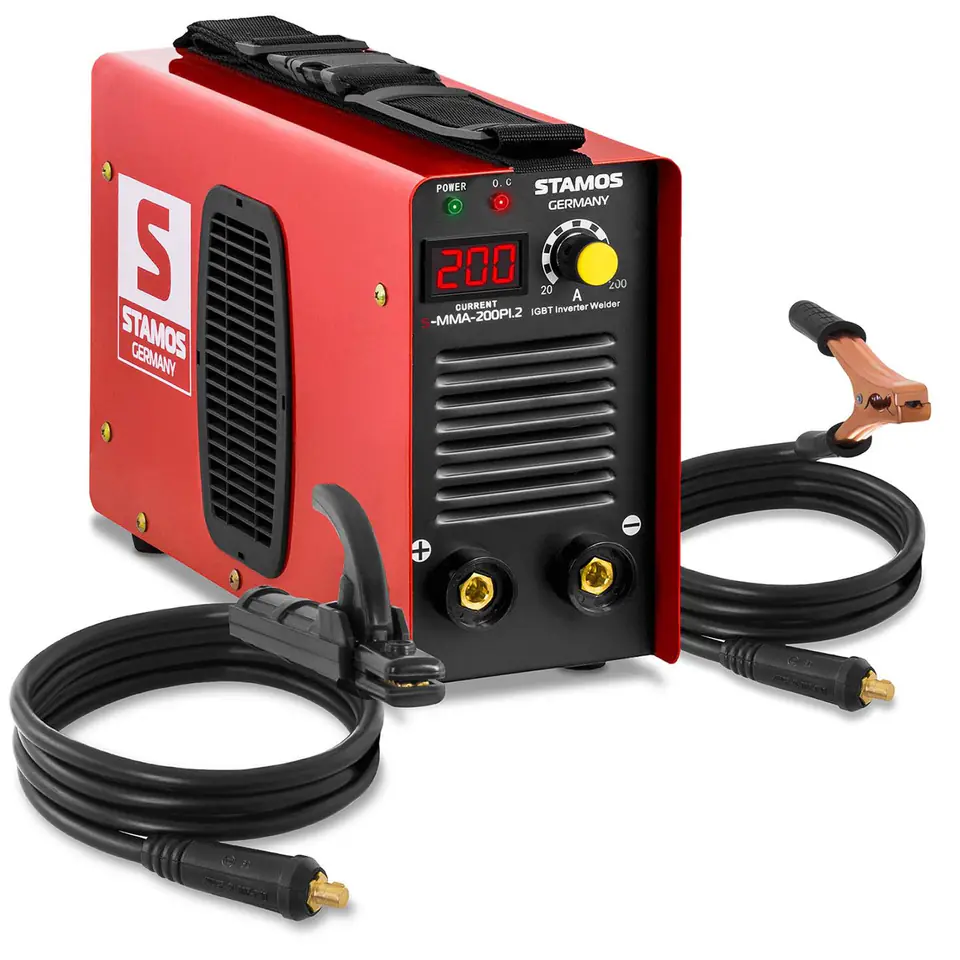

- - MMA welding machine

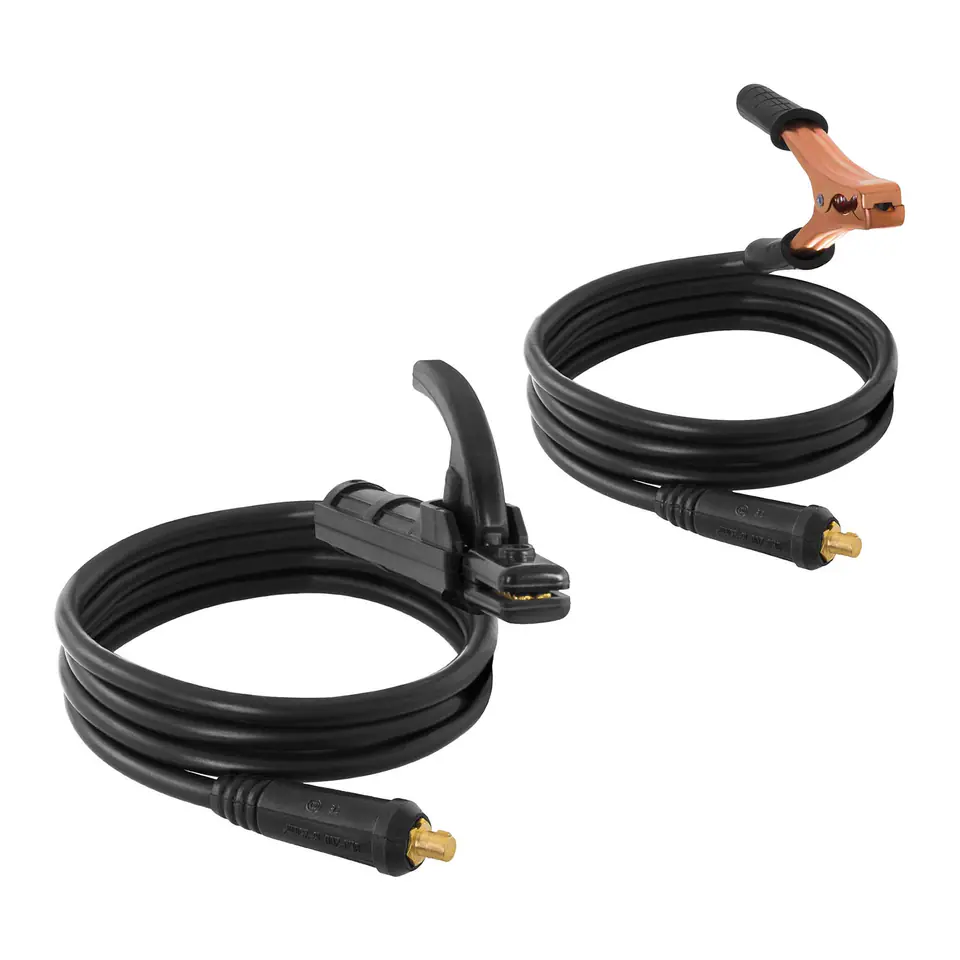

- - Cable with MMA holder - 2 m
- - Ground wire with clamp - 2 m
- - Manual EN
