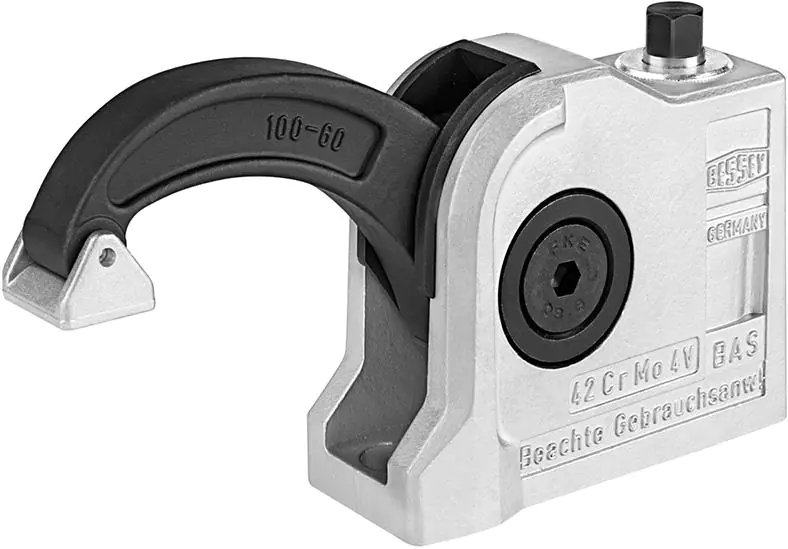

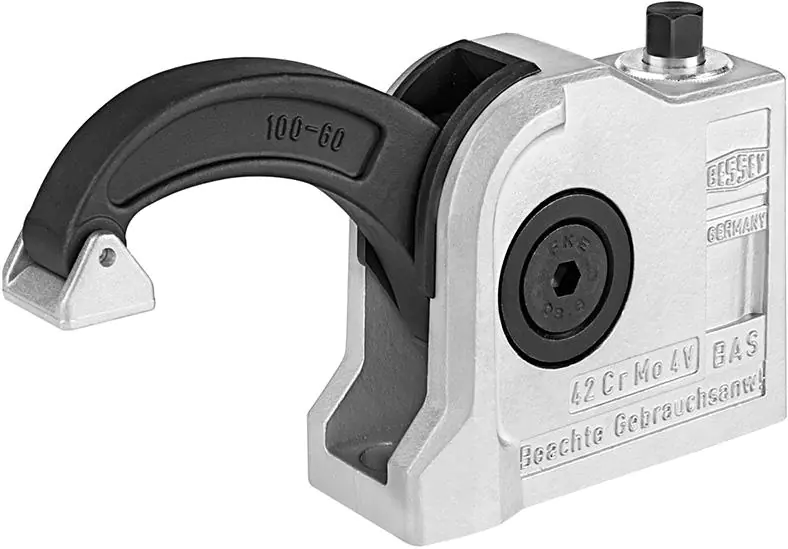

Compact clamping BAS-CB 10-6 BESSEY

€324.05
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
BESSEY
Product code:
BAS-CB10-6 / 4008158021836

Specification

Model:BAS-CB 10-6
Mounting height:97 mm
Outreach:60 mm
With aluminium pressure foot:yes

Compact clamp, with closed mounting hole

Design: compact BAS clamp with compact design (95 x 35 x 78 mm). 30 % lower than comparable models. Fast automatic fastening and loosening. Clamping force up to 16 kN. Replacement of the pressure element is possible without the use of tools thanks to the use of a spring-loaded ball bearing. With polyamide cover to prevent dirt.
Application: for fast and safe clamping of components in machine tools, on measuring tables and in the construction of equipment. Ideal for drilling, reaming, milling, grinding, honing, EDM and testing, etc.
Note: For compensating for large clamping heights, we recommend BASO mounting plinths #SAP#B#2252656#.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
