| Alarm inputs:: | 6 pcs. - NO/NC |
|---|---|
| Binary/analog inputs:: | 2 pcs. |
| Dimensions:: | 87 x 68 x 25 mm |
| Event memory:: | 1000 |
| Form of sending event codes:: | SMS / CLIP / VOICE / E-mail / GPRS |
| Manufacturer / brand:: | ROPAM |
| Number of low-current outputs of oc type:: | 3 pcs. : 700 mA / 30 V DC |
| Operating temperature:: | - 10 ... 55 °C |
| Power:: | 12 V DC - Voltage control < 11 V DC |
| Scales:: | 0.06 kg |
| Selected features:: | 4 controlled outputs via system events, SMS, CLIP, DTMF, RopamBasic, LogicProcessor Power output AUX : 1 A SMS: independent messages for events in the VOICE/CLIP system: independent voice connection for events in the system with voice messages (speech synthesizer, eavesdropping) LogicProcessor: - advanced logic functions, arithmetic functions, counters, time relays GPRS monitoring: cooperation with RMS / Kronos NET station / server - encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation with SMS/VOICE notification mode FAC input for AC voltage control (e.g. alarm control panel) Remote module software update - micro USB |
| Supported languages:: | Polish |
| Telephone notification numbers:: | 8 |
| Warranty:: | 2 years |

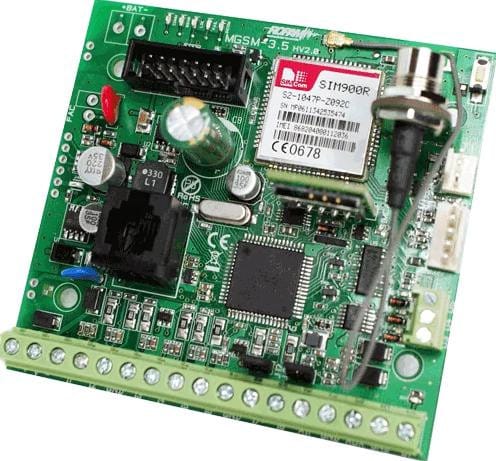

A device dedicated to integration with alarm control panels, controllers, relays, etc., through digital inputs and outputs
The terminal has analog inputs to which you can connect, for example, a temperature sensor and LogicProcessor with which advanced logical operations are performed, allowing to implement simple home automationIn combination with a built-in GSM module, thanks to which it is possible to remotely control, notification, the device has a very wide application
